8PCS Ratchet Crimping Tool Kit with Interchangeable Dies helps you prepare wire and crimp several compatible terminal types with one quick-change ratchet handle. The HX1706 kit includes one crimper, one wire stripper, six interchangeable dies, and a storage case; choose the die for the terminal construction and wire size before crimping.

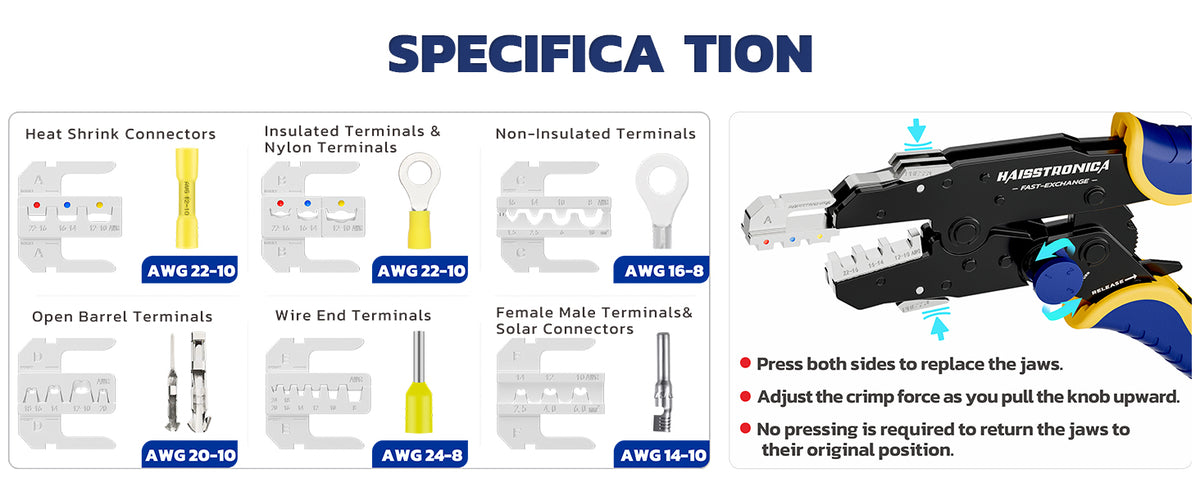

| Terminal Type | Supported AWG | Die/Crimp Profile | Ratchet/Adjustment | Included Parts |
|---|---|---|---|---|
| Heat-shrink connectors | 22-10 | A - heat-shrink terminal profile | Adjustable ratchet handle | Die A |
| Insulated and nylon terminals | 22-10 | B - insulated-terminal profile | Adjustable ratchet handle | Die B |
| Non-insulated terminals | 16-8 | C - non-insulated-terminal profile | Adjustable ratchet handle | Die C |
| Open-barrel terminals | 22-10 | D - open-barrel profile | Adjustable ratchet handle | Die D |
| Wire-end terminals / ferrules | 24-8 | E - wire-end terminal profile | Adjustable ratchet handle | Die E |
| Compatible solar connector contacts | 14-10 | F - solar contact profile | Adjustable ratchet handle | Die F |

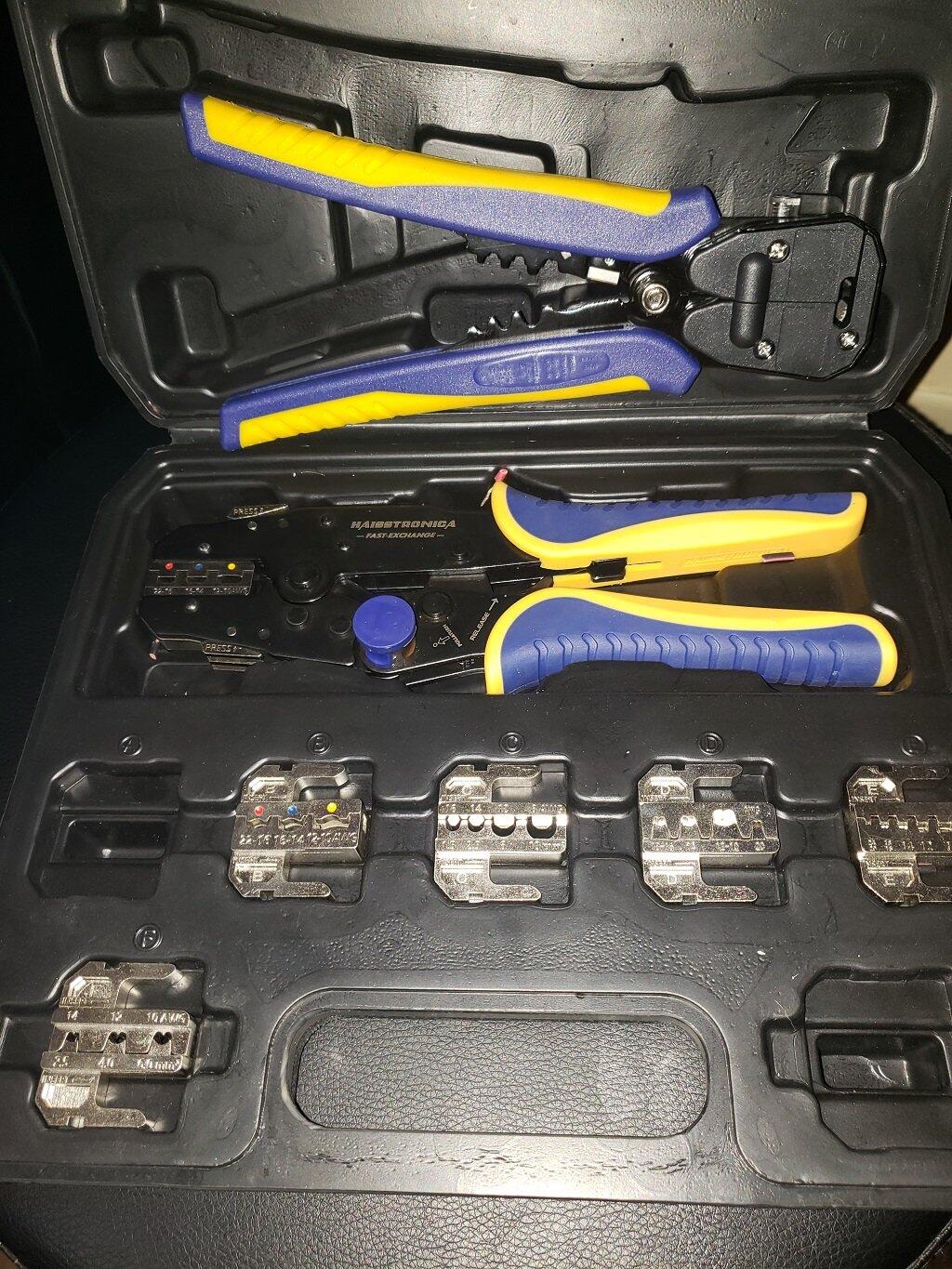

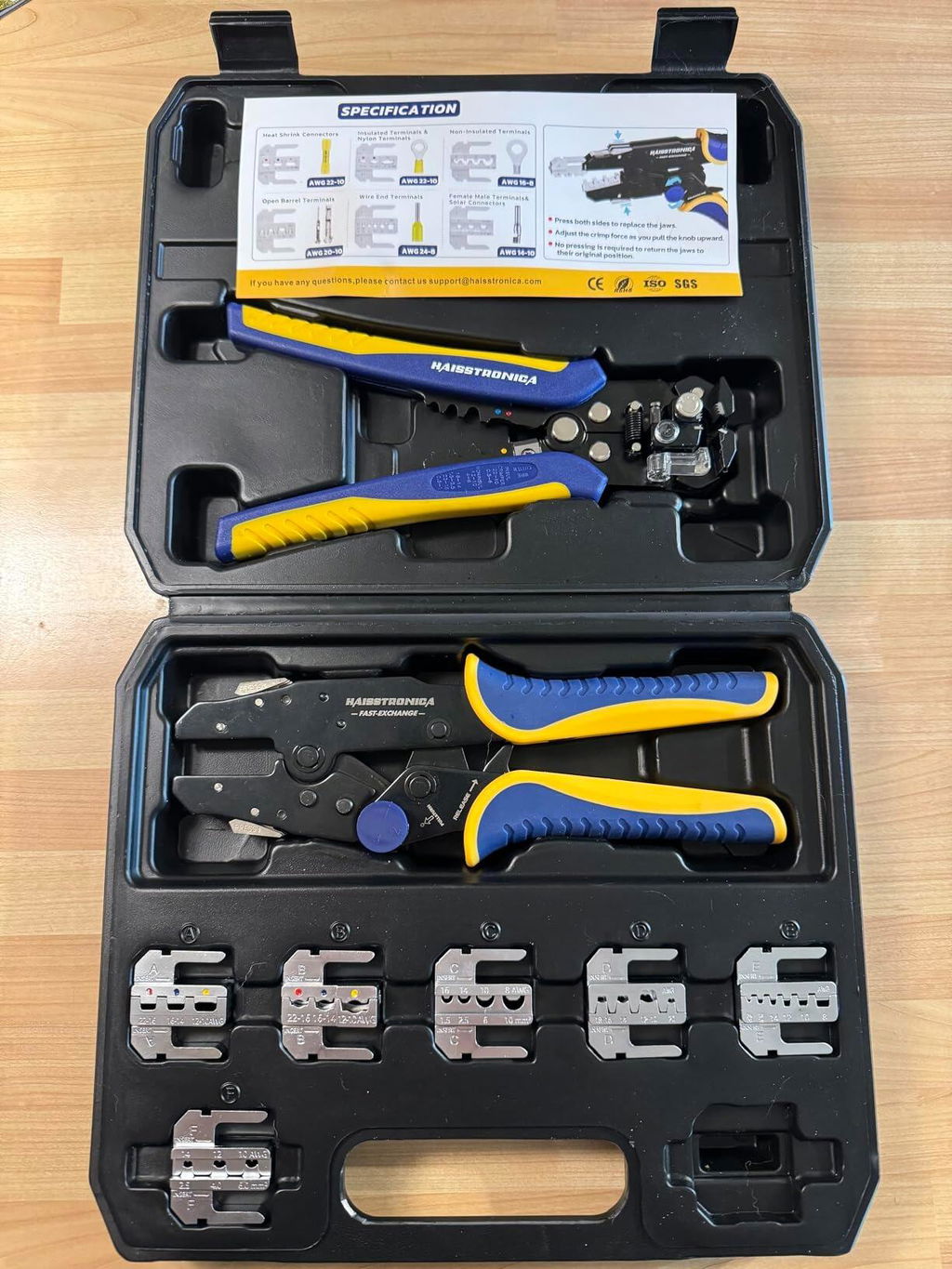

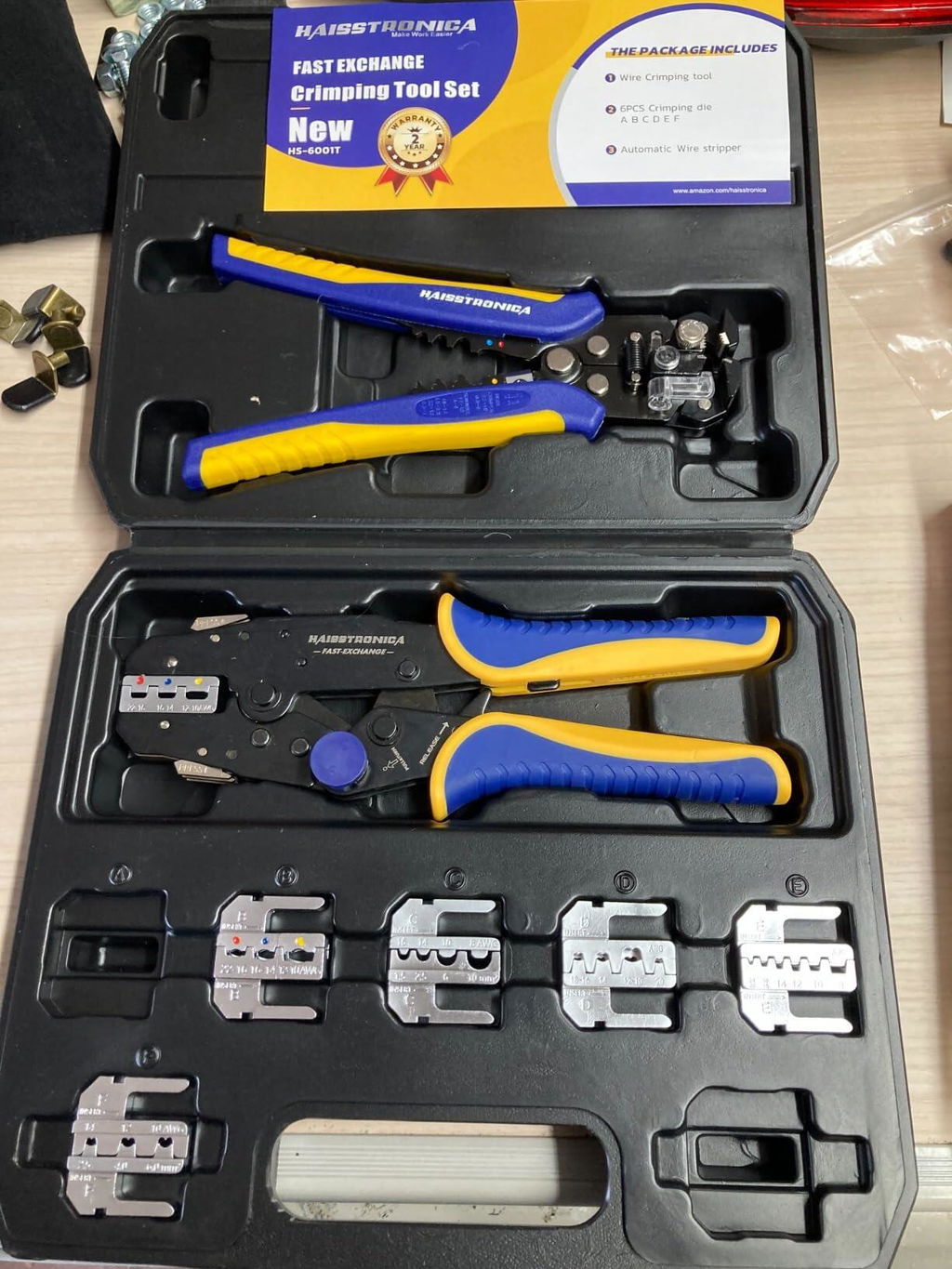

Complete kit: 1 ratcheting crimper, 1 wire stripper, and 6 dies (A-F), plus a storage case. The eight-piece count covers the two tools and six dies. AWG ranges above are from this product's die chart; confirm the markings on the supplied die and the terminal manufacturer's requirements before use.
