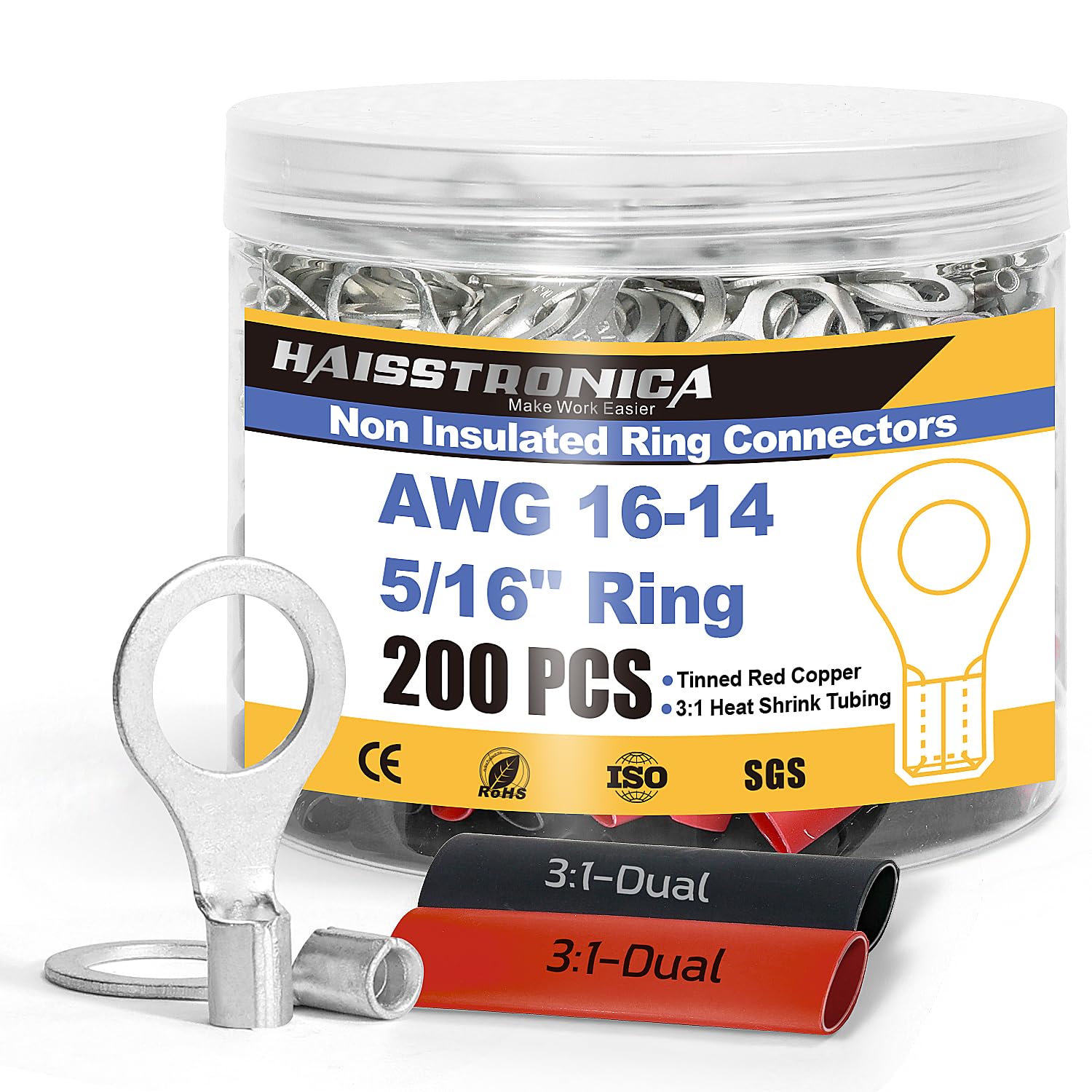

Ring non insulated connector lugs in canister with heat shrink tubing, suited for marine, trailer, and vehicle wiring.

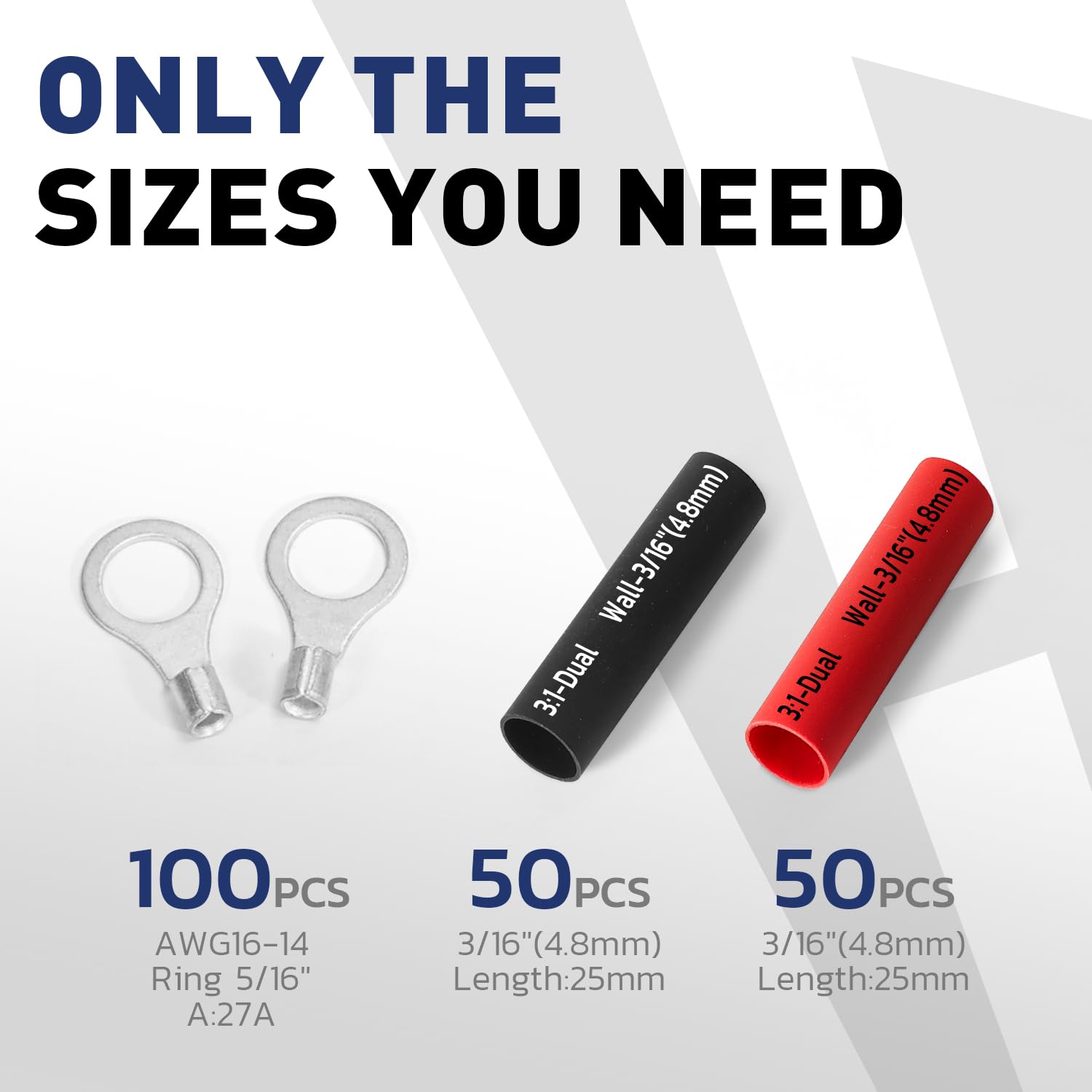

Uninsulated ring terminals with black and red heat shrink sleeves, sizes for automotive battery wiring upgrades

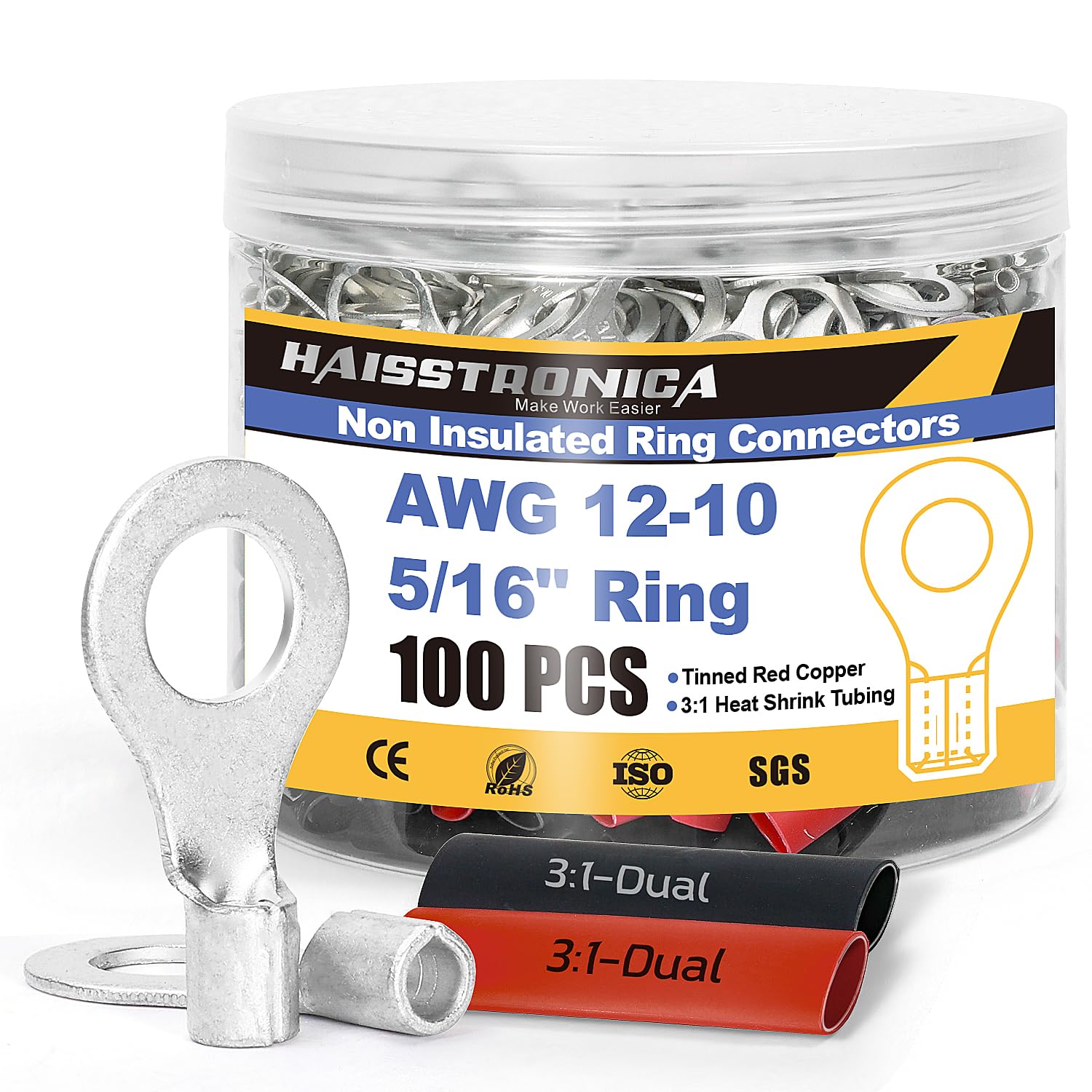

AWG 12-10 5/16 inch ring connectors in jar with shrink sleeves, suitable for crimping non insulated wire on vehicles.
Chart of ring terminals with black and red heat shrink pieces, labeled only the sizes you need, for uninsulated wire.
Instruction for crimping with non insulated terminal connectors, inserting wire then shrinking sleeve over joint.
Non insulated electrical connectors with black and red heat shrink sleeves, sized for AWG16-14 automotive ring wiring
AWG 12-10 ring lugs supplied in jar, labeled non insulated, plus red and black heat shrink tubing for cable ends.
Assortment chart listing fork lugs, butt connectors and tubing by gauge as a non insulated terminal assortment.
Non-insulated ring lugs with black and red heat shrink tubing, sized for AWG12-10 battery cables and automotive wiring

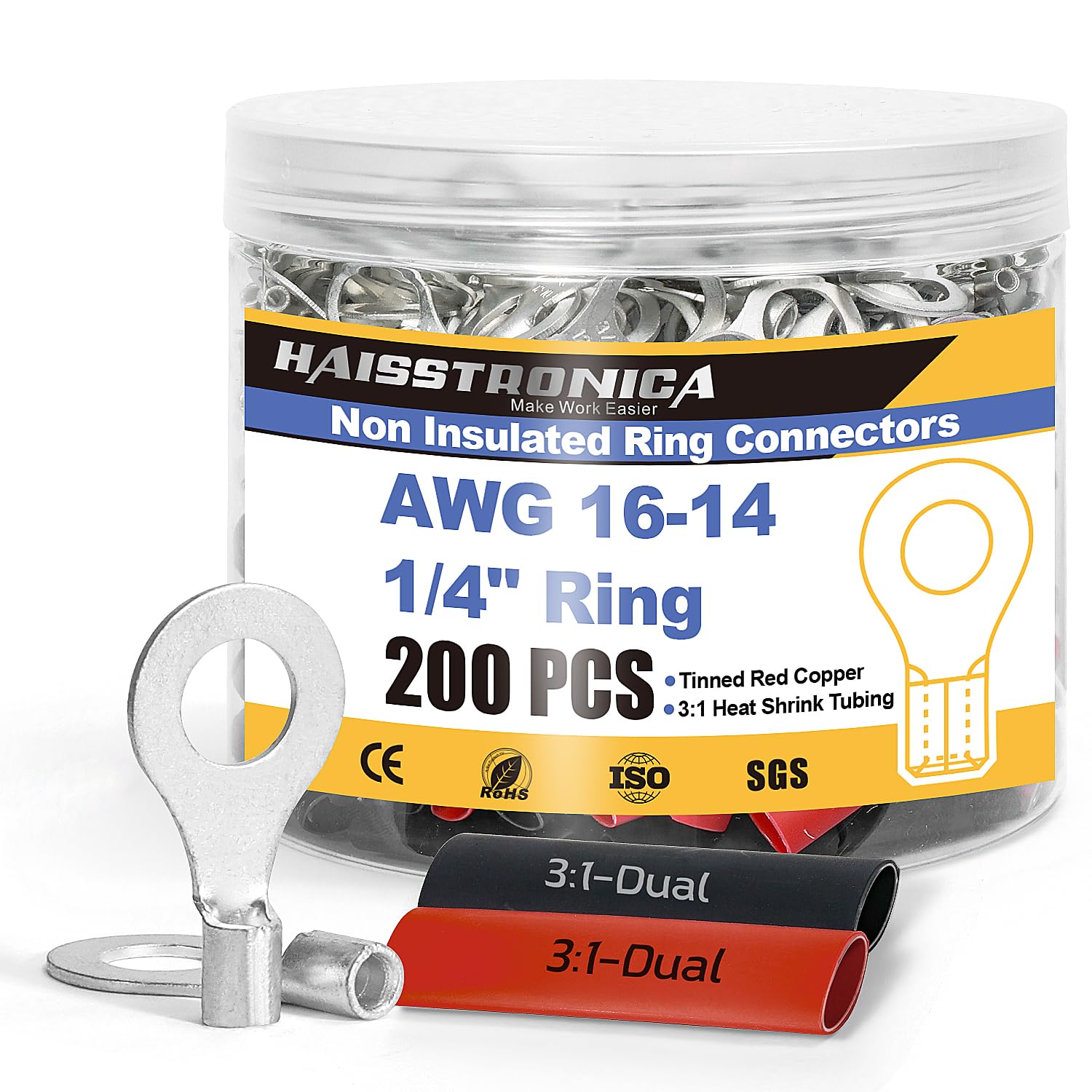

Haisstronica jar of tinned copper non insulated wire ring terminals with red and black heat shrink tubing for repairs
Non insulated ring lugs with red and black heat shrink sleeves, showing AWG16-14 sizes for trailer and auto wiring

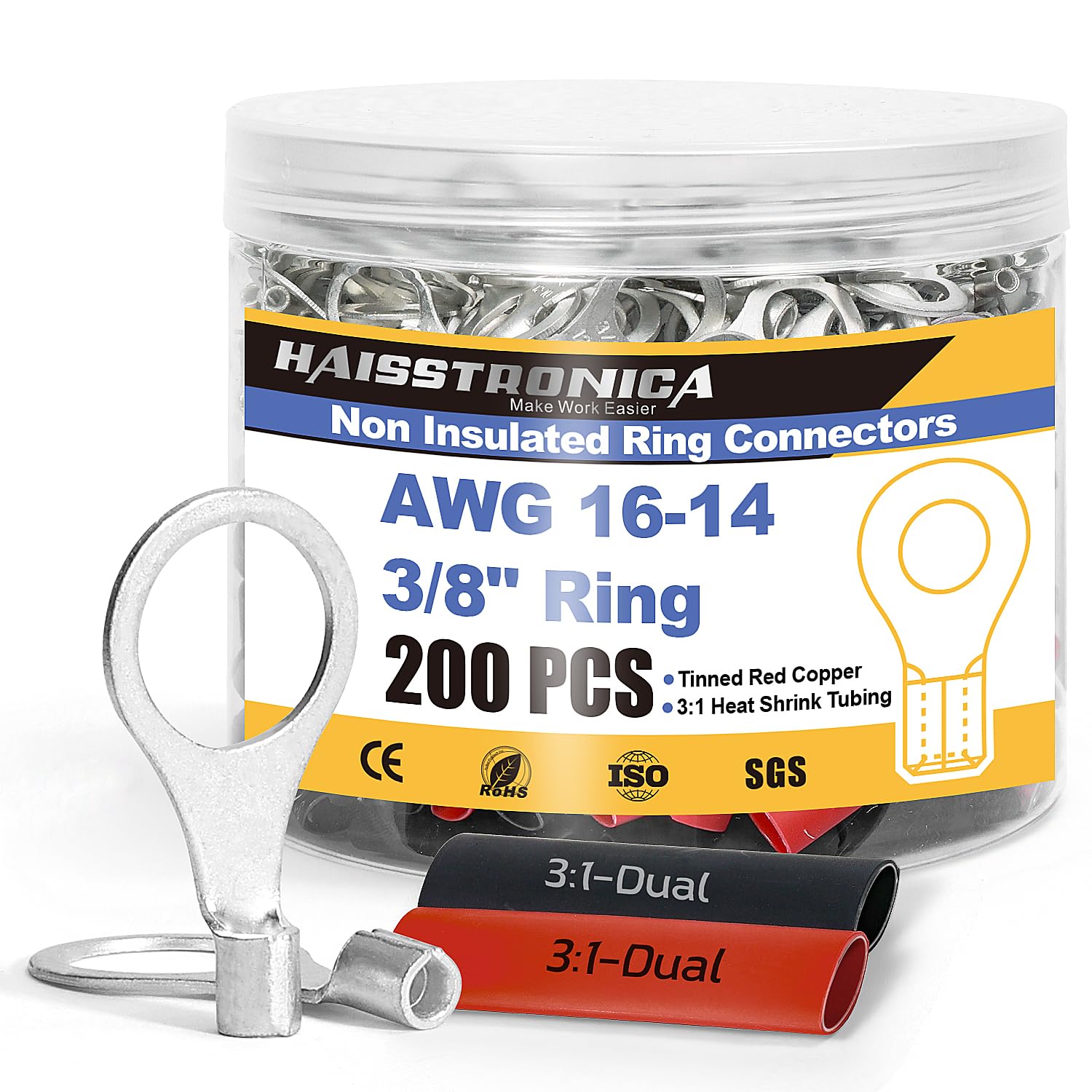

Haisstronica crimpers non-insulate ready fork connector jar with 200pcs uninsulated lugs and heat shrink tubing
How-to diagram using crimper and heat gun on a non insulated terminal connector, showing contact and sealed wire end.

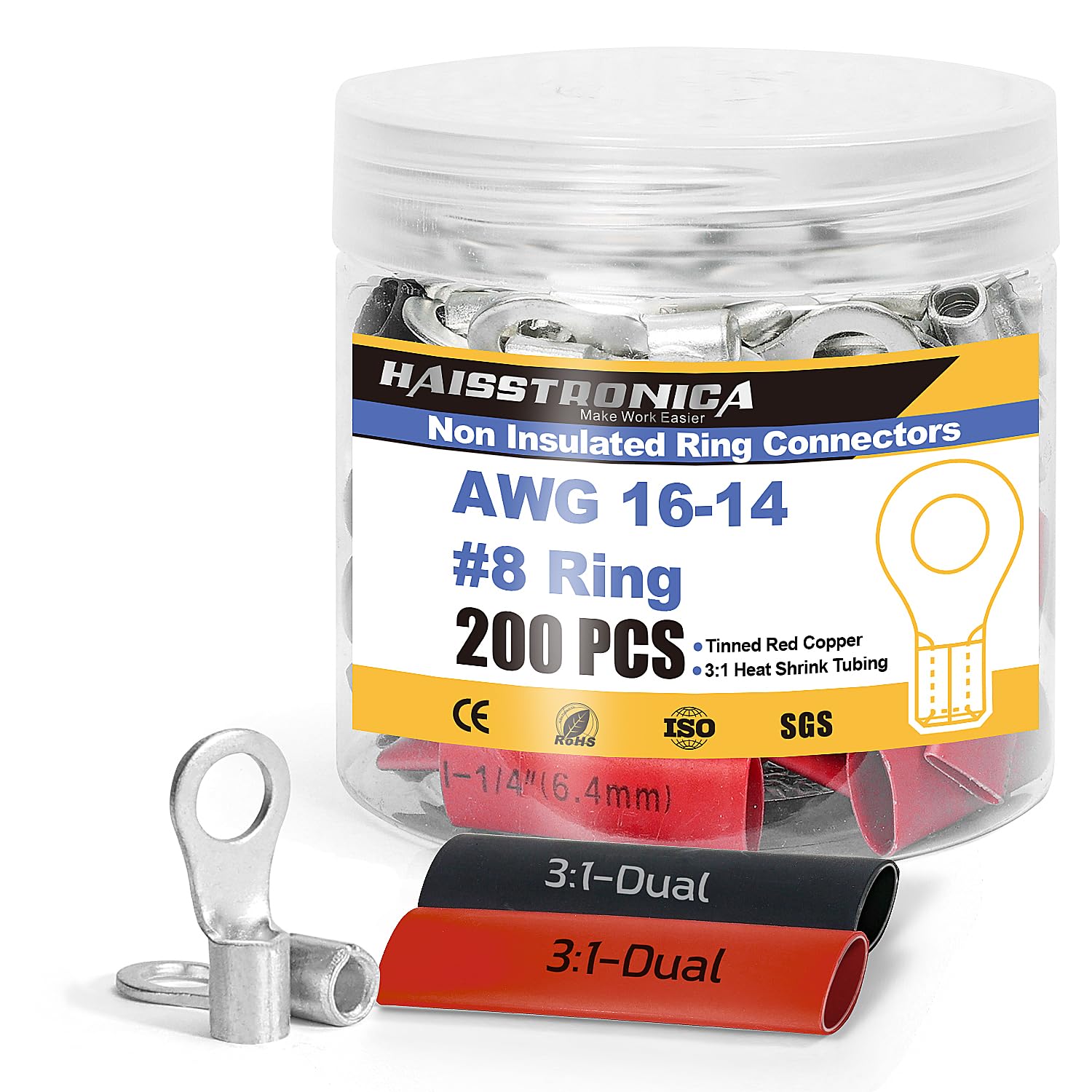

Haisstronica uninsulated terminal kit jar with 200pcs tinned copper ring lugs plus red and black heat shrink tubing
display grid of haisstronica non insulated terminal assortment with sizes, heat shrink pieces and labeled quantities
Haisstronica non insulated terminal assortment kit with sorted copper connectors and heat shrink tubes for repairs
Assorted copper non insulated butt splice connectors arranged by AWG size for crimping and extending battery cables

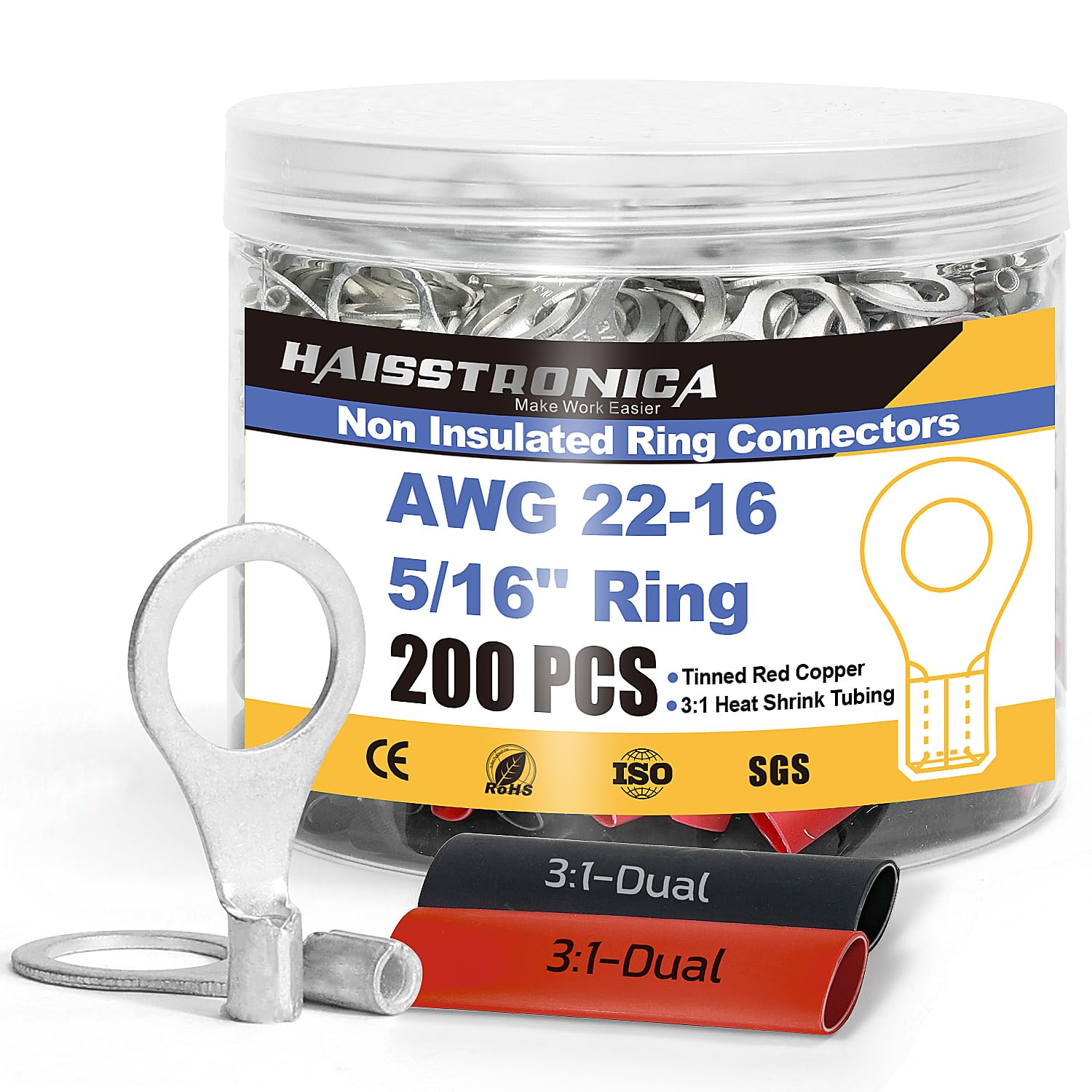

AWG 22-16 5/16 inch ring connectors with black and red heat shrink, non insulated wire terminal kit stored in clear jar.
Non insulated connector kit with metal ring lugs plus red and black heat shrink tubes for sealing automotive power leads

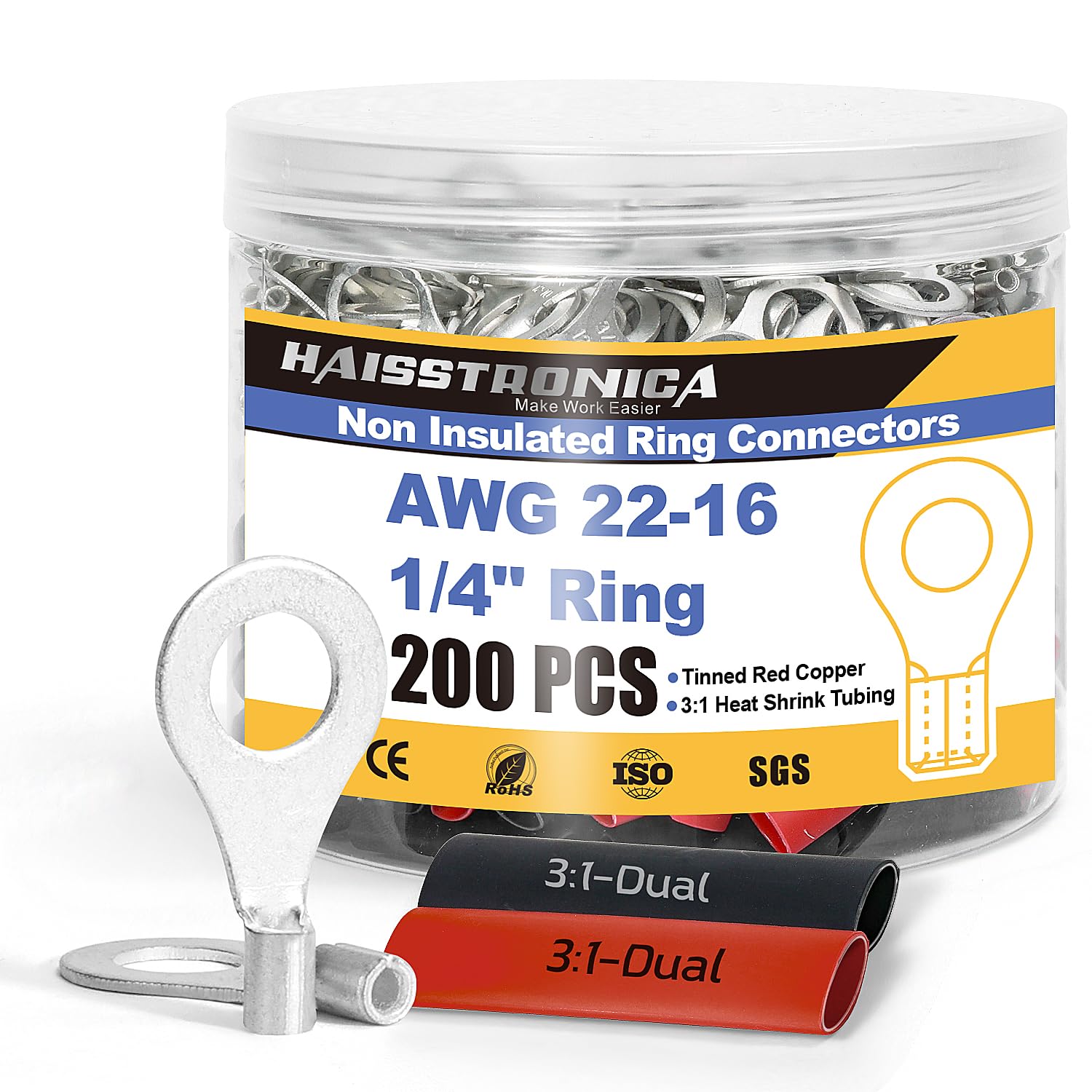

Jar holds haisstronica ring lugs and loose heat shrink pieces, forming a non insulated terminal kit for wiring jobs
Uninsulated wire ring lugs with black and red heat shrink tubes, sized for AWG22-16 lighting and accessory circuits
Jar of AWG 22-16 3/8 inch ring uninsulated wire terminals with black and red heat shrink tubing for reliable wiring.
Image showing ring terminals and heat shrink sleeves under only the sizes you need, highlighting non insulated parts.
Ring lugs and heat shrink sleeves before jar, part of Haisstronica range of uninsulated terminals for electrical wiring.
Ring terminals with dual wall shrink sleeves, only the sizes you need layout for uninsulated terminals on wiring jobs.
Image of assorted ring terminals and shrink tubes under only the sizes you need banner, featuring non-insulated pieces.
Three-step diagram of ratchet crimper for uninsulated terminals, showing crimp, finished joint, then tubing heated.
heat shrunk joints on colored leads, demonstrating wire crimper non insulated performance on copper butt splices

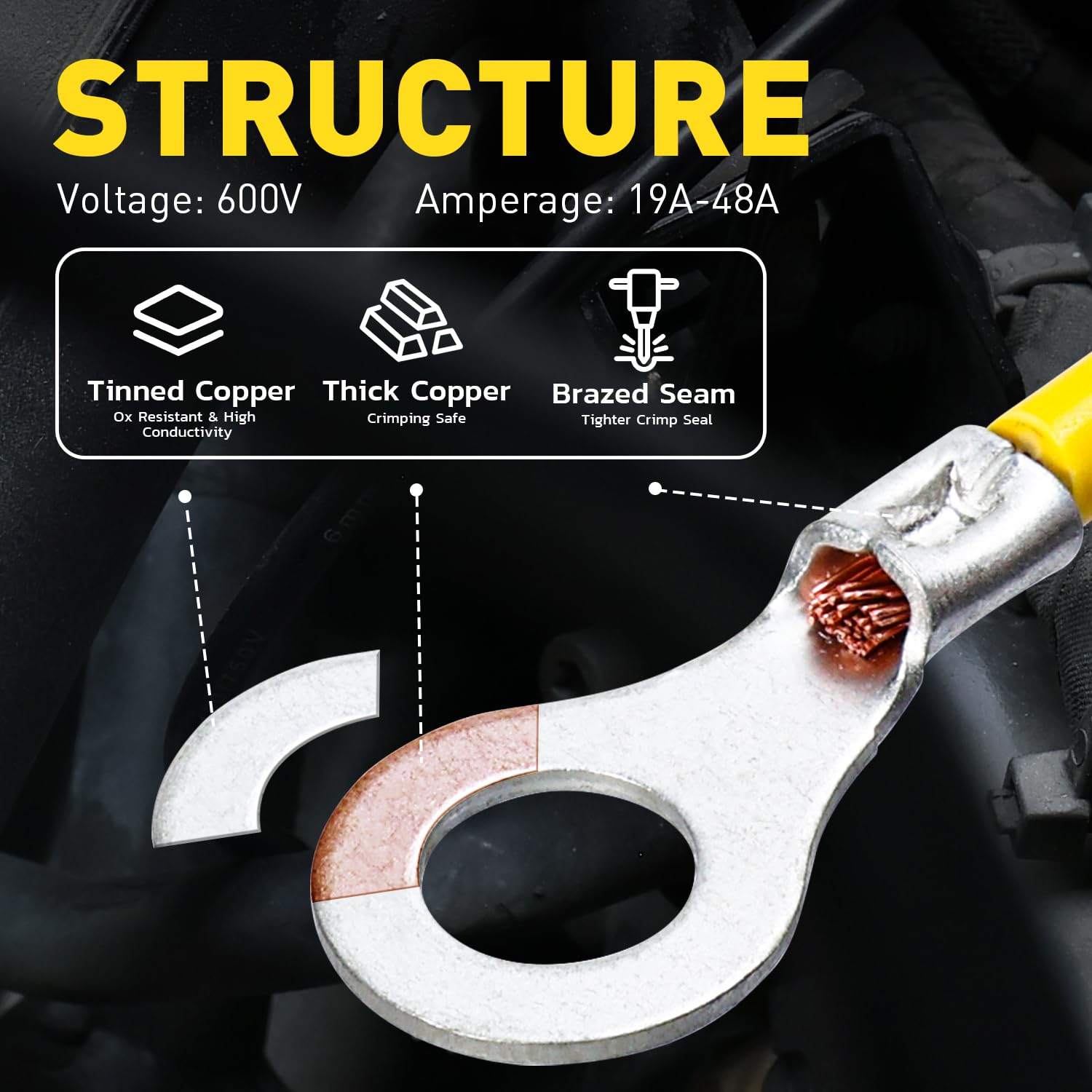

Ring style non insulated connector cutaway shows thick copper barrel and brazed seam for reliable automotive wiring
Three step use graphic showing crimping, finished joint and heat shrink over cable in a non insulated terminal kit.
haisstronica uninsulated ring terminals with red heat shrink displayed for marine, diy and home electrical wiring

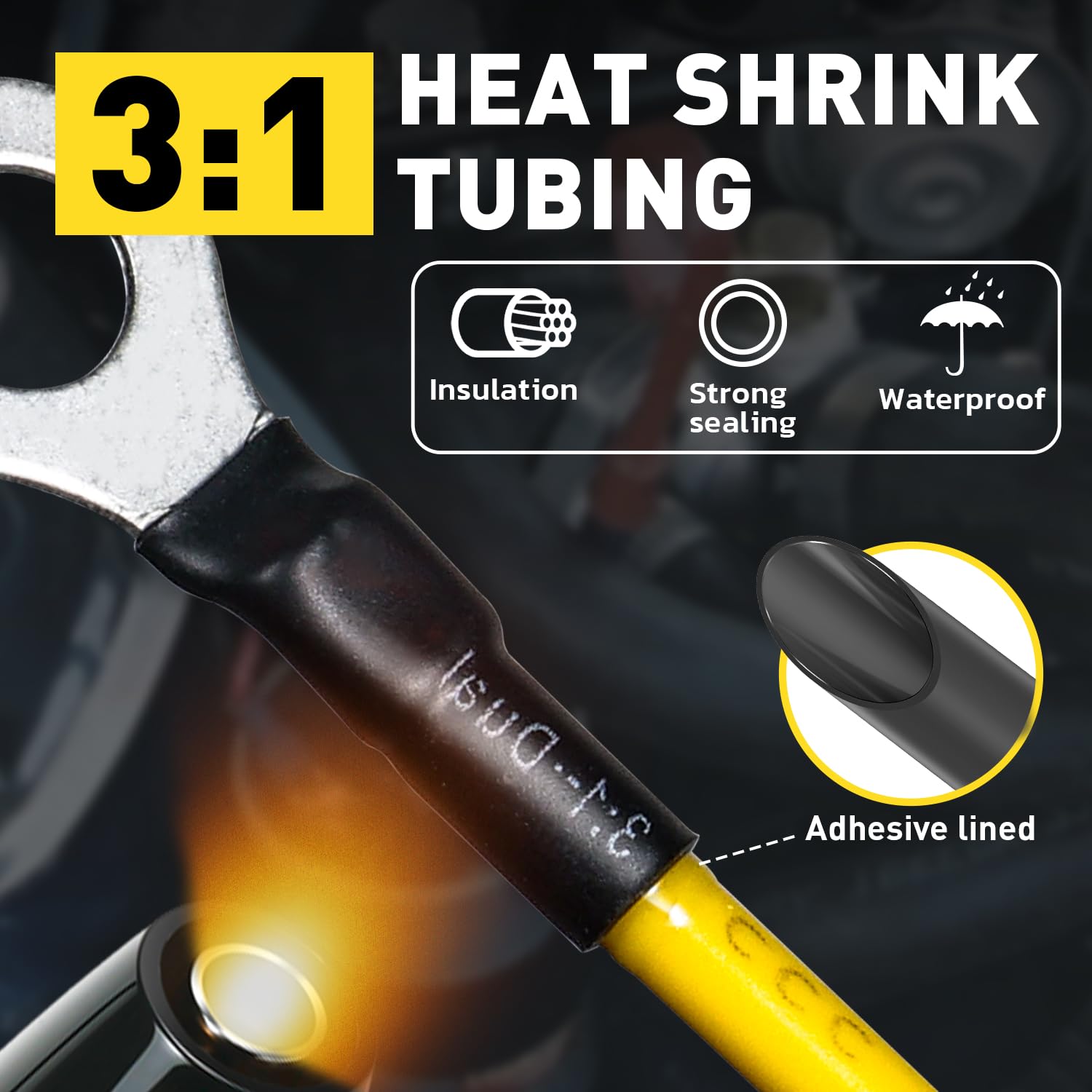

ring lug crimped with black tubing, showing non insulated terminal connectors ready for automotive or marine circuits

Non-Insulated Ring Terminals with 3:1 Heat Shrink Tubing Kit

$12.99 USD
No reviews
No reviews
SKU: HX2020
Coupon strip showing 5 percent and 10 percent discounts by order value
Size:AWG 12-10
Style:Ring 5/16"
Quantity:
Free Returns Within 30 Days
Free Shipping on All Orders
Warranty up to 24 Months
Visa Mastercard PayPalAmerican Express DiscoverDiners Club
In stock

Secure Payment via:

afterpay' paypal visa master maestro jcb american express diners club applepay discover klarna googlepay

🚚 Free Shipping

⏱ Delivery in 3–5 Business Days

↩️ 30-Day Free Returns

Non-Insulated Ring Terminals with 3:1 Heat Shrink Tubing Kit pair tin-plated pure-copper ring terminals with correctly sized dual-wall heat-shrink sleeves. After crimping, the tubing adds insulation, strain relief, corrosion protection, and a tighter seal for automotive, marine, trailer, appliance, and electrical wiring.

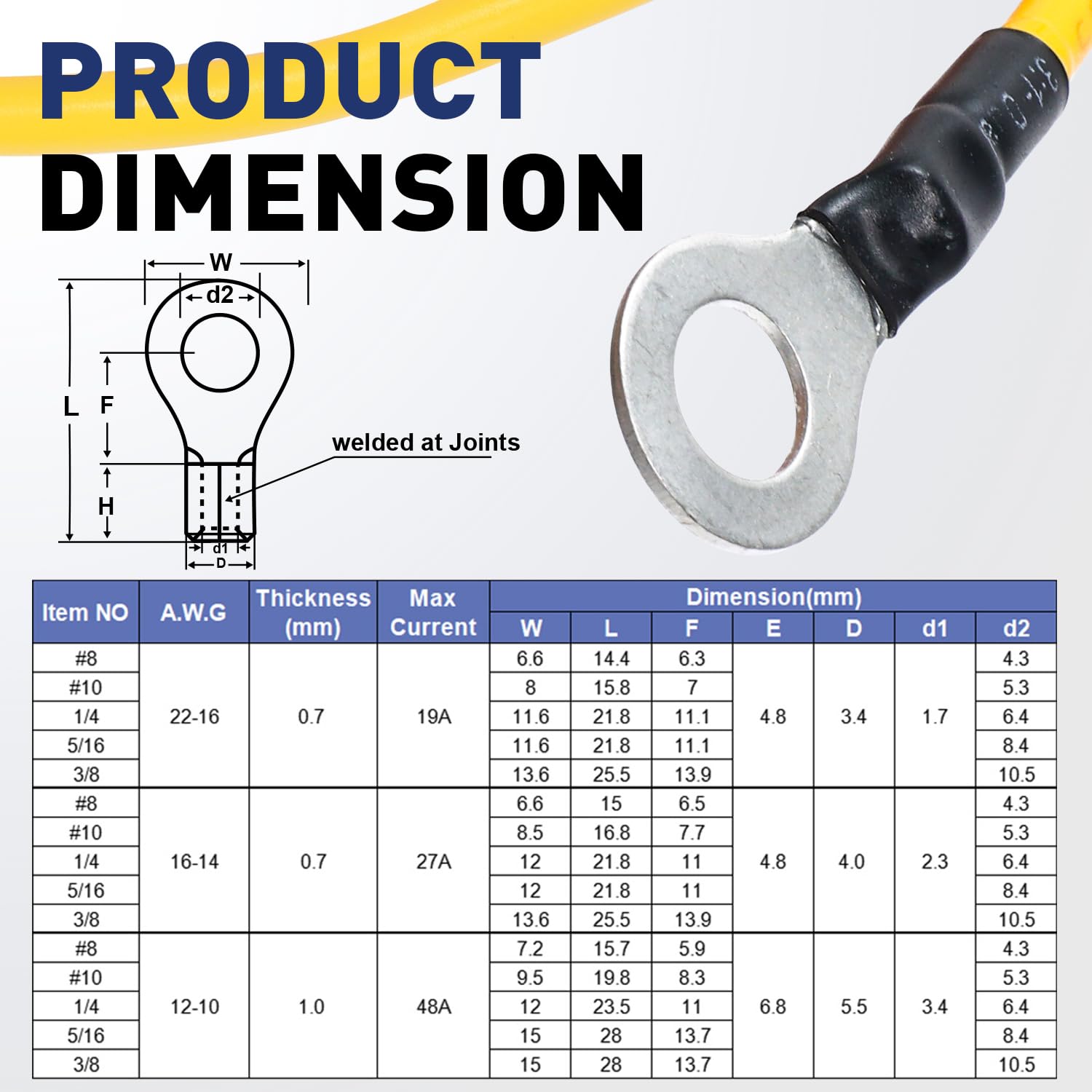

Terminal & Tubing Selection Guide
Wire Size Ring / Stud Size Terminal Quantity Rated Current Heat-Shrink Tubing Tubing Quantity Terminal Material SKU
AWG 12-10 5/16 inch 50PCS 48A 1/4 in (6.4 mm) × 27 mm, 3:1 dual-wall 25 red + 25 black Tin-plated pure copper, brazed seam HX2020
AWG 12-10 #8 50PCS 48A 1/4 in (6.4 mm) × 27 mm, 3:1 dual-wall 25 red + 25 black Tin-plated pure copper, brazed seam HX2017
AWG 16-14 5/16 inch 100PCS 27A 3/16 in (4.8 mm) × 25 mm, 3:1 dual-wall 50 red + 50 black Tin-plated pure copper, brazed seam HX2013
AWG 16-14 1/4 inch 100PCS 27A 3/16 in (4.8 mm) × 25 mm, 3:1 dual-wall 50 red + 50 black Tin-plated pure copper, brazed seam HX2012
AWG 16-14 3/8 inch 100PCS 27A 3/16 in (4.8 mm) × 25 mm, 3:1 dual-wall 50 red + 50 black Tin-plated pure copper, brazed seam HX2014
AWG 16-14 #8 100PCS 27A 3/16 in (4.8 mm) × 25 mm, 3:1 dual-wall 50 red + 50 black Tin-plated pure copper, brazed seam HX2010
AWG 16-14 #10 100PCS 27A 3/16 in (4.8 mm) × 25 mm, 3:1 dual-wall 50 red + 50 black Tin-plated pure copper, brazed seam HX2011
AWG 22-16 5/16 inch 100PCS 19A 3/16 in (4.8 mm) × 25 mm, 3:1 dual-wall 50 red + 50 black Tin-plated pure copper, brazed seam HX2006
AWG 22-16 1/4 inch 100PCS 19A 3/16 in (4.8 mm) × 25 mm, 3:1 dual-wall 50 red + 50 black Tin-plated pure copper, brazed seam HX2005
AWG 22-16 3/8 inch 100PCS 19A 3/16 in (4.8 mm) × 25 mm, 3:1 dual-wall 50 red + 50 black Tin-plated pure copper, brazed seam HX2007
AWG 22-16 #8 100PCS 19A 3/16 in (4.8 mm) × 25 mm, 3:1 dual-wall 50 red + 50 black Tin-plated pure copper, brazed seam HX2003

Each selected variant contains one terminal size plus matching red and black heat-shrink sleeves. Availability can vary by AWG and ring size.

Applications

Use these kits for battery and grounding leads, automotive and trailer accessories, marine equipment, appliances, control panels, and workshop repairs where the wire gauge and stud size match. The bare terminal is crimped first; the included 3:1 dual-wall tubing is then positioned over the barrel to add insulation, strain relief, and environmental protection.

How to Choose
  • Match the terminal barrel to the conductor: AWG 22-16, 16-14, or 12-10.
  • Measure the screw or stud and select #8, #10, 1/4 inch, 5/16 inch, or 3/8 inch as offered for that AWG.
  • Confirm the selected variant's terminal and tubing quantities in the table.
  • Use a die intended for non-insulated closed-barrel terminals; do not crimp with an open-barrel profile.

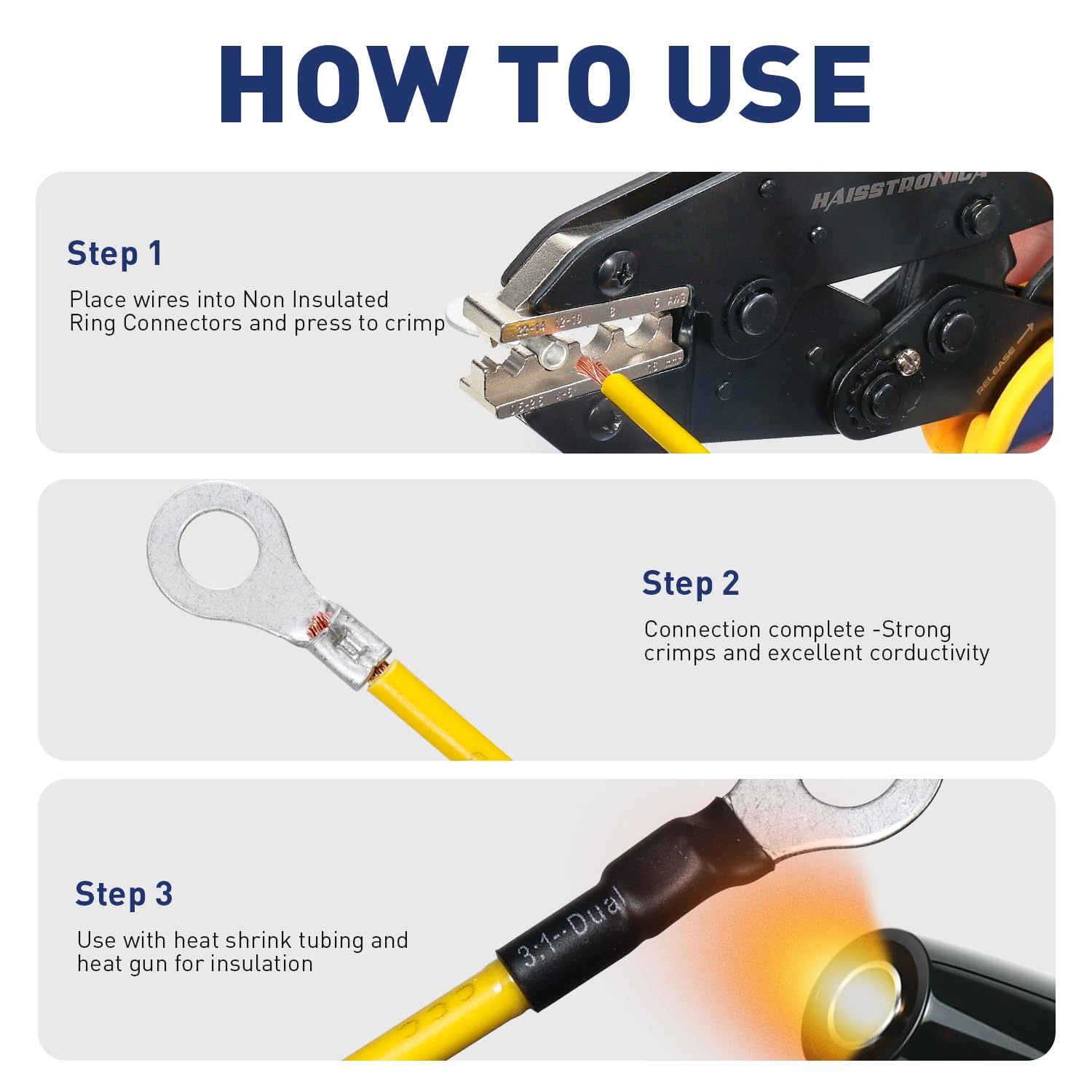

How to Crimp and Heat Shrink
  1. Disconnect power and slide the matching heat-shrink tube onto the wire.
  2. Strip only enough insulation for the terminal barrel and insert the conductor fully.
  3. Crimp the brazed barrel with the correct non-insulated terminal die.
  4. Inspect and pull-test the crimp before sealing it.
  5. Center the tubing over the barrel and wire insulation, then apply controlled heat while rotating the connection.
  6. Stop when the 3:1 tubing has fully recovered and sealed; allow it to cool before use.
Frequently Asked Questions

Are the ring terminals already insulated?

No. The terminals are supplied as non-insulated tin-plated copper terminals. Install the included 3:1 tubing after crimping to insulate and seal the barrel.

How do I select the correct ring terminal?

Match both the conductor gauge and the stud diameter. The barrel must fit the wire, and the ring opening must fit the screw or stud.

How many terminals and heat-shrink tubes are included?

AWG 12-10 variants include 50 terminals and 50 tubes. AWG 16-14 and AWG 22-16 variants include 100 terminals and 100 tubes.

What material are the terminals made from?

They are made from pure copper with a tin-plated, corrosion-resistant surface and a brazed seam.

Which crimping profile should I use?

Use a die designed for non-insulated closed-barrel terminals and sized to the selected AWG. Do not use an open-barrel die.

Browse the Non-Insulated Ring Terminals Collection, review the non-insulated terminal crimping guide, pair the kit with a compatible non-insulated terminal crimper, or use a 350W mini heat gun for the tubing.
