Waterproof Wiring

Waterproof Wiring protects low-voltage electrical repairs from moisture, corrosion, vibration, and road or marine exposure by combining sealed connectors, adhesive-lined heat-shrink tubing, and the correct crimping and heating tools.

Applications, Selection & Installation

Applications

Use waterproof wiring products for automotive engine bays, trailers, boats, outdoor equipment, landscape lighting, and other low-voltage repairs exposed to spray, humidity, dirt, or vibration. Do not use a connector outside its voltage, temperature, wire-size, or immersion rating.

How to Choose

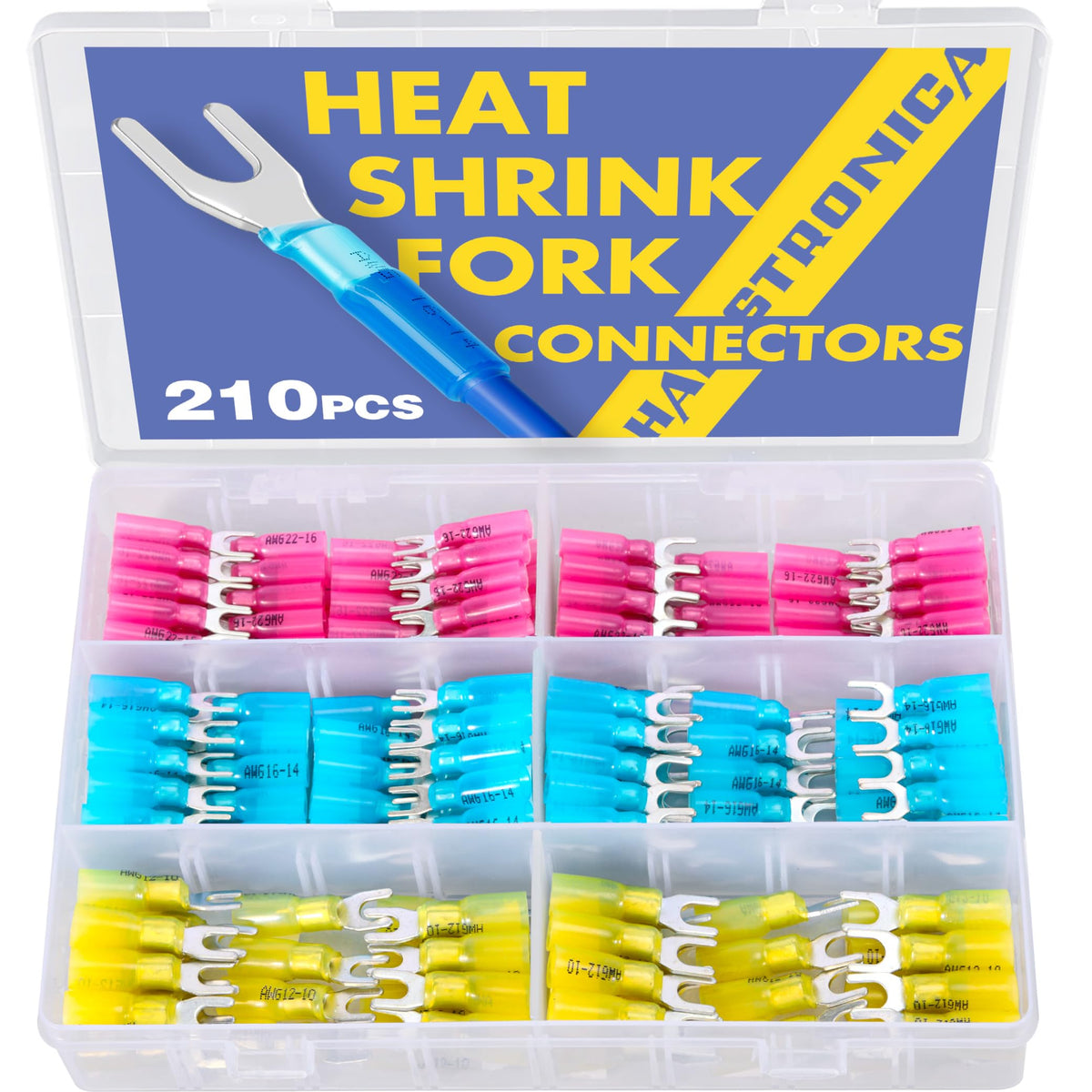

Match the connector or terminal style to the joint: splice, ring, spade, fork, or bullet.
Match the terminal’s AWG range to the conductor, not the outside insulation diameter.
For ring terminals, confirm the stud size before choosing the pack.

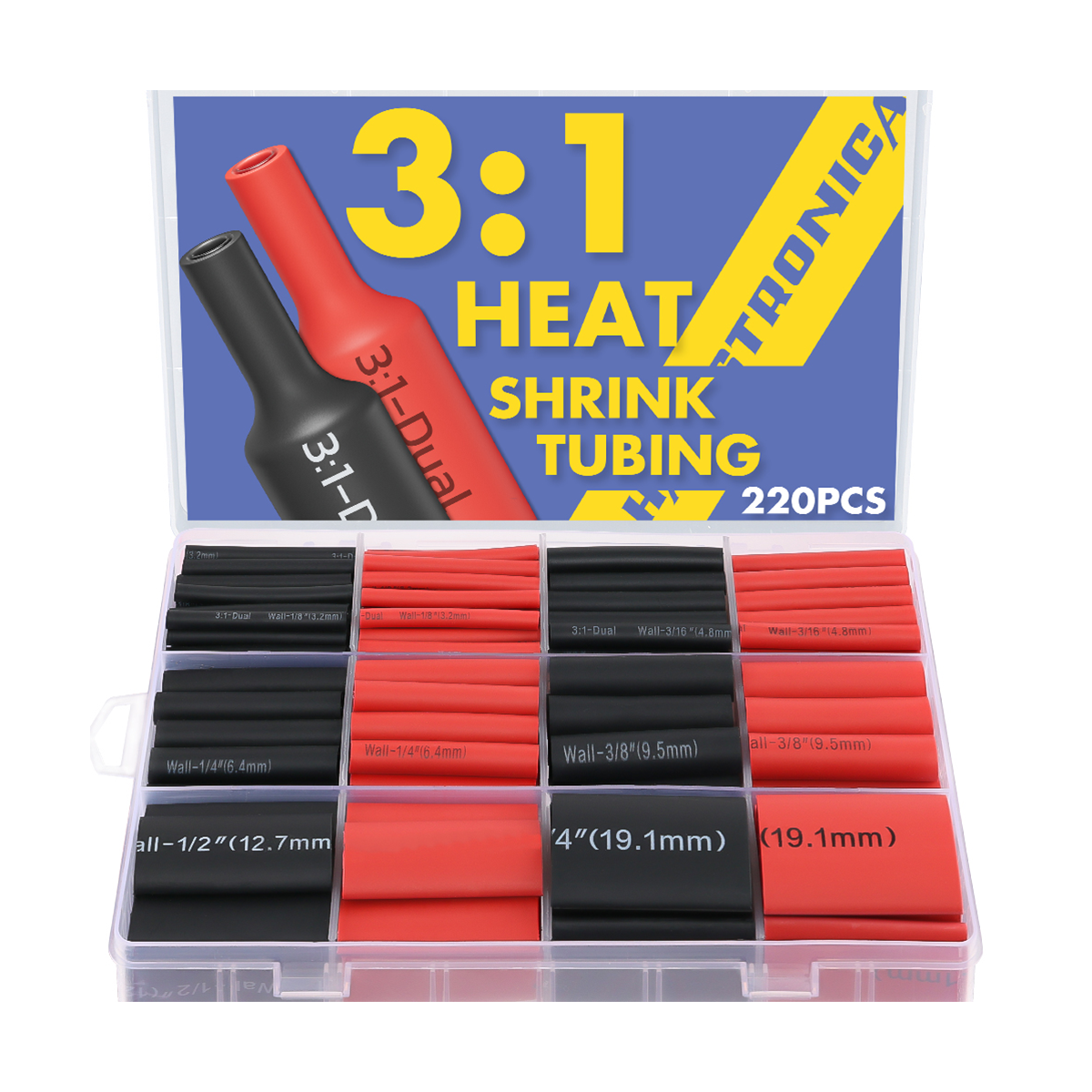

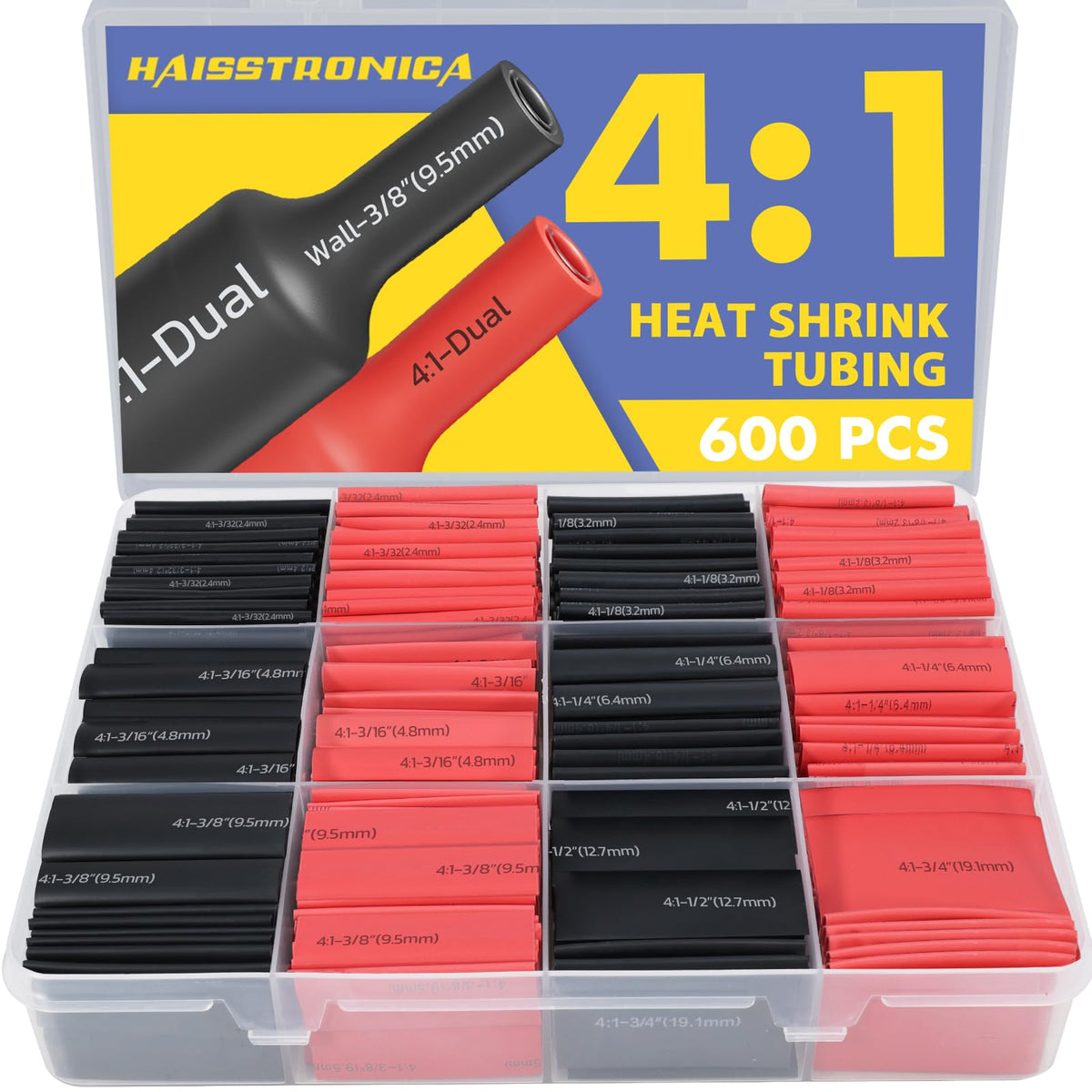

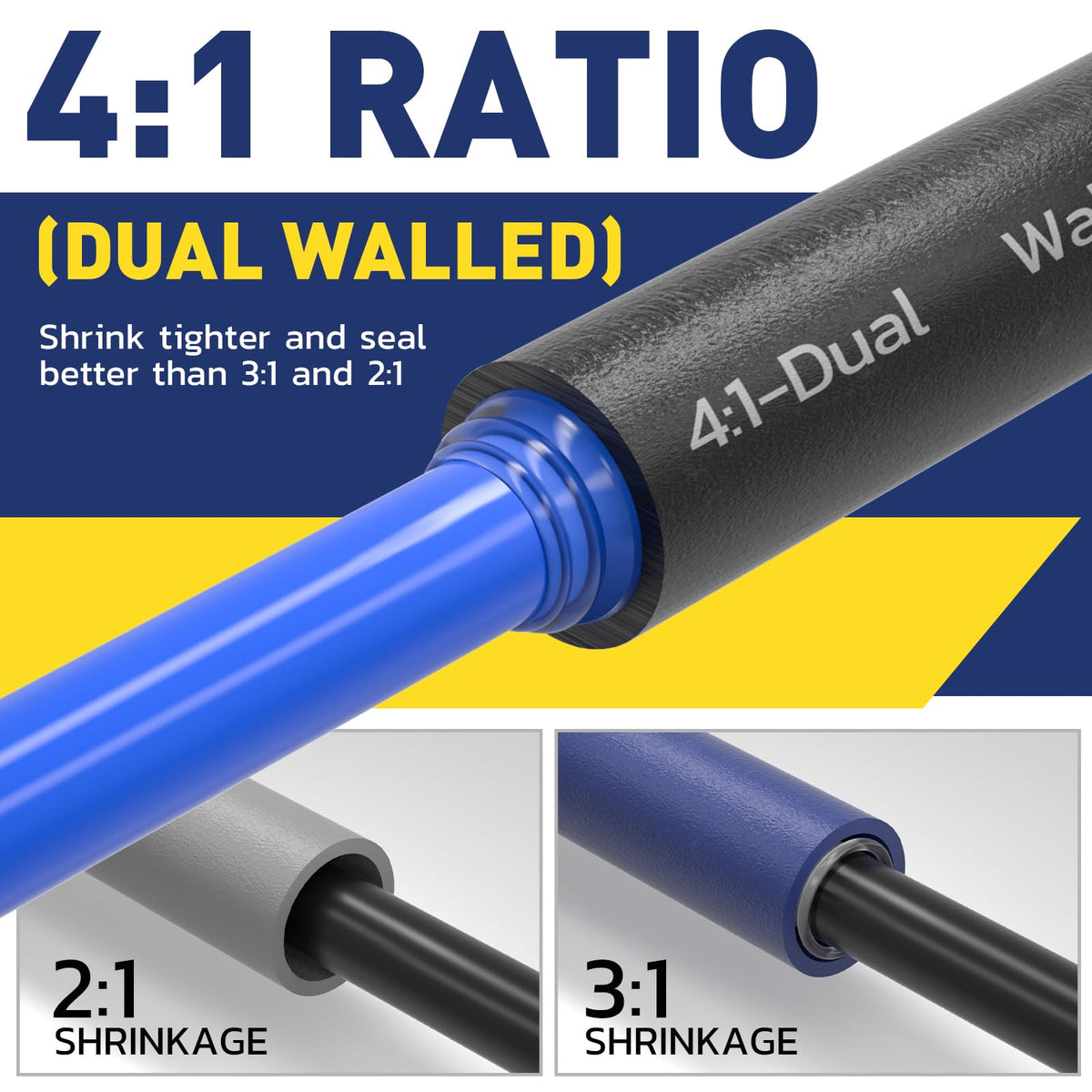

Choose adhesive-lined heat shrink or solder-seal splices when moisture sealing is required.
Use a crimp profile and heat source specified for the selected connector.

How to Use

Disconnect power and cut back to clean, corrosion-free copper.
Strip only the length required by the connector and insert the conductor fully.
Crimp with the correct die and perform a firm pull test.
For heat-shrink or solder-seal products, apply even heat from the center outward until the seal is complete.
Let the joint cool, then inspect it before restoring power.

Compare by repair type: heat shrink wire connectors, solder seal wire connectors, ring connectors, and waterproof heat shrink tubing.

Waterproof Wiring FAQ

How do I match ring terminal stud size?

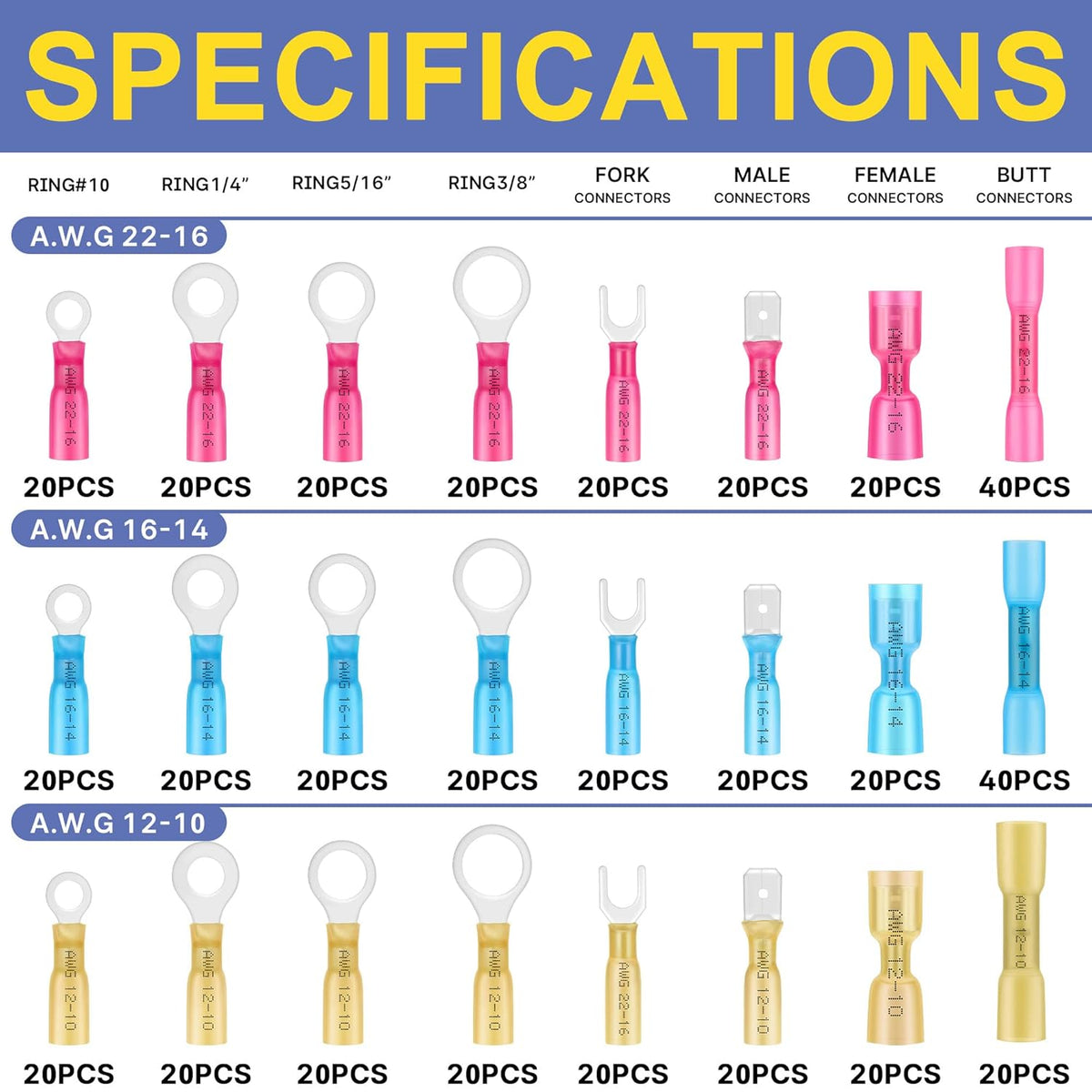

Measure the stud or bolt diameter and choose the ring opening that fits over it without excessive play. Common options in this collection include #10, 1/4 inch, 5/16 inch, and 3/8 inch; confirm the exact stud size shown on the product page before ordering.

Which AWG ring terminal do I need?

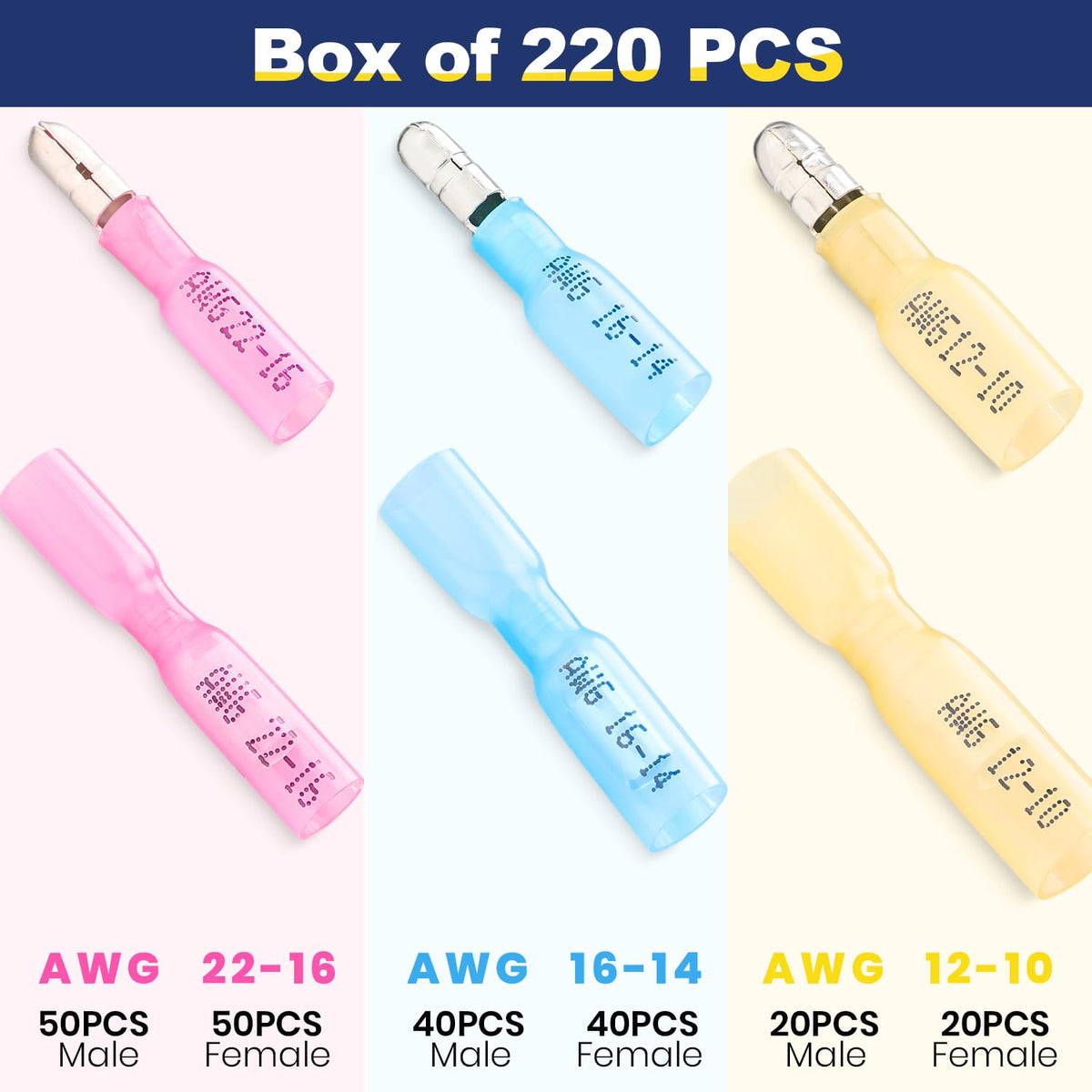

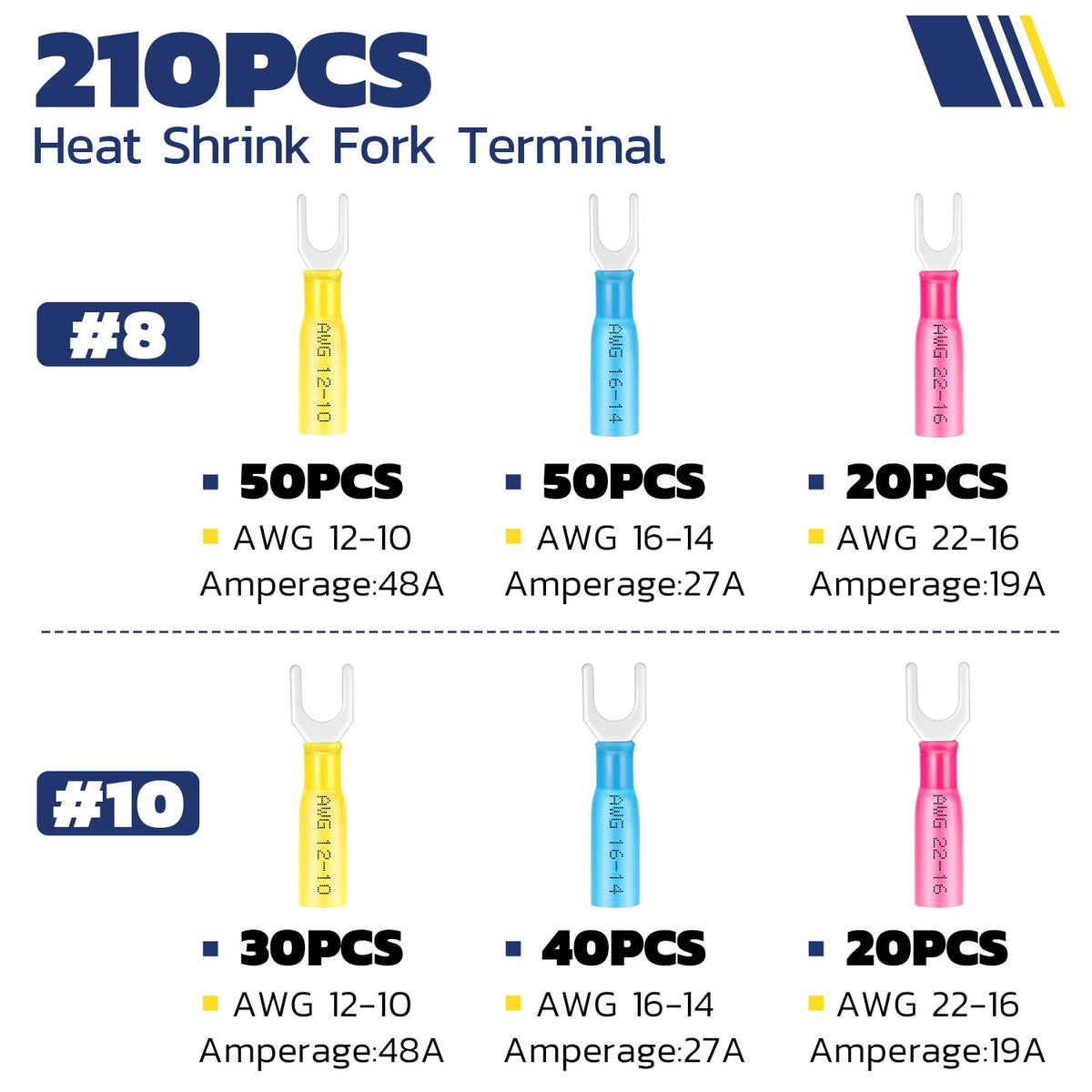

Match the terminal to the conductor’s actual gauge. Common heat-shrink color ranges are red for AWG 22-16, blue for AWG 16-14, and yellow for AWG 12-10, but always verify the listed range for the selected product.

When should I choose heat-shrink ring terminals?

Choose heat-shrink ring terminals for permanent or semi-permanent battery, grounding, marine, trailer, and automotive connections exposed to moisture, corrosion, or vibration. Use a different terminal if the connection must be removed frequently or if the wire gauge, stud size, or environmental rating does not match.
