AWG 22-10 Fully Insulated Spade Terminals Kit

$19.99 USD
Coupon strip showing 5 percent and 10 percent discounts by order value
Color:Blue AWG 16-14
Model:Female
Quantité:
Free Returns Within 30 Days
Free Shipping on All Orders
Warranty up to 24 Months
Visa Mastercard PayPalAmerican Express DiscoverDiners Club
Haisstronica model automatic cable stripper for precision tasks.
Pince à dénuder auto-ajustable pour AWG 24-10 $15.99
Haisstronica ratchet crimper for AWG 22-10 non-insulated terminals & heat shrink connectors, ANSI-compliant design
Pince à sertir à cliquet pour connecteurs thermorétractables AWG 22-10 $25.99
Workbench scene using heat gun wire connectors; precise heating shrinks sleeves on cables for sealed connections.
Pince à sertir les embouts de câbles Haisstronica, AWG 23-10, hexagonale auto-ajustable, pour cosses à cliquet, embouts de câbles $20.99

AWG 22-10 Fully Insulated Spade Terminals Kit provides color-coded male and female quick-disconnect terminals for automotive, marine, appliance, and general electrical wiring. The bottle-pack variants contain terminals only—no crimping tool is included.

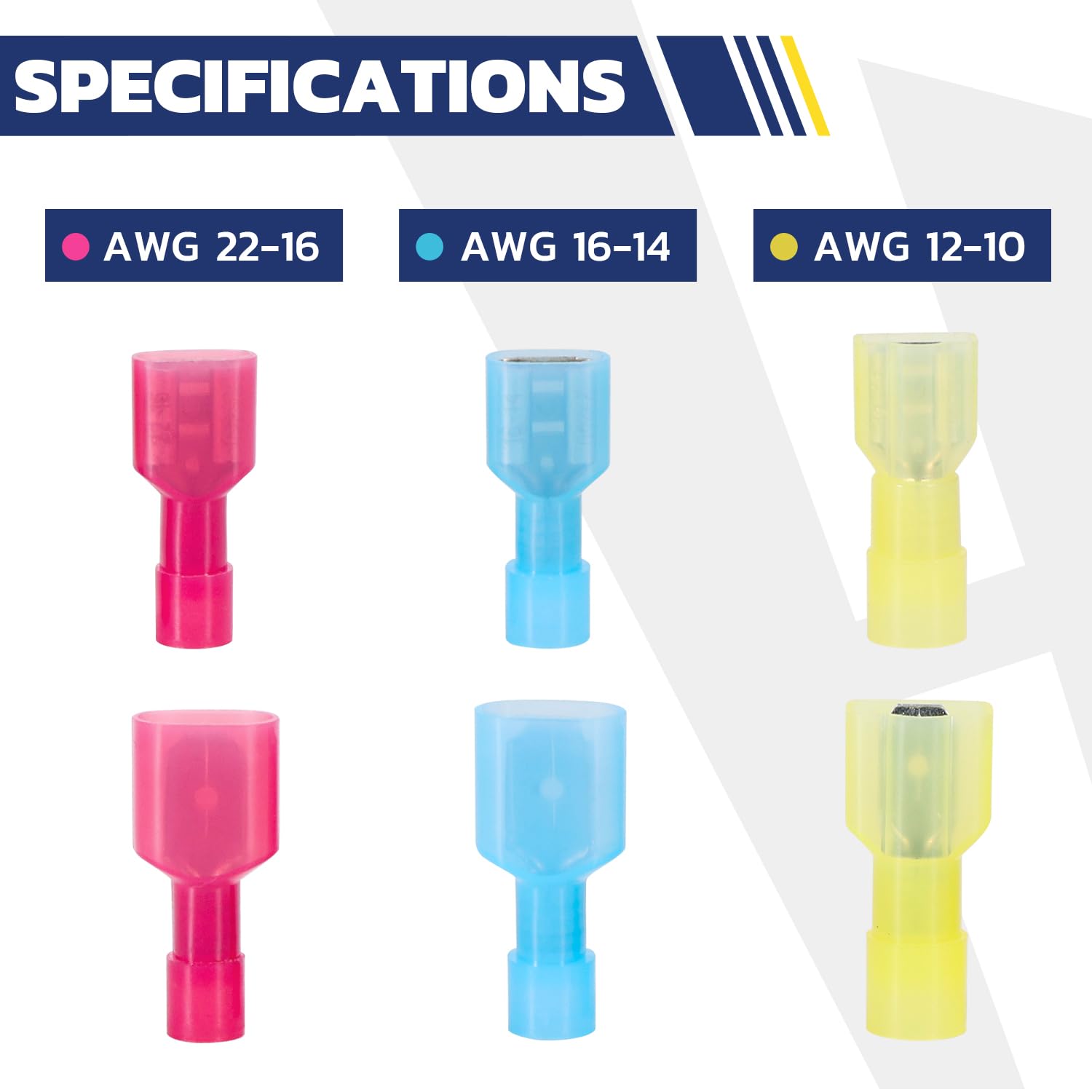

Terminal Selection Guide
Color AWG Terminal Options Pack Quantity Blade Size Material / Insulation Application

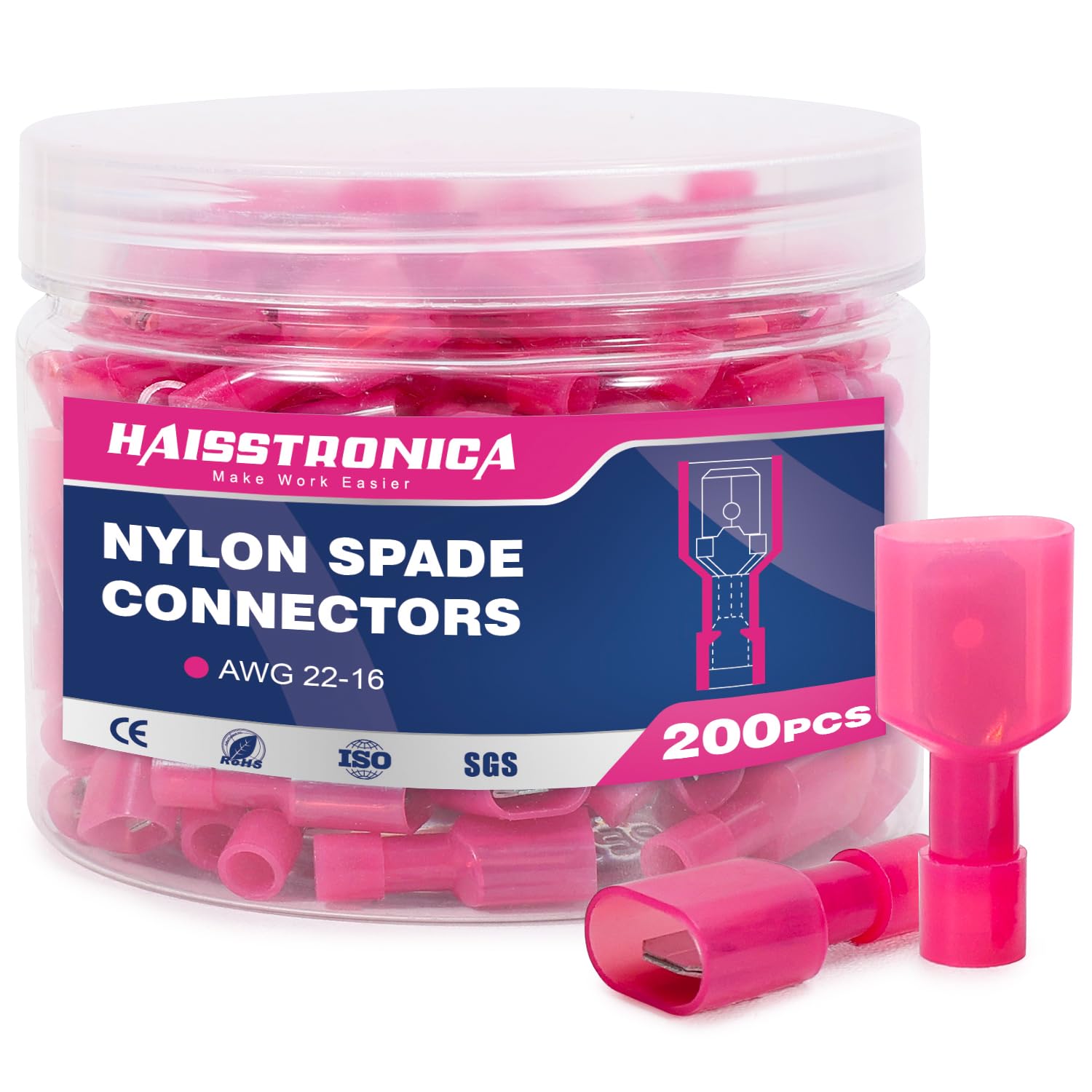

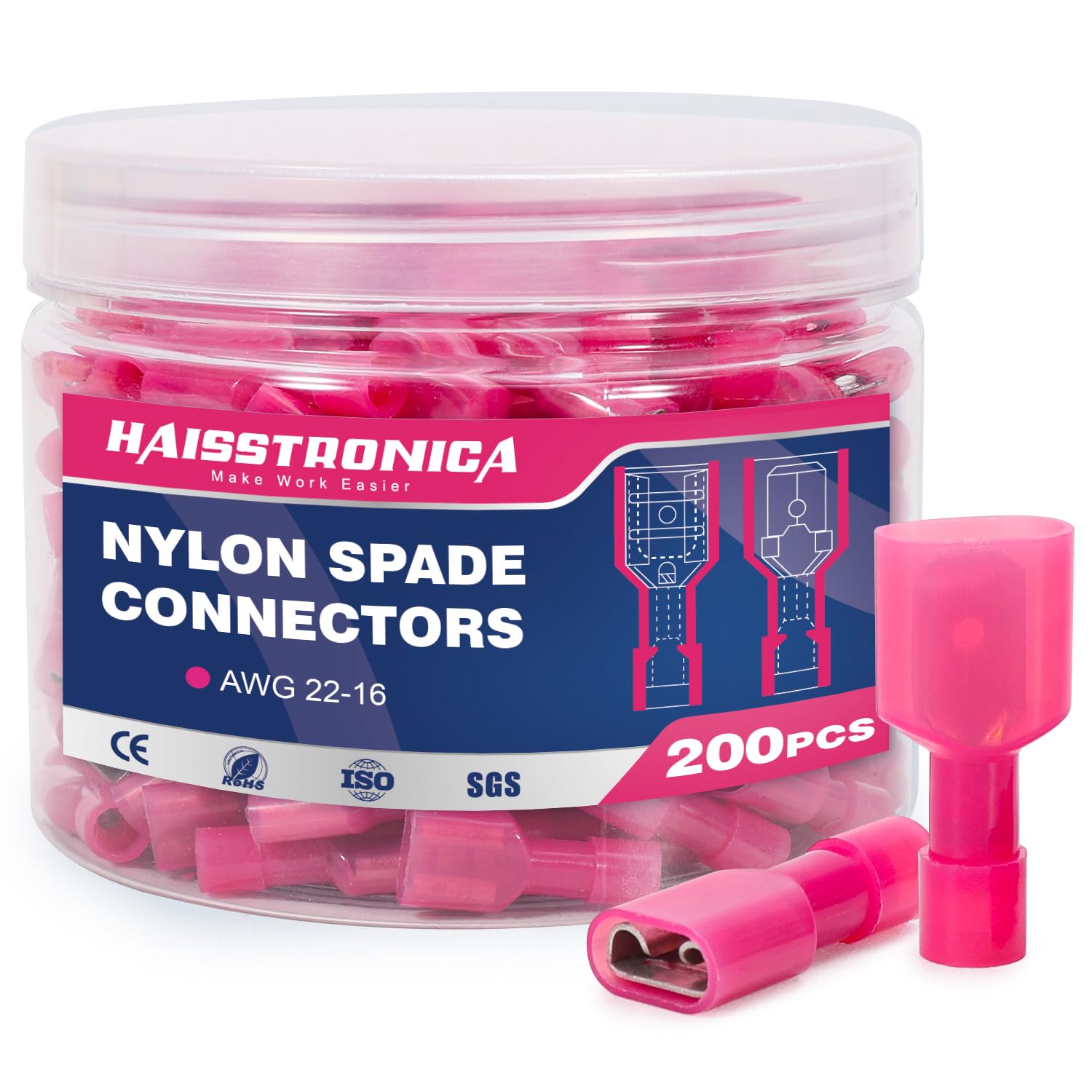

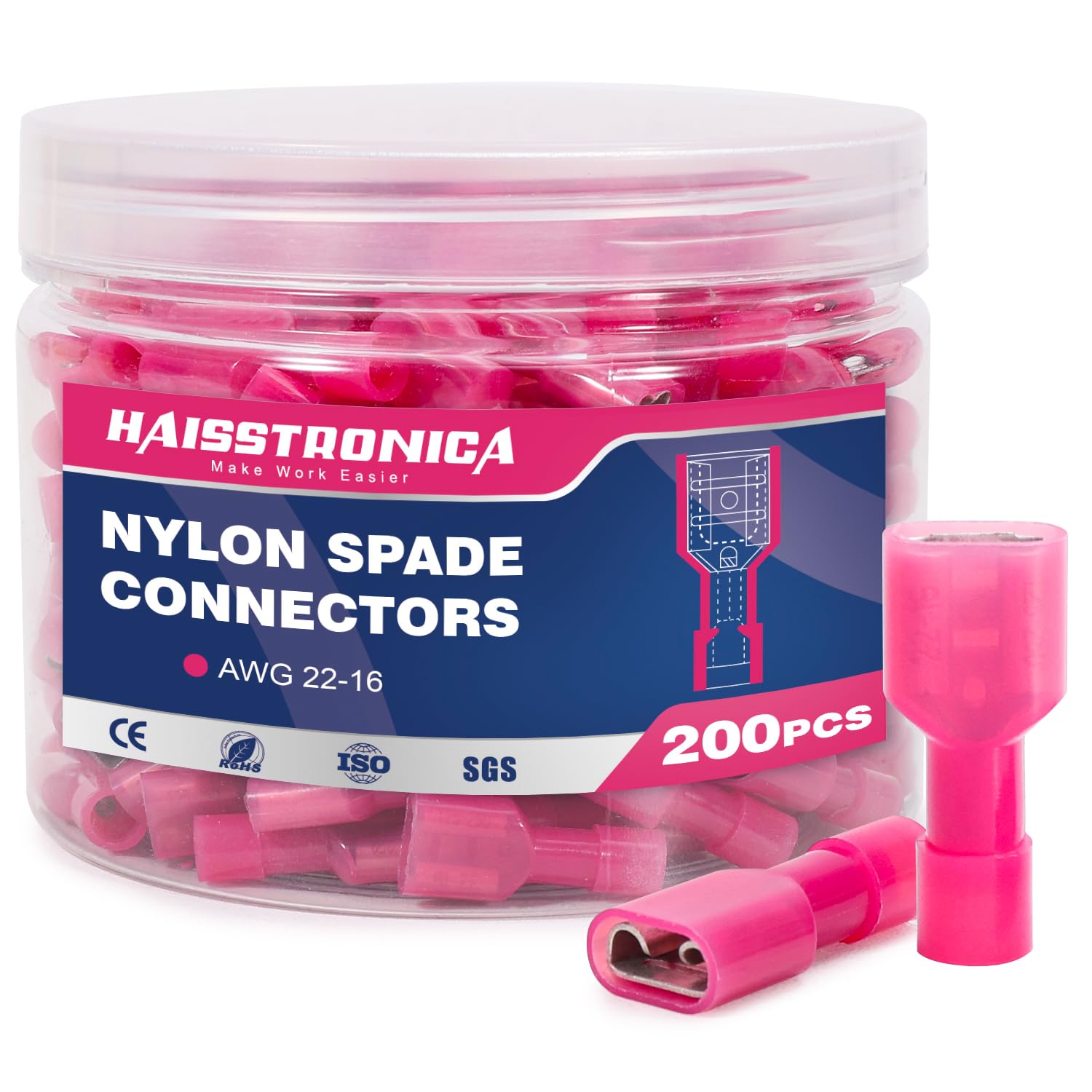

Red AWG 22-16 Female / Male / Male & Female 200PCS 0.250 in (6.3 mm) Tinned copper / fully insulated nylon Small-gauge control and accessory wiring

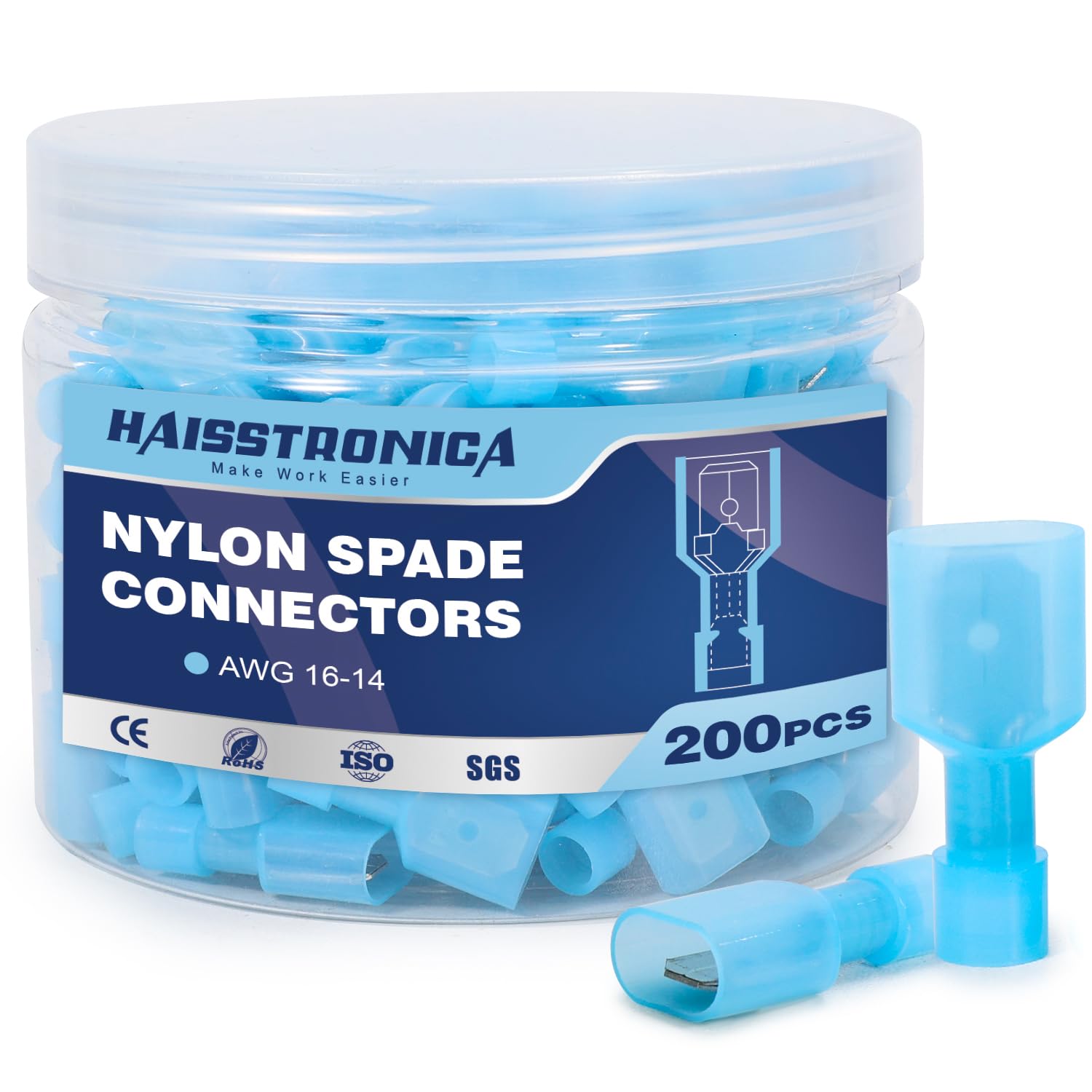

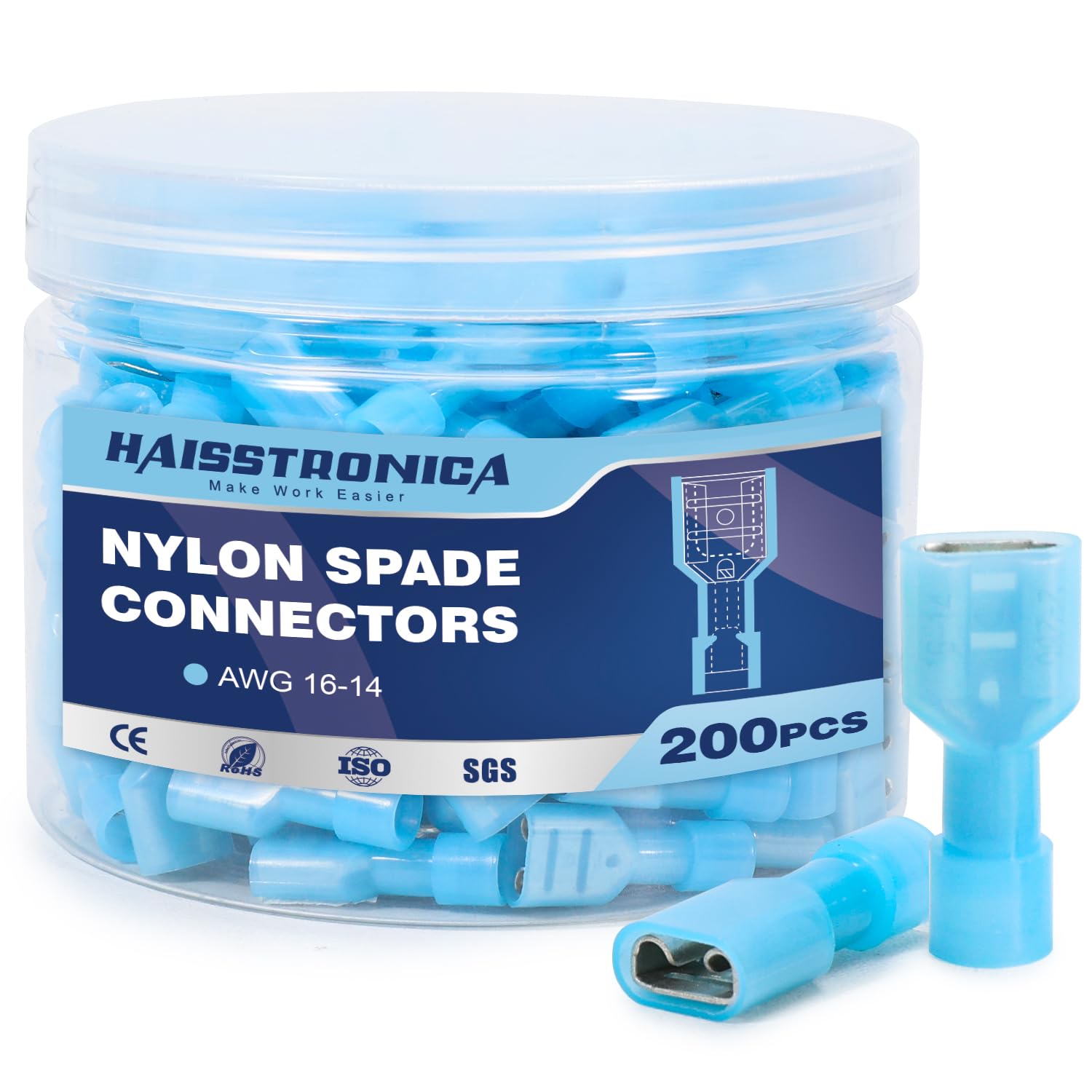

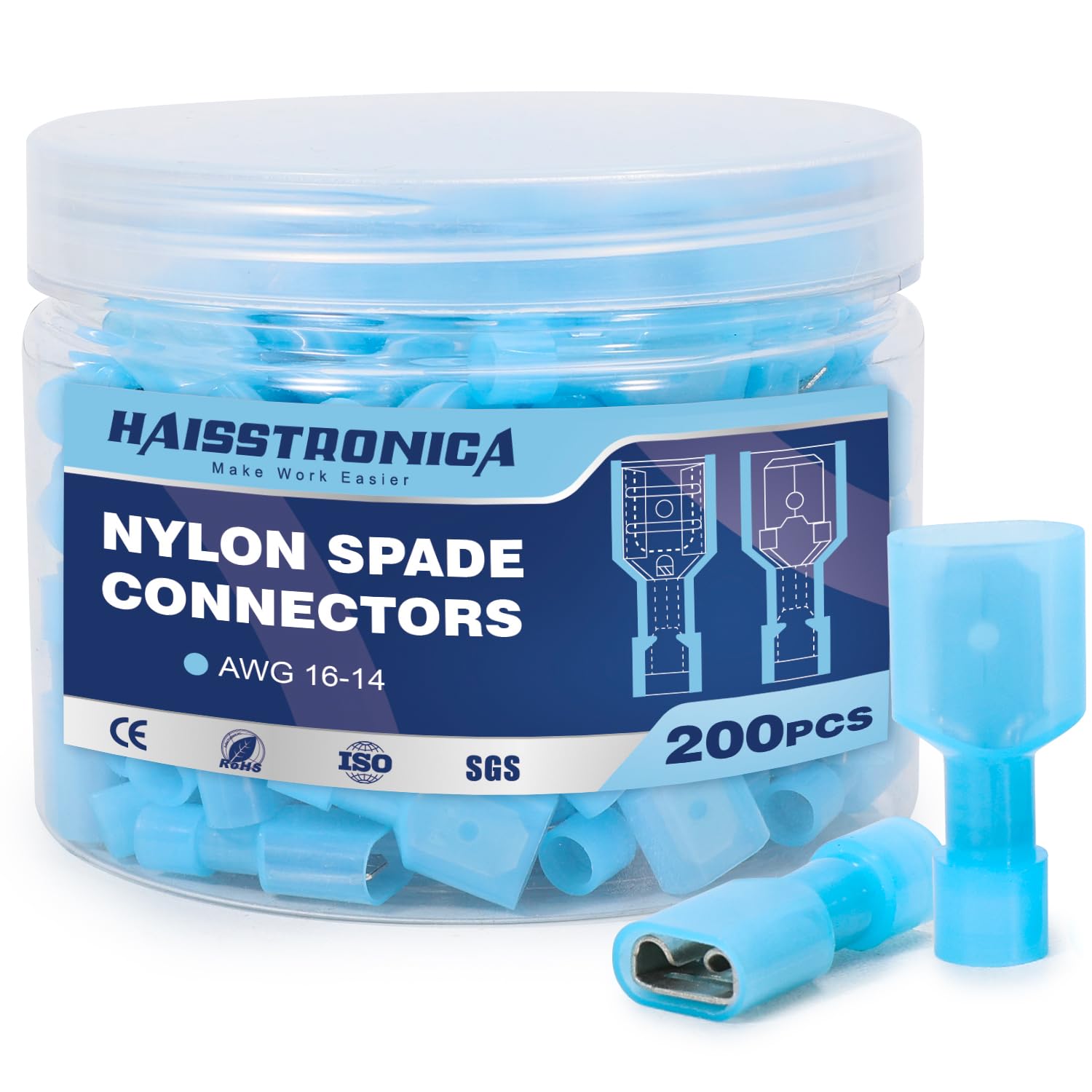

Blue AWG 16-14 Female / Male / Male & Female 200PCS 0.250 in (6.3 mm) Tinned copper / fully insulated nylon Automotive, appliance, and panel wiring

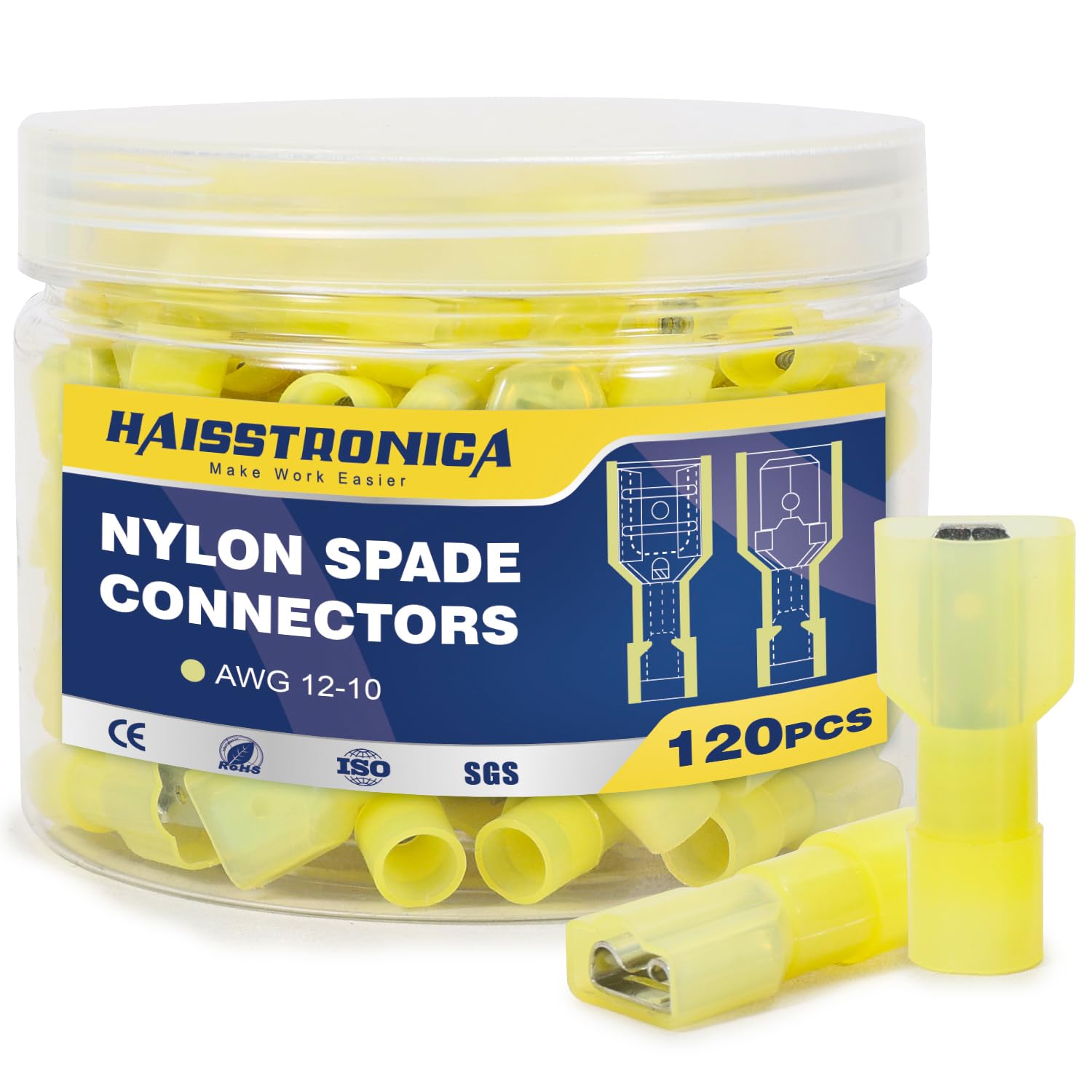

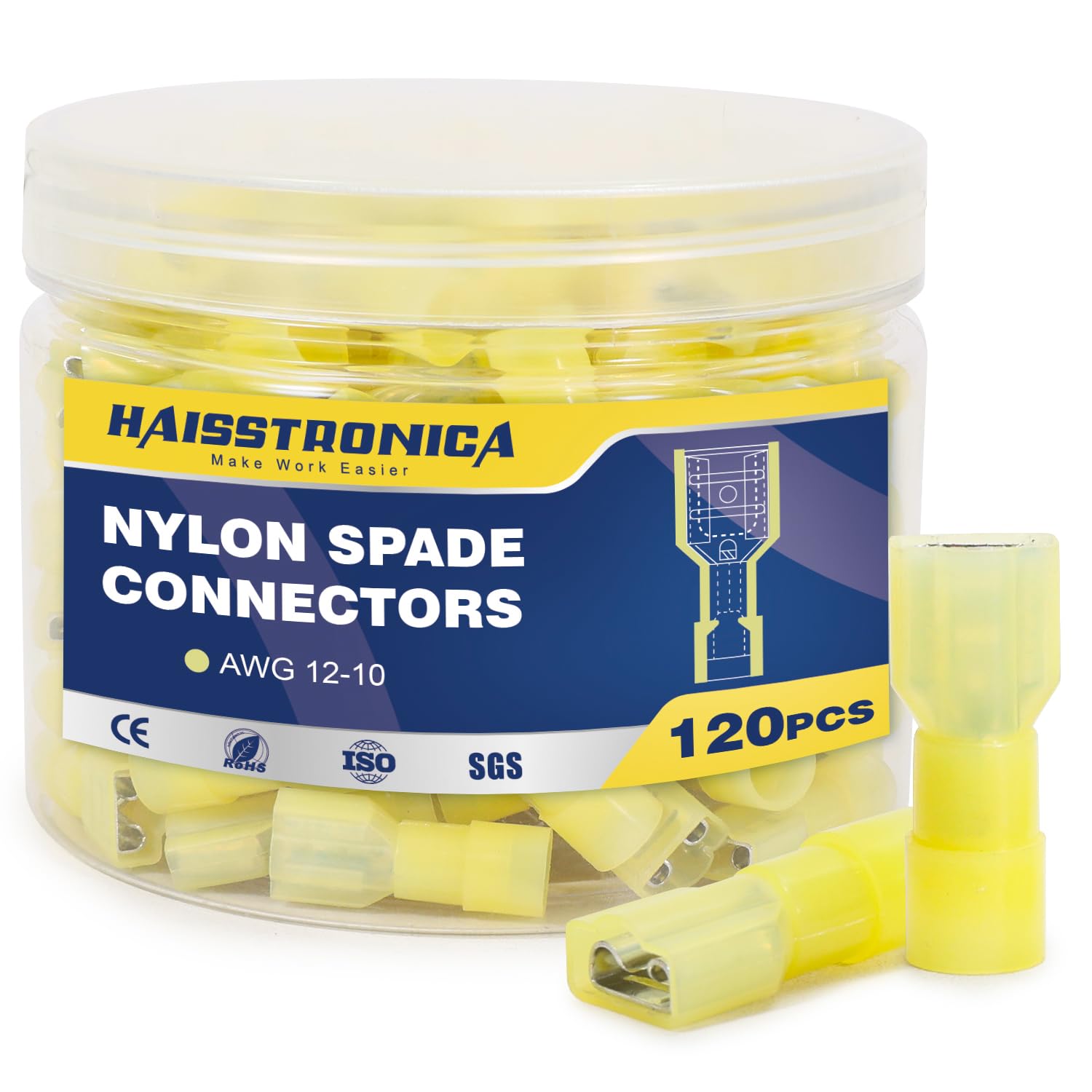

Yellow AWG 12-10 Female / Male / Male & Female 120PCS 0.250 in (6.3 mm) Tinned copper / fully insulated nylon Higher-current accessory and equipment wiring

Choose Female, Male, or Male & Female in the variant selector. Pack quantity follows the selected color and model. A crimping tool is not part of this bottle package.

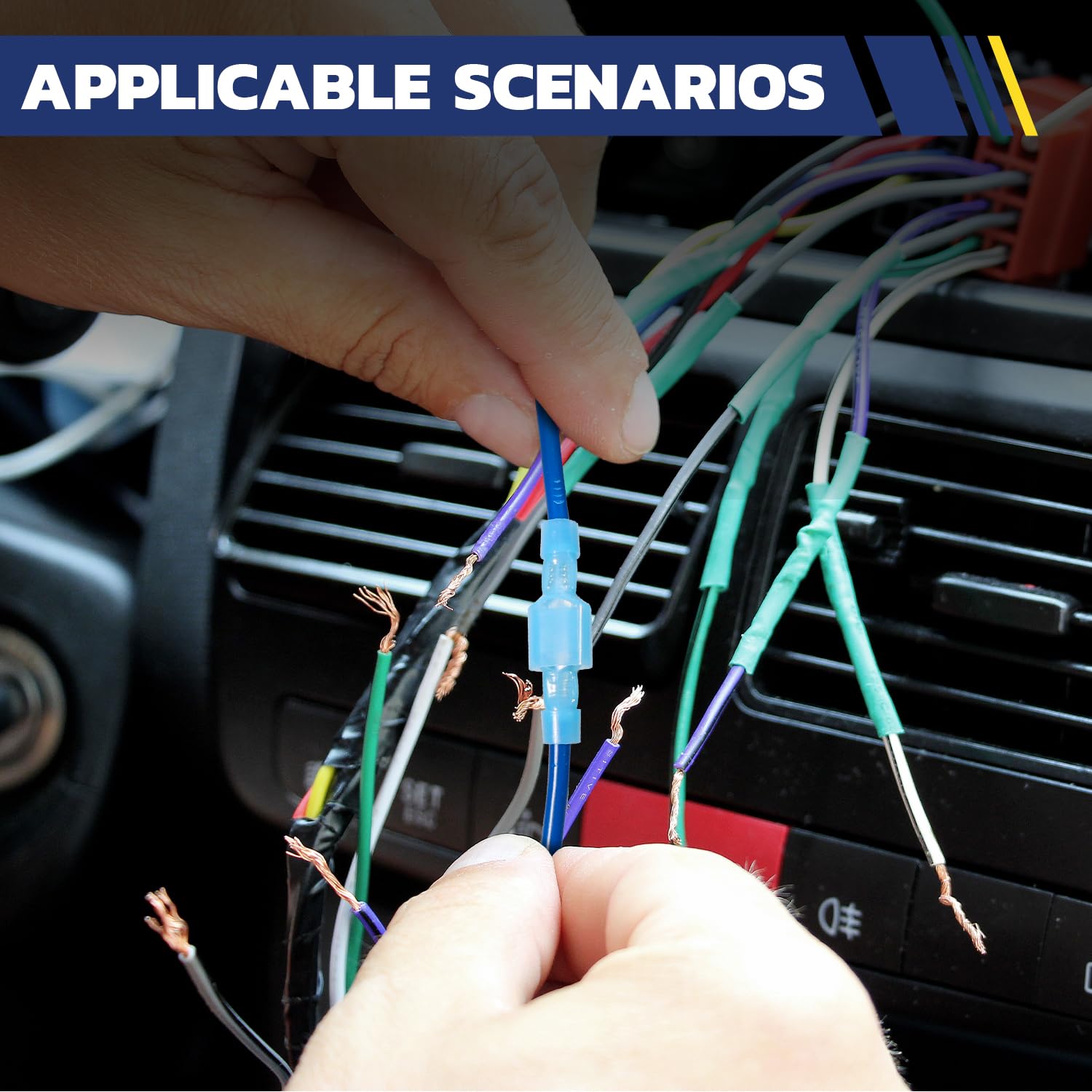

Applications

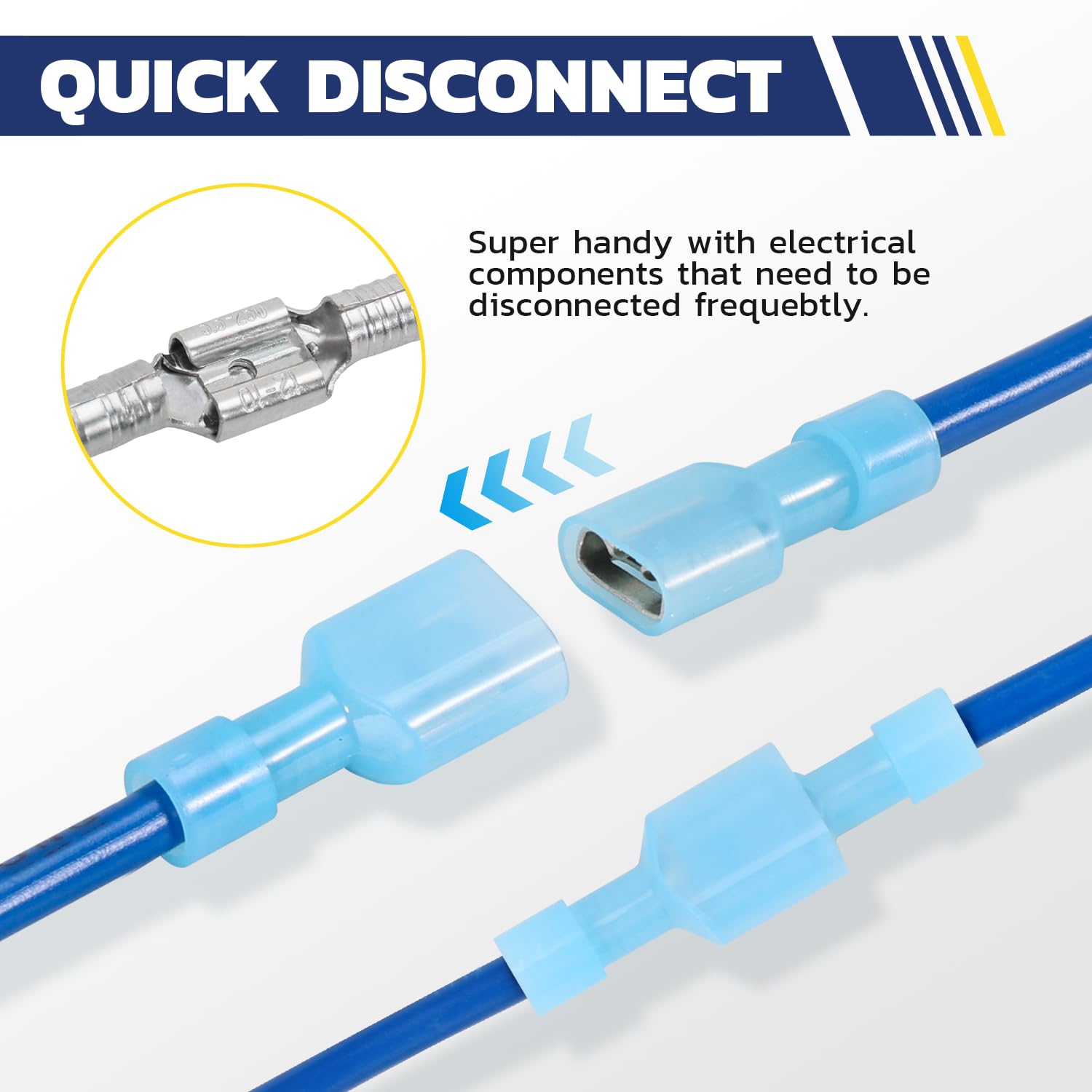

These fully insulated quick-disconnect terminals suit circuits that may need periodic disconnection, including vehicle accessories, marine panels, trailers, appliances, control cabinets, and workshop repairs. The nylon sleeve helps isolate the conductive body; it is not a heat-shrink or waterproof seal.

How to Choose
  1. Match the terminal color to the conductor: red for AWG 22-16, blue for AWG 16-14, or yellow for AWG 12-10.
  2. Select Female or Male to match the existing mating terminal. Choose Male & Female when both sides of the disconnect are required.
  3. Confirm the mating tab uses the same 0.250-inch quick-disconnect format before installation.

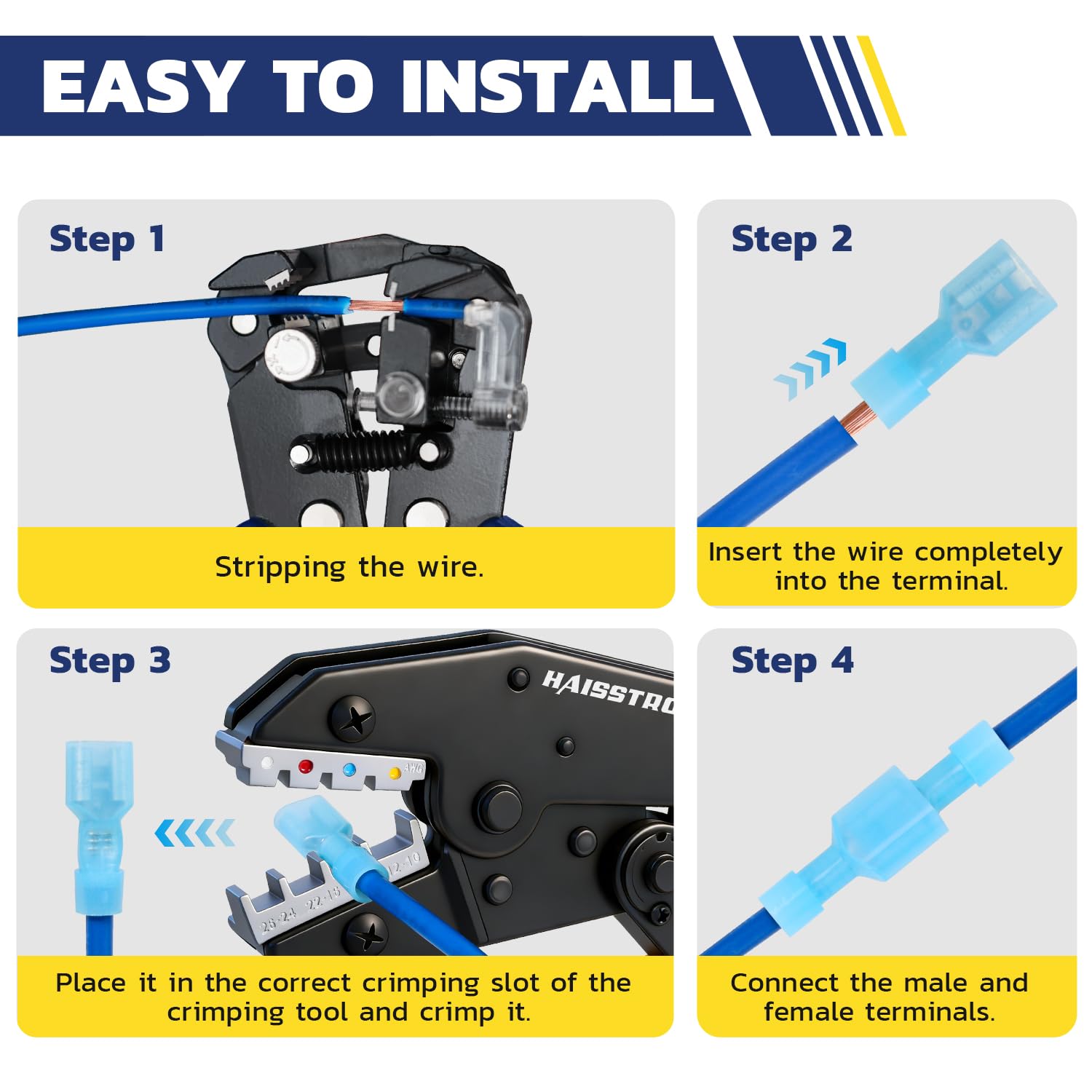

How to Crimp
  1. Disconnect power and strip the wire without cutting conductor strands.
  2. Insert the conductor fully into the metal barrel.
  3. Place the barrel in the correct color-coded die of a ratcheting insulated-terminal crimper and complete the crimp cycle.
  4. Pull-test the connection, then join the matching male and female terminals until fully seated.

Do not crimp the mating blade or receptacle area. Replace any terminal with a cracked nylon sleeve, loose crimp, or damaged contact.

Frequently Asked Questions

Does this kit include a crimping tool?

No. The listed bottle variants contain fully insulated spade terminals only. Use a compatible ratcheting crimper for insulated terminals.

Can male and female terminals from different colors connect?

The mating blade format must match, but each terminal barrel must also fit its own wire gauge. Do not use the wrong color simply to join a pair.

Are these terminals waterproof?

No. The nylon sleeve provides electrical insulation, but it does not create a waterproof heat-shrink seal. Use a sealed connector where moisture protection is required.

Which crimping die should I use?

Use the insulated-terminal die that matches the terminal color and conductor range: red, blue, or yellow. Complete the full ratchet cycle and pull-test the wire.

Browse more spade connectors, select a compatible wire crimping tool, or compare the other AWG 22-10 nylon spade terminal kit.

Features:

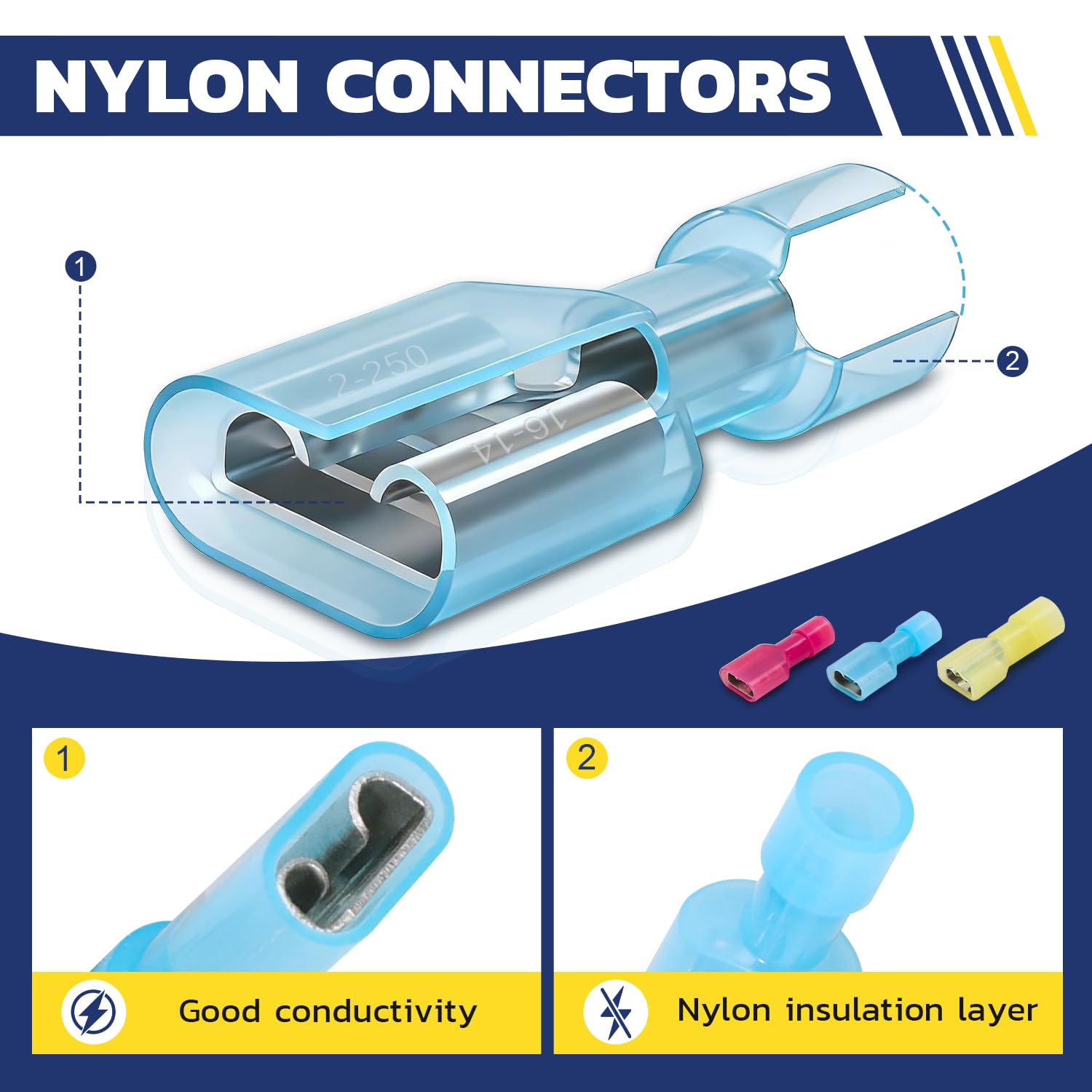

  • Tinned Copper Core: Built with tinned copper for stable conductivity and corrosion resistance, ensuring reliable connections in automotive, marine, and outdoor environments
  • Secure Crimp Hold: Designed for a strong crimp grip that helps prevent wire pull-out after installation. Fully insulated nylon sleeves provide added safety and heat resistance during wiring work
  • Color-Coded Design: Red, blue, and yellow connectors correspond to different AWG sizes, making it faster to choose the correct terminal and stay organized on the job
  • Wide Applications: Ideal for home repairs, automotive wiring, marine electrical systems, trailers, and industrial projects. Comes with an organized storage case for easy access anywhere
