Plan the load and distance before you bury the cable.
10/2 landscape wire can reduce voltage drop on long, heavily loaded runs—but only after the wattage, farthest fixture, transformer capacity, and route are planned together.
1. Calculate load and distance first
Wire gauge should be selected from the real electrical load and the longest conductor path—not lawn acreage alone. Build the lighting plan on paper before buying cable.
Total fixture watts
Add the rated wattage of every fixture on one transformer circuit.
Circuit watts = fixture 1 + fixture 2 + …Leave transformer headroom. A practical planning target is to keep the expected load near or below 80% of the transformer's rated capacity.
Farthest electrical run
Measure the cable path from the transformer to the farthest fixture, including turns, branches, risers, and service loops.
Purchase length = planned route + 10–15%Use the longest loaded path when checking voltage drop—not the straight-line distance across the yard.
2. Verify whether 10/2 is necessary
Thicker cable is valuable when distance and load rise together. It is not automatically the best choice for every zone.
| Planning condition | What it means | Best next step |
|---|---|---|
| Short, lightly loaded zone | A smaller approved landscape-wire gauge may be easier to route and terminate while still meeting the voltage target. | Compare Wire Gauges → |
| Long run or concentrated load | 10/2 may reduce voltage loss and preserve brightness at the far end, especially when the transformer and fixtures support the design. | Check 10/2 Availability → |
| Multiple distant zones | Separate home runs or a hub layout may outperform one very long daisy chain and can make future troubleshooting easier. | Plan the Circuits ↓ |
3. Choose a roll length from the route—not a guess
Mark the transformer, every fixture, every branch, and every change of direction. Measure each cable path and add a controlled allowance for routing and service loops.
Compact zone
Suitable when the measured circuit plus allowance stays comfortably below one roll.
Browse Available Wire →Medium route
Useful for one longer loop or two shorter home runs after measuring both paths.
Browse Available Wire →Large-lawn layout
Consider when several branches or a distant zone push the total planned length higher.
Browse Available Wire →4. Plan the transformer and circuits
One long daisy chain
Uses less cable, but the last fixtures can see the greatest voltage loss. It also places more of the circuit behind every upstream connection.
Hub or multiple home runs
Uses more cable but shortens loaded paths, improves balance, and makes expansion or troubleshooting more manageable.
- Mount the transformer in an approved location with ventilation and service access.
- Separate circuits when transformer capacity, voltage-drop targets, or zone control require it.
- Keep a clear route map showing cable lengths, branch points, fixtures, and connector locations.
- Before trenching, have underground utilities marked and follow local electrical and burial rules.
5. Install the wire and protect every branch
De-energize and dry-fit
Disconnect power. Lay the wire above ground, place fixtures, and confirm that every planned run reaches with service slack.
Prepare the trench
Follow fixture, cable, transformer, and local requirements. Protect the route from edging, digging, irrigation work, and vehicle traffic.
Lay without strain
Avoid sharp bends, stretched cable, crushed insulation, and tight joints. Leave accessible service loops at fixtures and branches.

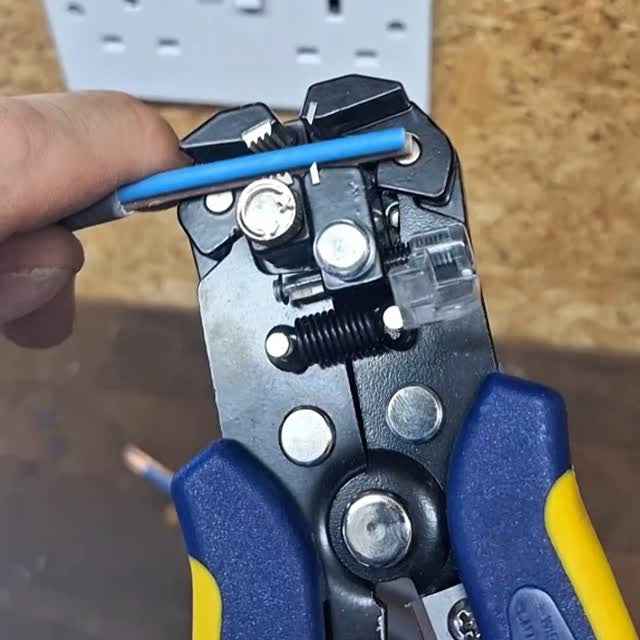

Make waterproof branches
Use connectors approved for the conductor size and wet location. Complete the mechanical connection before sealing it.
Shop Waterproof Butt Connectors →Inspect before burial
Pull-test every joint. Confirm polarity, complete seals, intact insulation, and a clean route before covering the cable.
See Waterproof Wiring Kit →Energize and measure
Power the circuit only after inspection. Measure at the transformer and farthest fixture under load; correct weak connections or circuit imbalance before final closeout.
Products that match the job

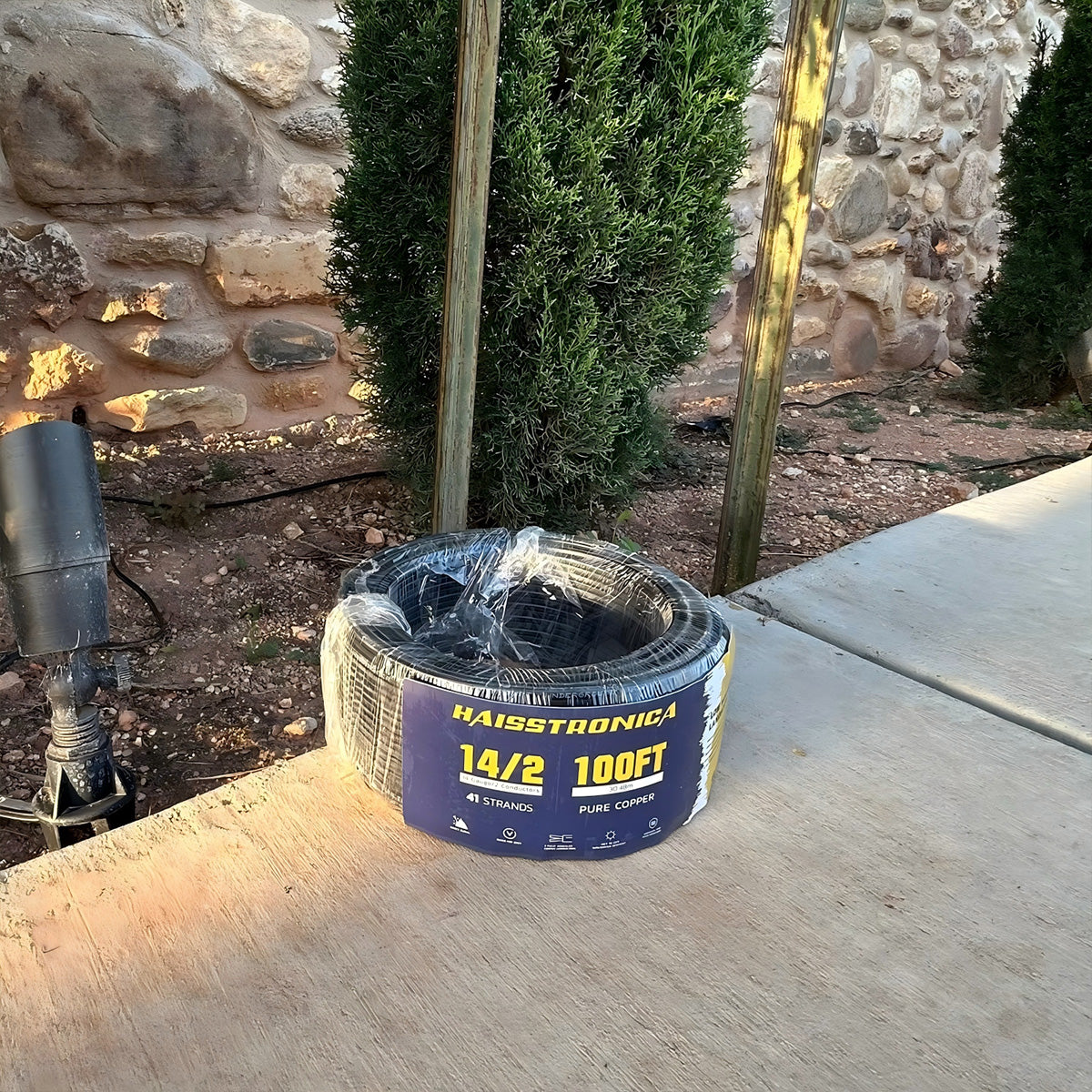

Landscape Wire Collection
Compare gauges and available roll lengths after the load and route are measured.
Browse Landscape Wire →
Waterproof Butt Connectors
For compatible extensions and sealed inline splices in exposed landscape circuits.
Choose Connectors →

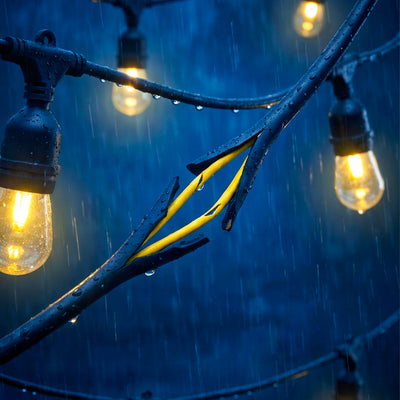

Waterproof Wiring Seal Kit
A coordinated route for outdoor branch and repair connections.
View Wiring Kit →6. Test voltage before final closeout
At the transformer
Record output voltage with the lighting load on. Confirm the selected tap and transformer instructions.
At the farthest fixture
Measure under the same load. Compare the reading with the fixture manufacturer's operating range and your design target.
If the far end is weak
Check polarity, loose or undersized connectors, damaged wire, overloaded circuits, and excessive run length before replacing fixtures.
Document the result
Keep the route map, transformer settings, circuit loads, and final voltage readings for future maintenance.
Large-lawn material checklist
Use this as a purchase-planning framework. The exact cable and connector quantity comes from the measured layout and fixture connection method.
| Layout size | Wire allowance | Connector planning |
|---|---|---|
| Up to 6 fixtures / one run | Measured route plus about 10% for turns and service loops. | Count every splice or extension, then add 2–4 compatible waterproof connectors as spares. |
| 7–12 fixtures / two branches | Add both branch paths and home runs, then allow about 10–15%. | One approved connection per planned splice or branch, plus approximately 4 spares. |
| 13+ fixtures / three or more zones | Measure each zone separately, total all home runs, then allow about 15%. | Count every junction and extension, add approximately 6 spares, and label each zone. |
| Always include | Transformer capacity, route map, voltage tester, trenching tools, and locally required protection. | Only connectors approved for the conductor gauge, conductor type, and wet-location use. |
Buy from the measured plan
Choose wire after wattage, distance, and circuit layout are known. Then count every branch and extension so the outdoor connection system is complete before installation day.
