5000PCS Wire Ferrules AWG 22-7 provide a color-coded assortment for clean termination of stranded conductors in terminal blocks, control panels, machinery, appliances, and workshop wiring. Twelve verified ferrule size, length, color, and quantity combinations are organized in removable storage bins.

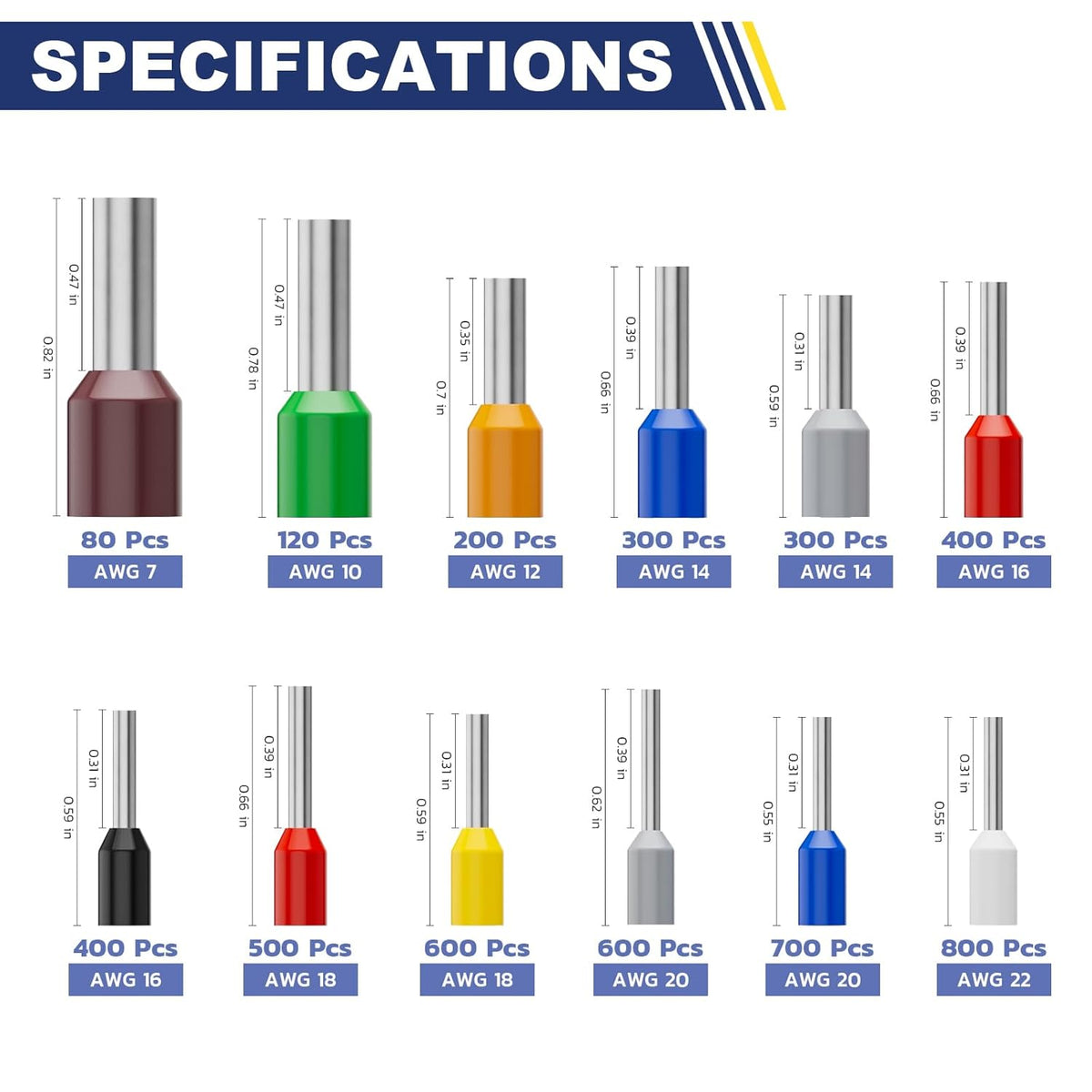

| AWG/mm² | Ferrule Length | Color | Quantity | Required Crimp Profile |
|---|---|---|---|---|
| AWG 7 / 10 mm² | 0.78 in (20 mm) | Brown | 80PCS | Square or hex ferrule crimp matched to conductor size |
| AWG 10 / 6 mm² | 0.70 in (18 mm) | Green | 120PCS | Square or hex ferrule crimp matched to conductor size |
| AWG 12 / 4 mm² | 0.70 in (18 mm) | Orange | 200PCS | Square or hex ferrule crimp matched to conductor size |
| AWG 14 / 2.5 mm² | 0.66 in (17 mm) | Blue | 300PCS | Square or hex ferrule crimp matched to conductor size |
| AWG 14 / 2.5 mm² | 0.59 in (15 mm) | Gray | 300PCS | Square or hex ferrule crimp matched to conductor size |
| AWG 16 / 1.5 mm² | 0.66 in (17 mm) | Red | 400PCS | Square or hex ferrule crimp matched to conductor size |
| AWG 16 / 1.5 mm² | 0.59 in (15 mm) | Black | 400PCS | Square or hex ferrule crimp matched to conductor size |
| AWG 18 / 1.0 mm² | 0.66 in (17 mm) | Red | 500PCS | Square or hex ferrule crimp matched to conductor size |
| AWG 18 / 1.0 mm² | 0.59 in (15 mm) | Yellow | 600PCS | Square or hex ferrule crimp matched to conductor size |
| AWG 20 / 0.75 mm² | 0.62 in (16 mm) | Gray | 600PCS | Square or hex ferrule crimp matched to conductor size |
| AWG 20 / 0.75 mm² | 0.55 in (14 mm) | Blue | 700PCS | Square or hex ferrule crimp matched to conductor size |
| AWG 22 / 0.5 mm² | 0.55 in (14 mm) | White | 800PCS | Square or hex ferrule crimp matched to conductor size |
The 12 quantities total 5000PCS. Match the ferrule to the stripped conductor cross-section and terminal-block opening; do not select by color alone.
