Crimping Dies for Wire Terminals let you match a compatible terminal to the correct interchangeable die. Choose one A–F profile: AWG 24–6 is the combined range across the variants, not the range of every die. Each selected die includes two fixing screws for the Haisstronica HS-8327 ratcheting crimping tool; the tool is sold separately.
Crimping Dies for Wire Terminals help you select the correct terminal-specific crimp profile for a compatible Haisstronica HS-8327 tool. Choose one A–F die; AWG 24–6 is the combined range across the variants, not the capacity of every die. Each selected die includes two fixing screws. The crimping tool and terminals are not included.
| Terminal Type | Supported AWG | Die/Crimp Profile | Ratchet/Adjustment | Included Parts |
|---|---|---|---|---|

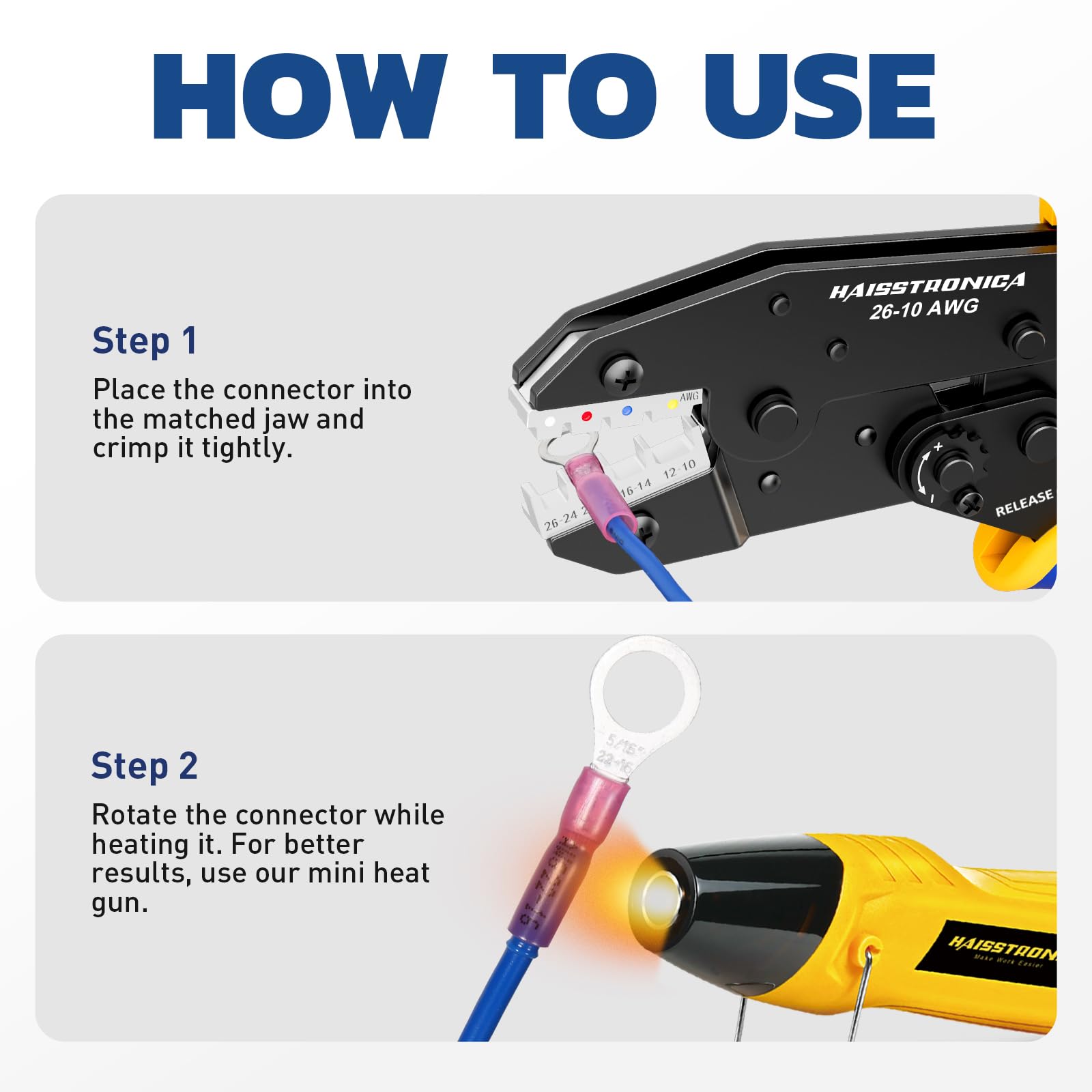

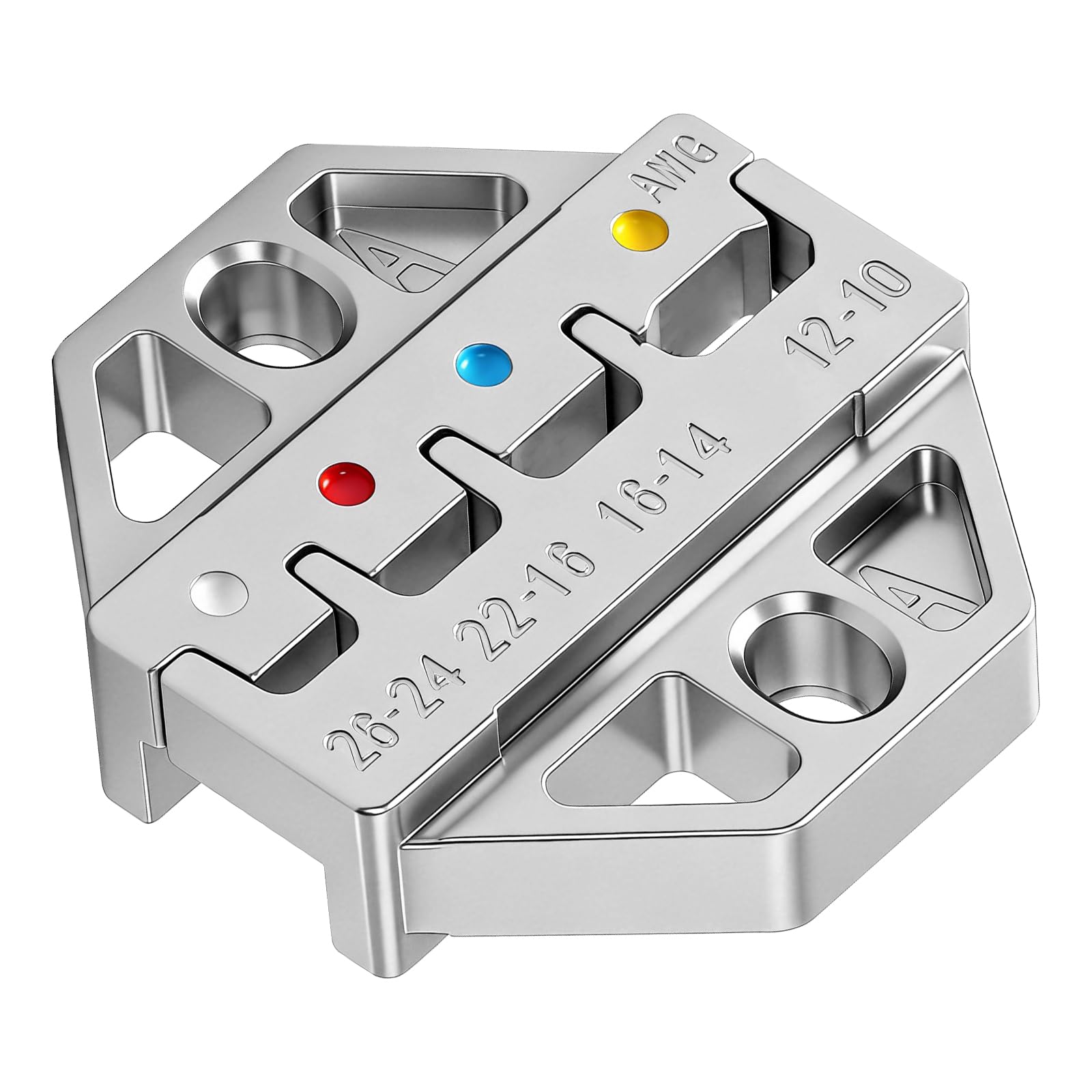

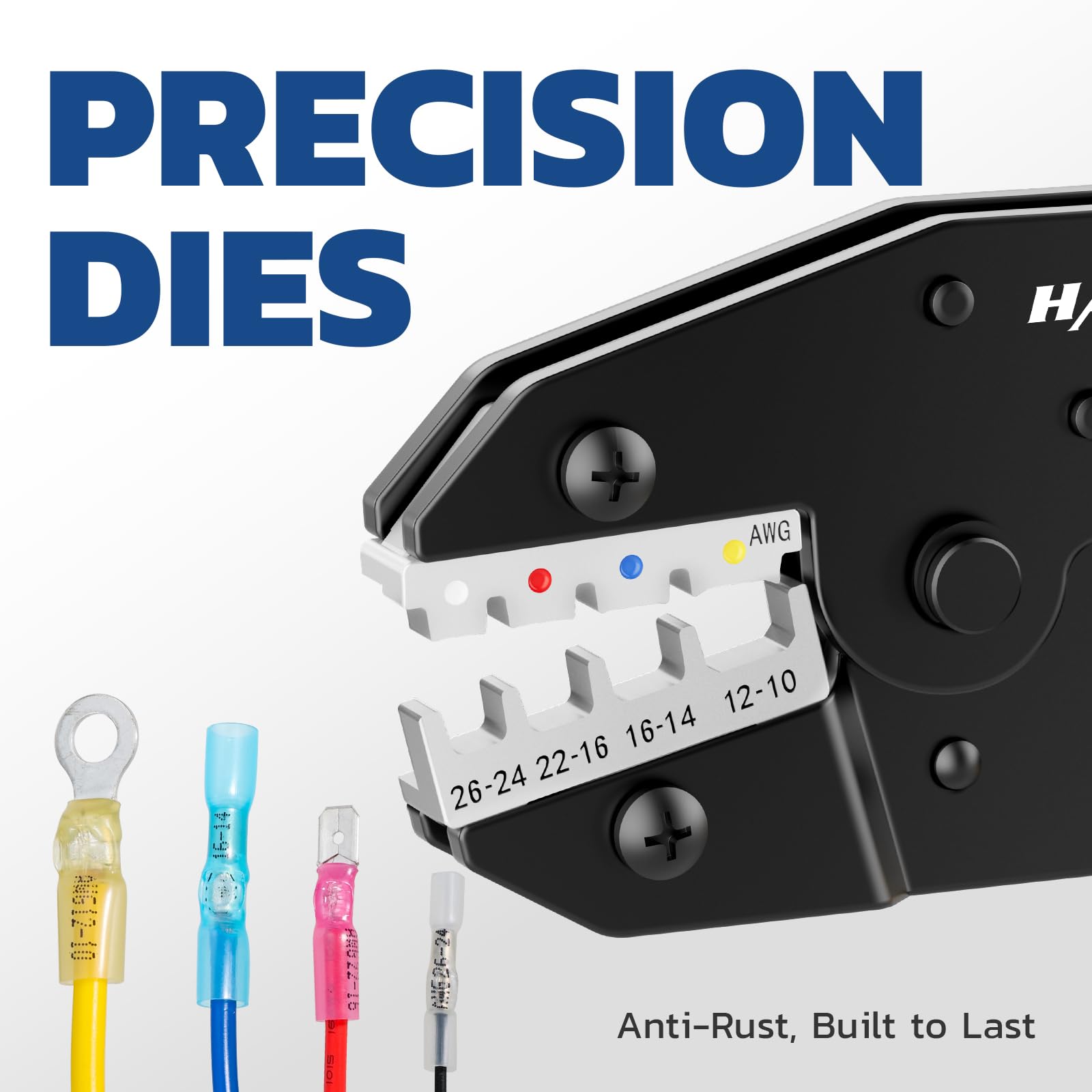

| A — Heat-shrink terminals | 22–16, 16–14, 12–10 AWG | A heat-shrink profile; red/blue/yellow positions | No built-in ratchet; uses HS-8327 tool | HX1576: 1 selected die + 2 fixing screws |

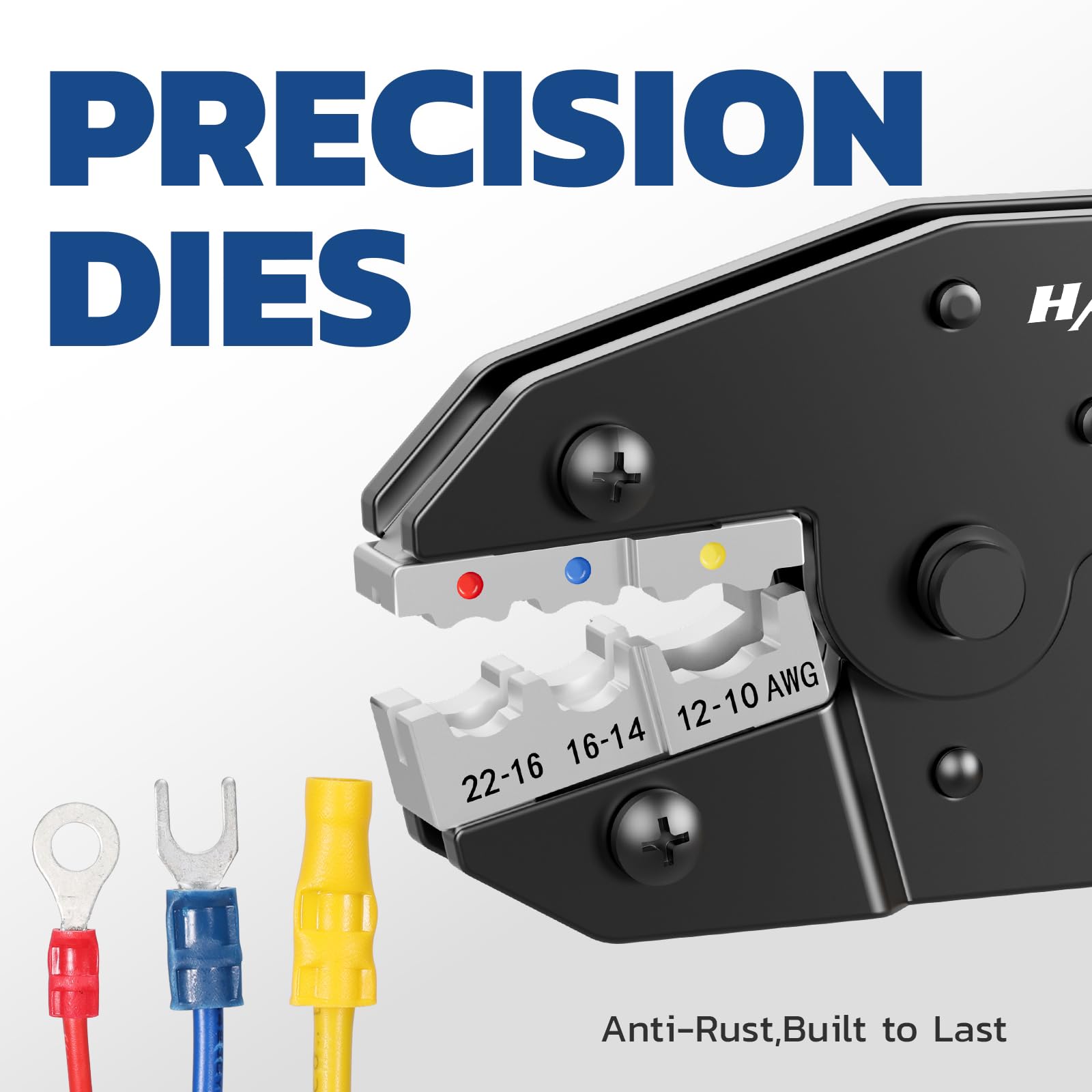

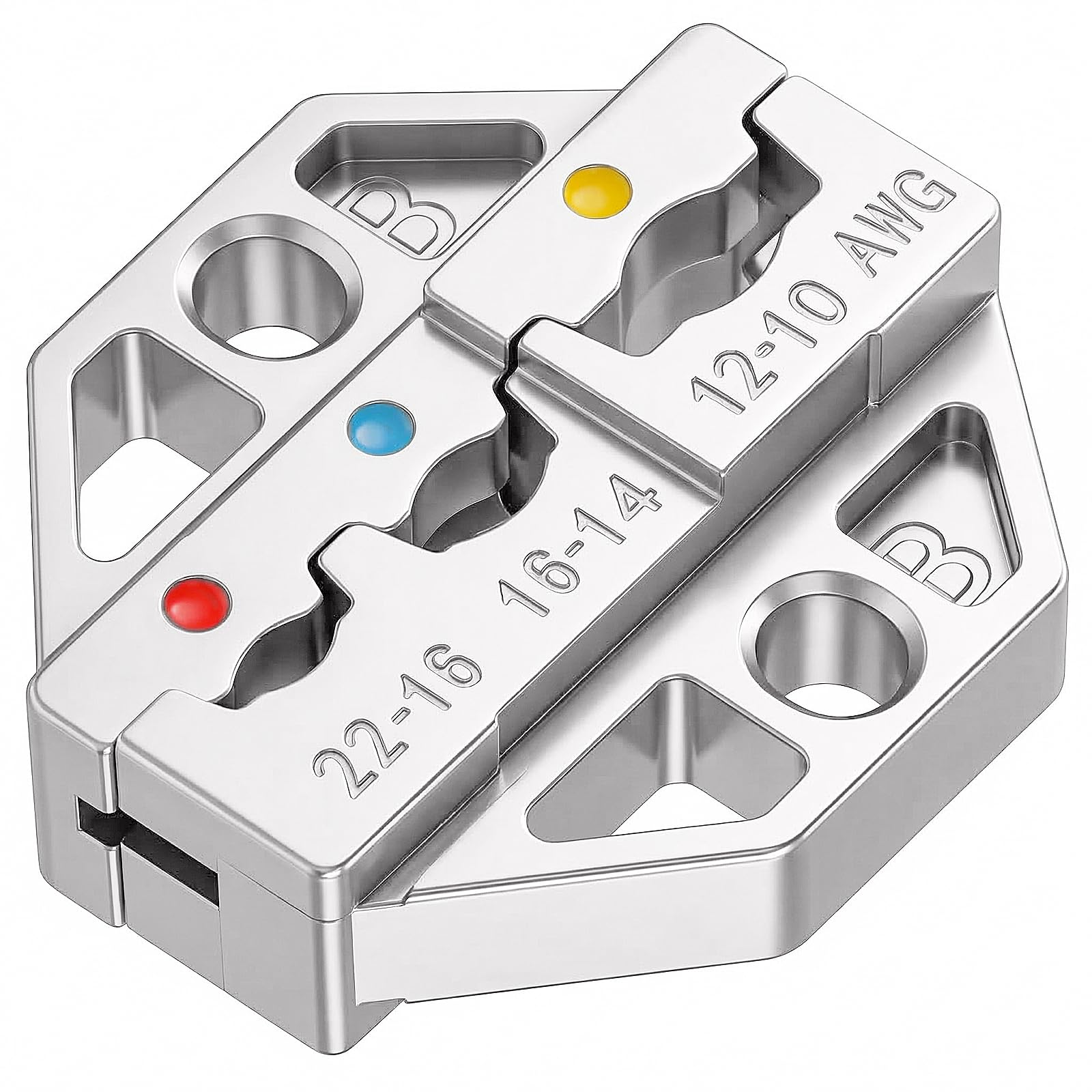

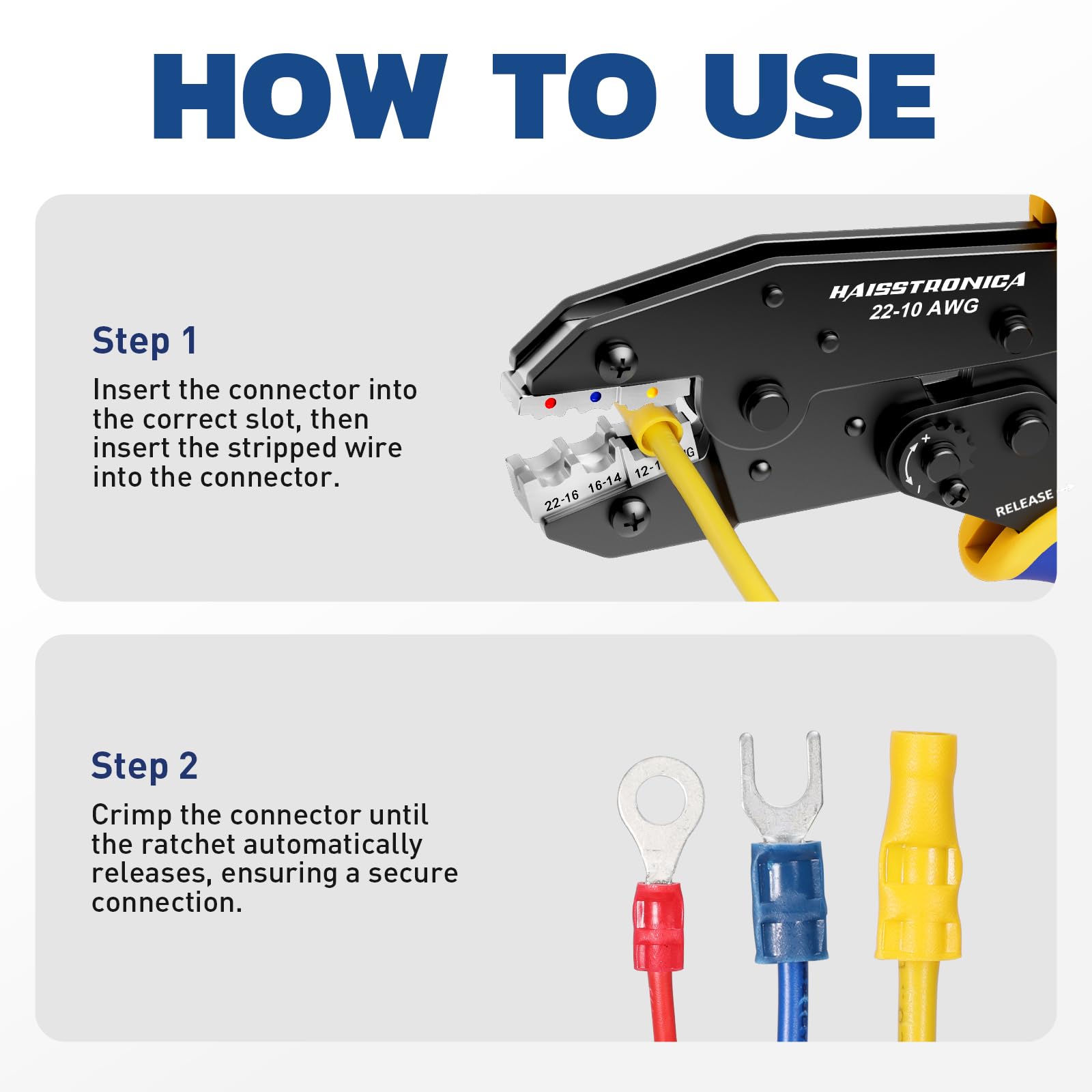

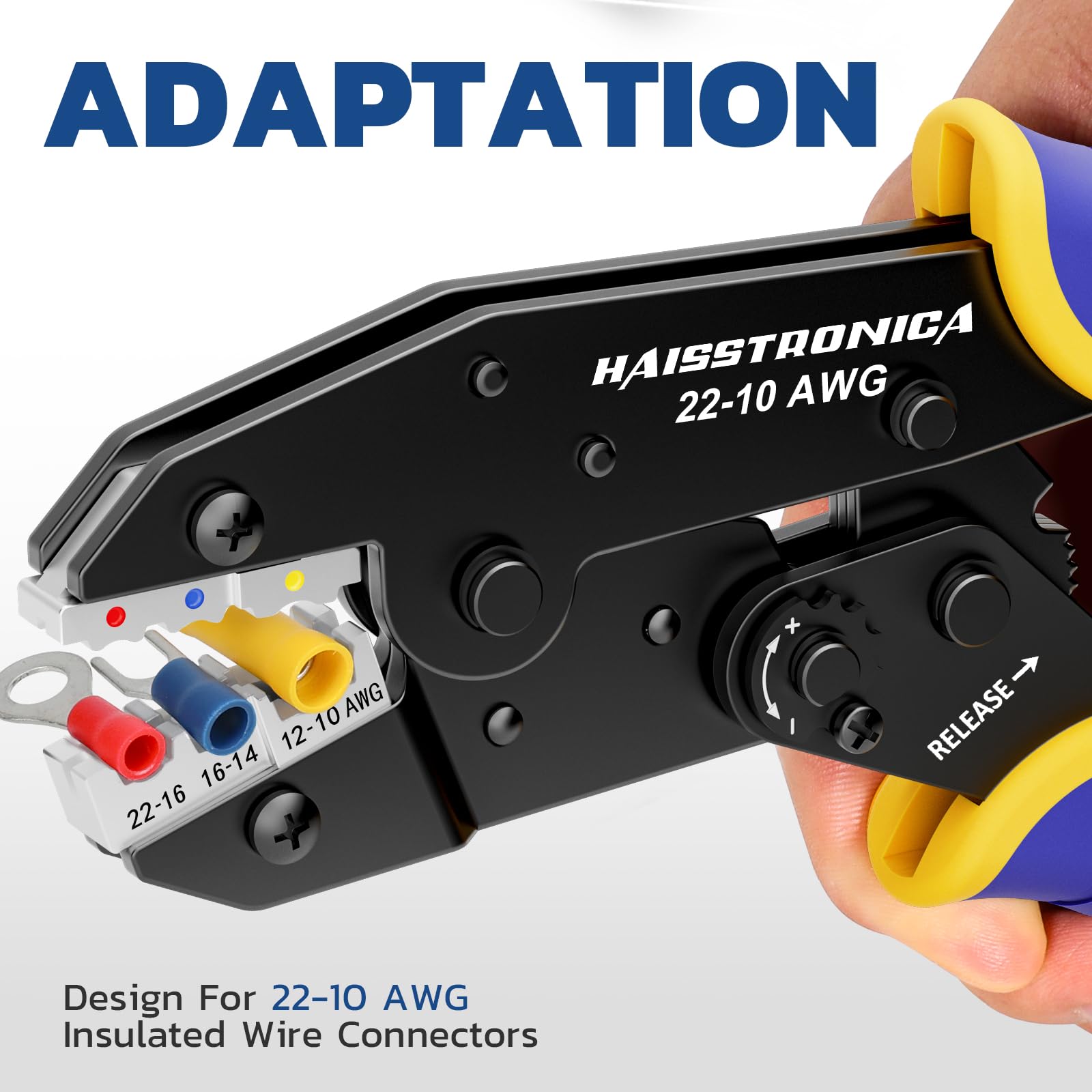

| B — Insulated and nylon terminals | 22–16, 16–14, 12–10 AWG | B insulated-terminal profile; red/blue/yellow positions | No built-in ratchet; uses HS-8327 tool | HX1577: 1 selected die + 2 fixing screws |

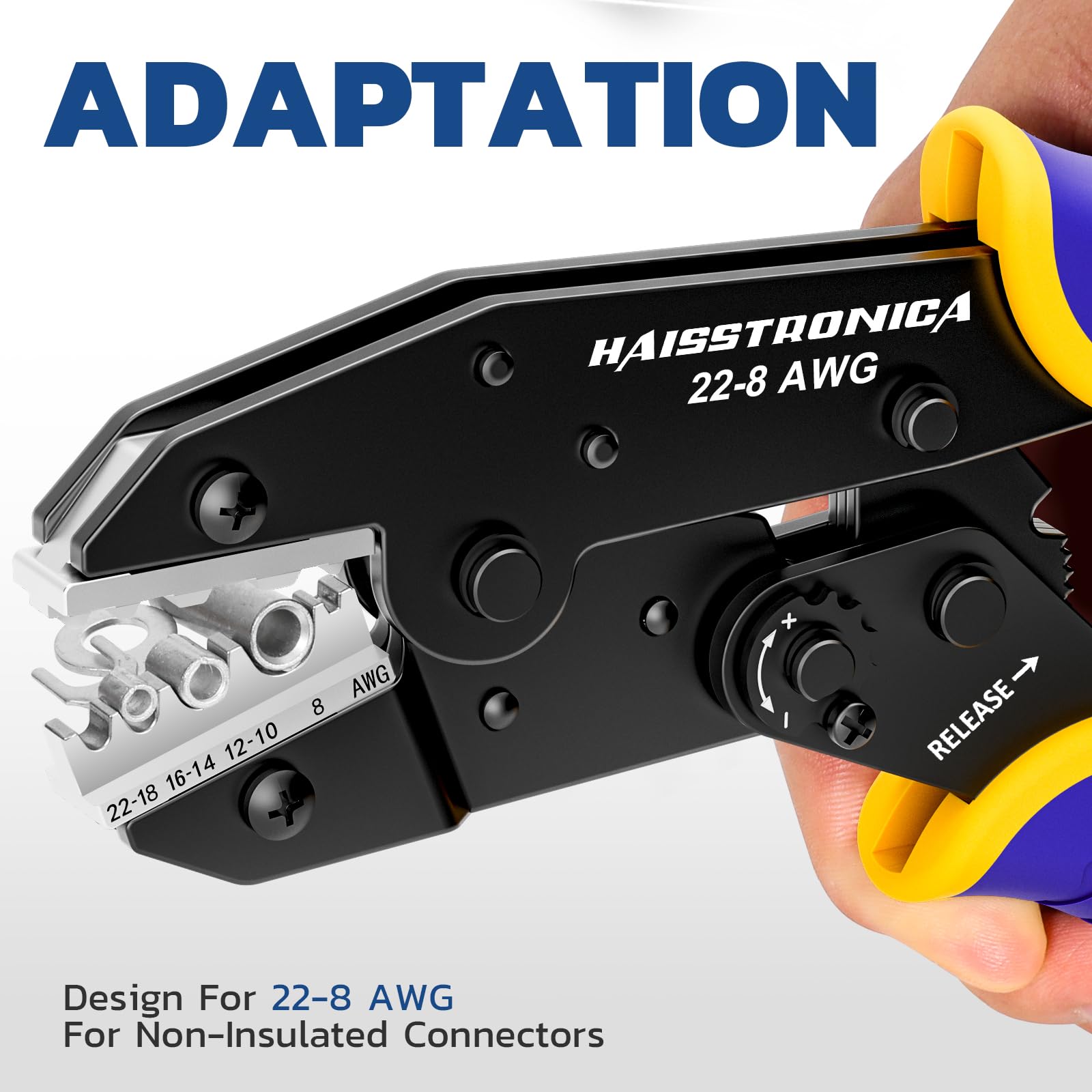

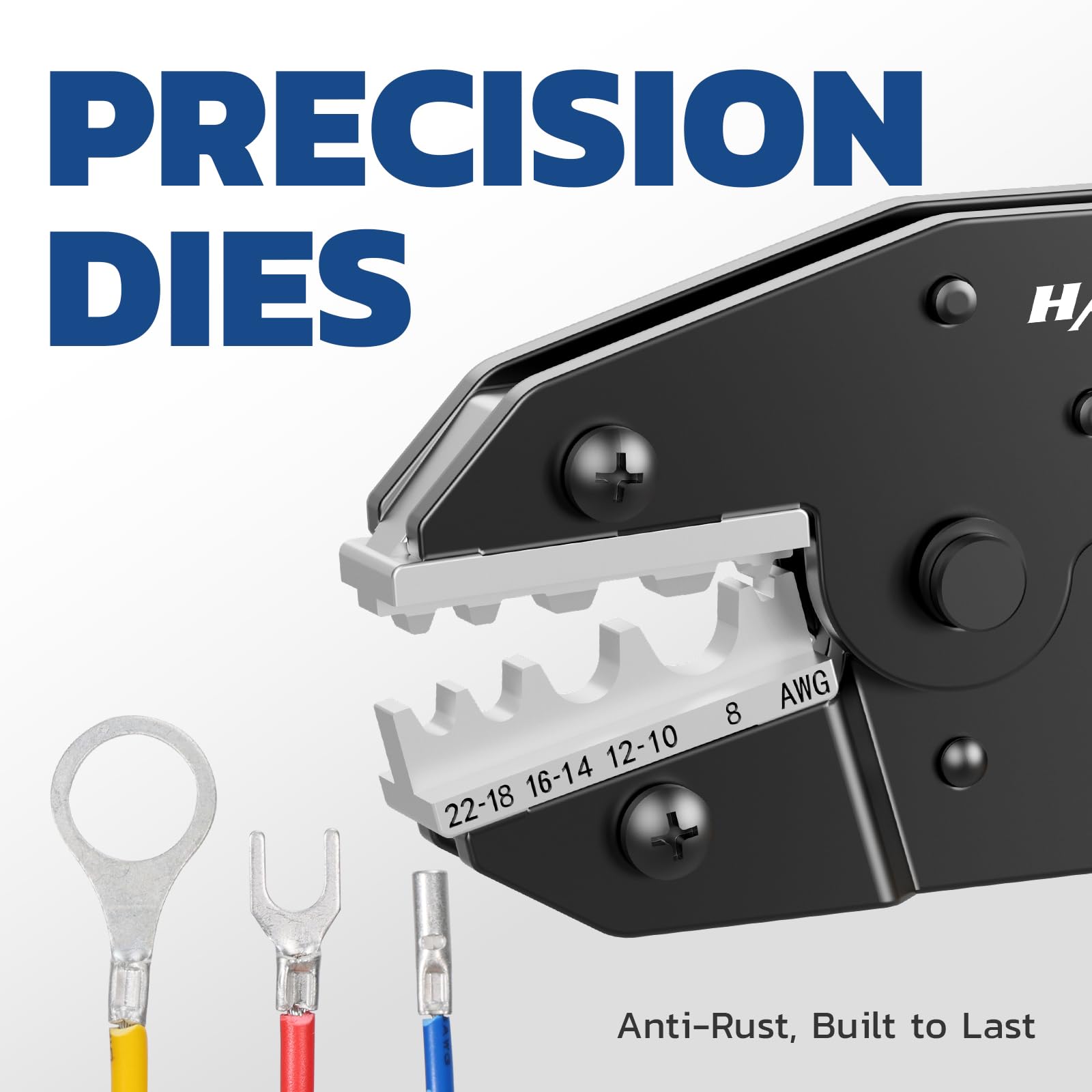

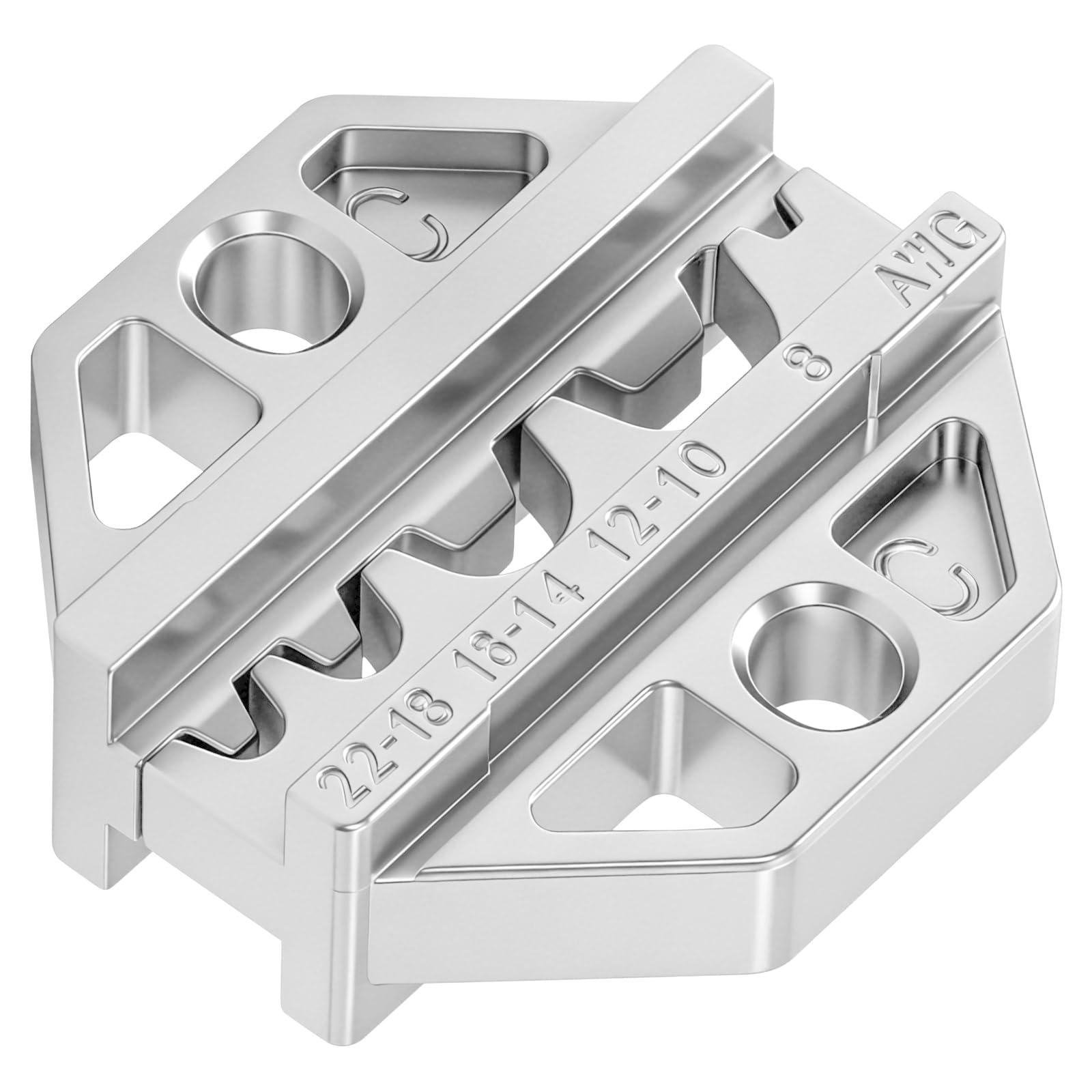

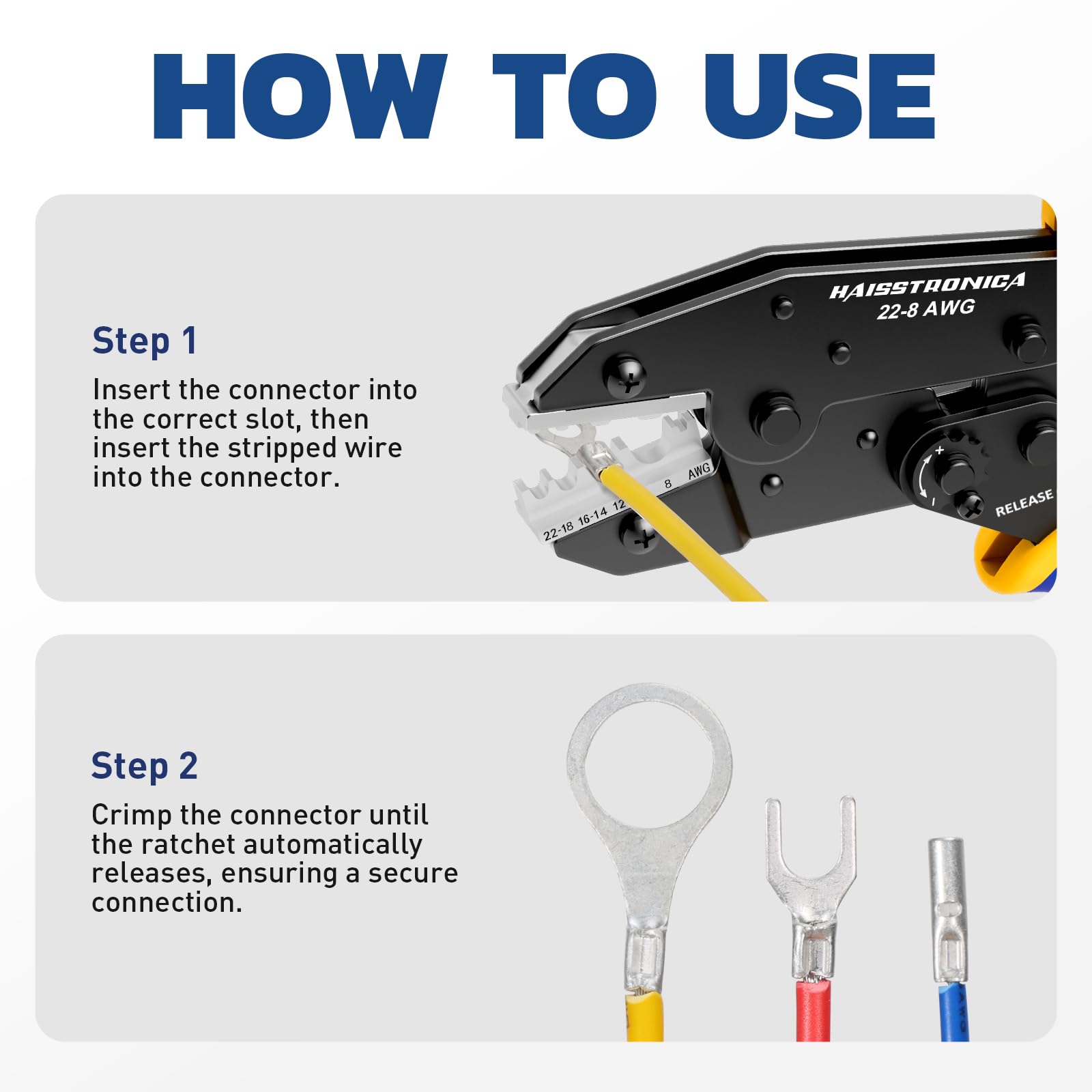

| C — Non-insulated terminals; not copper lugs | 22–14, 12–10, 8, 6 AWG | Marked C non-insulated-terminal profile | No built-in ratchet; uses HS-8327 tool | HX1578: 1 selected die + 2 fixing screws |

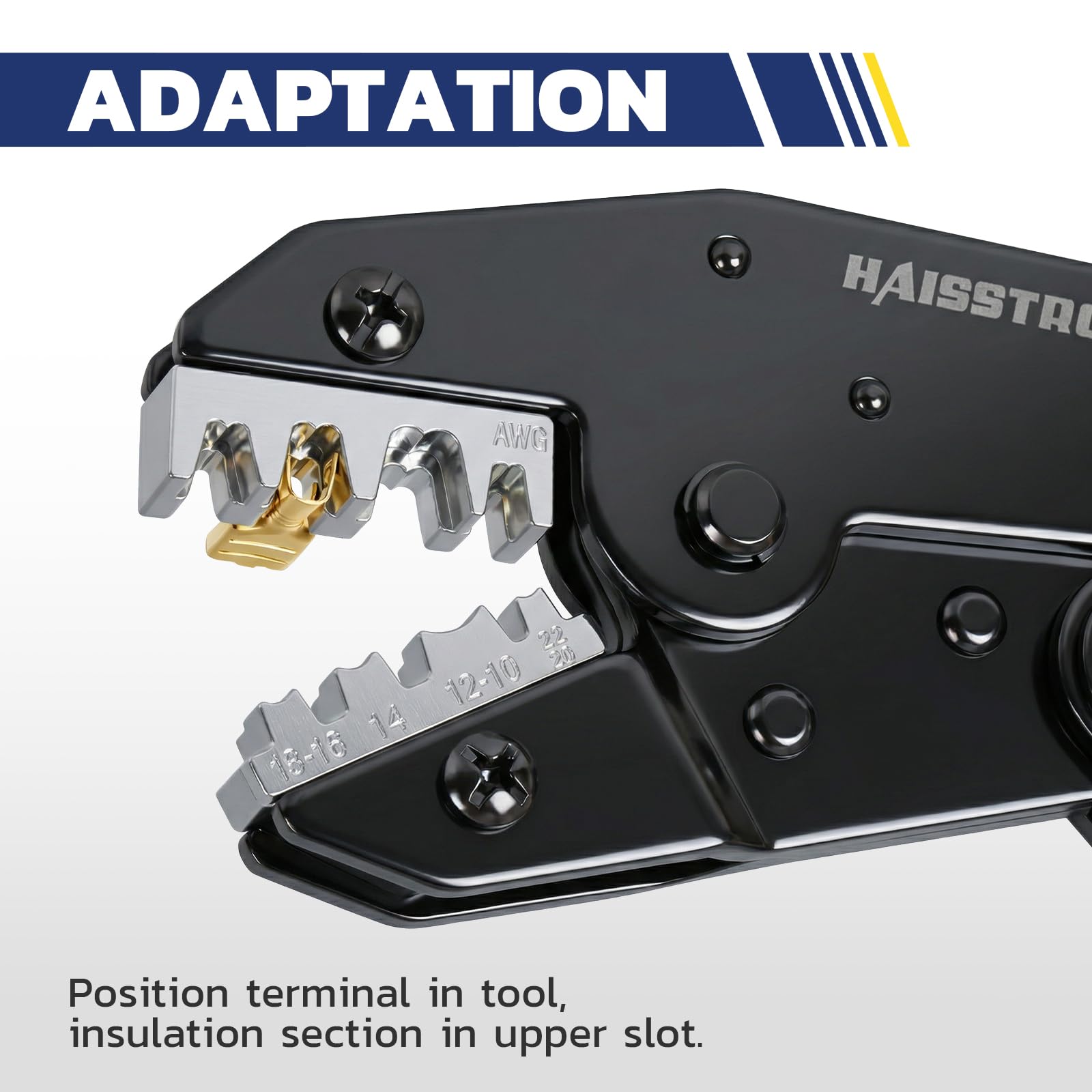

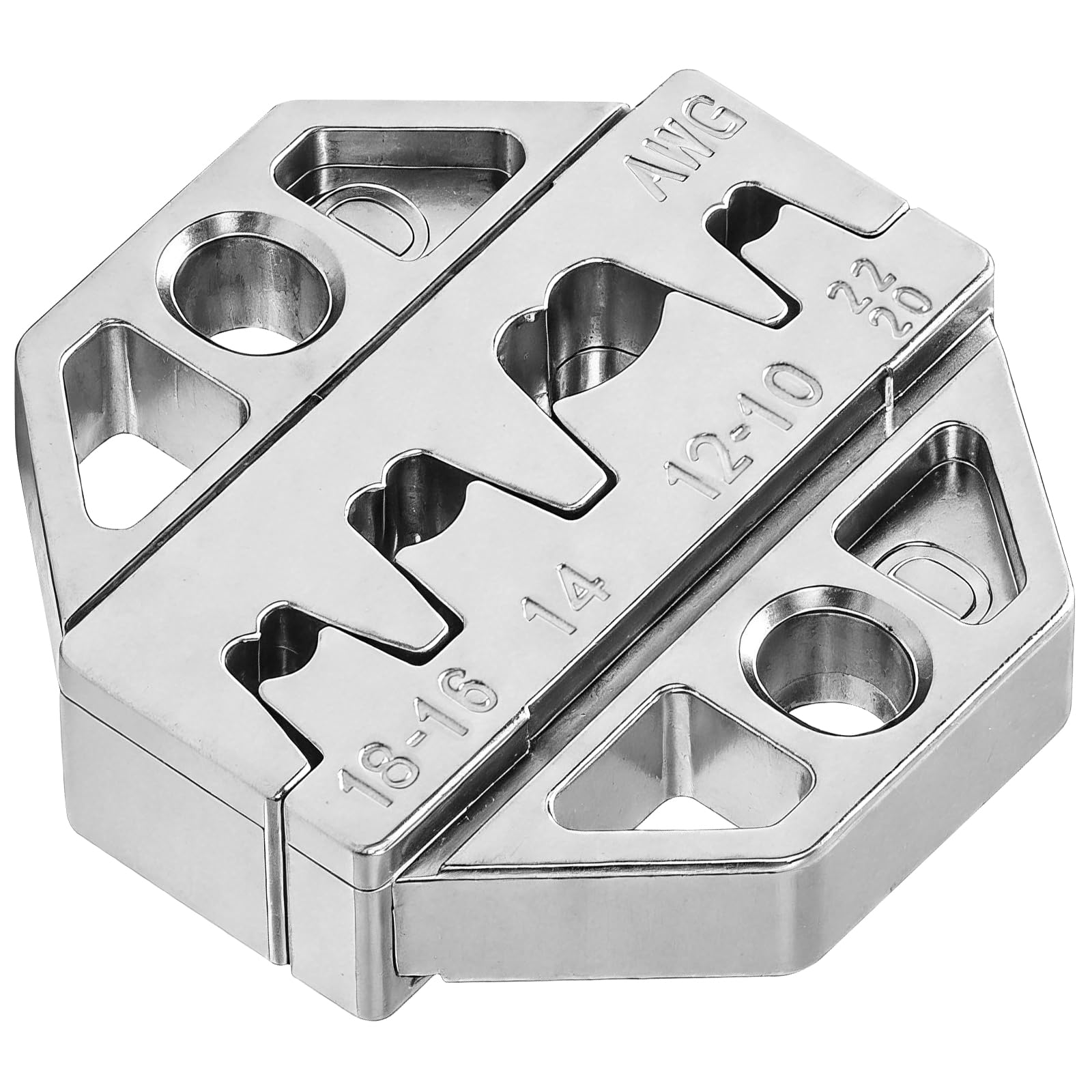

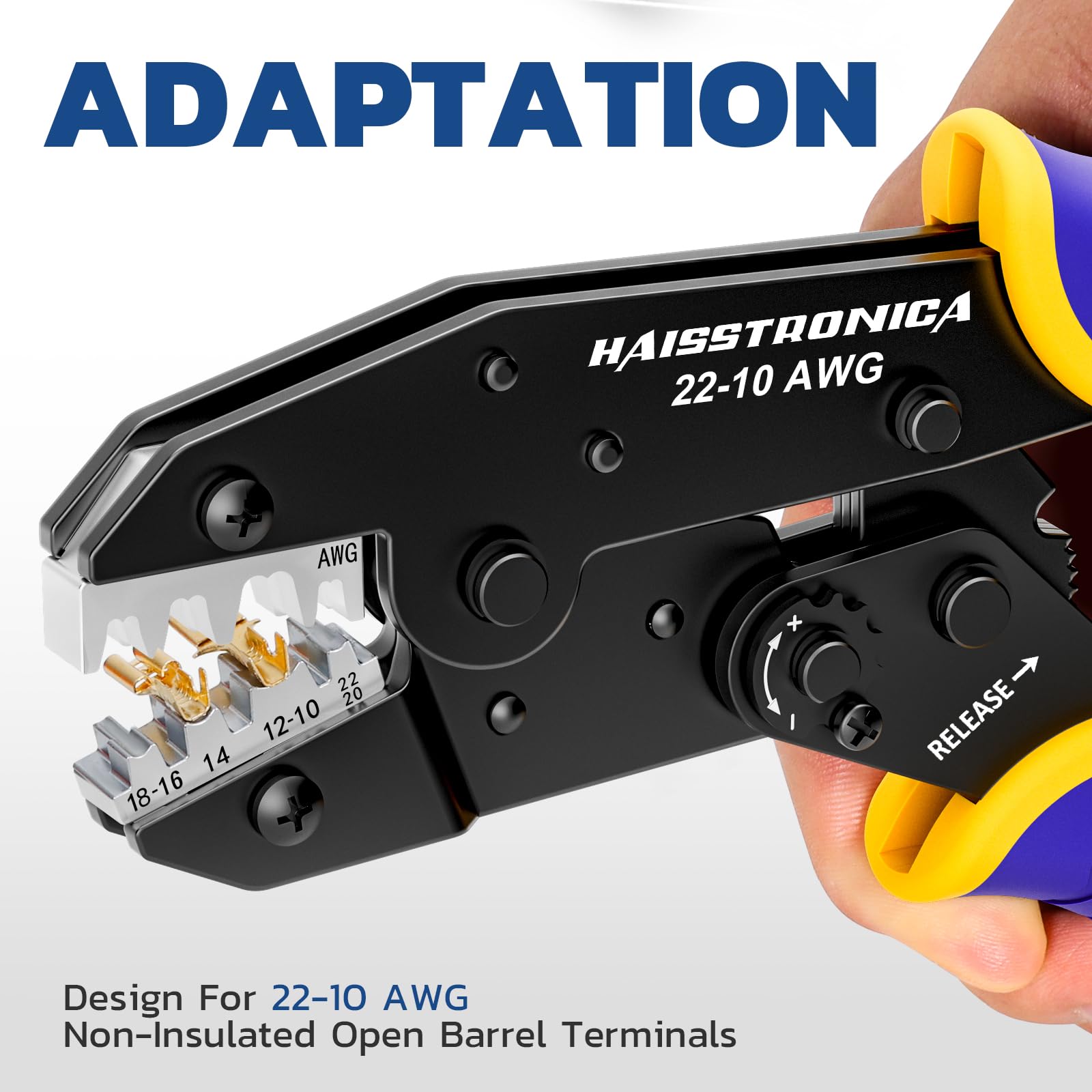

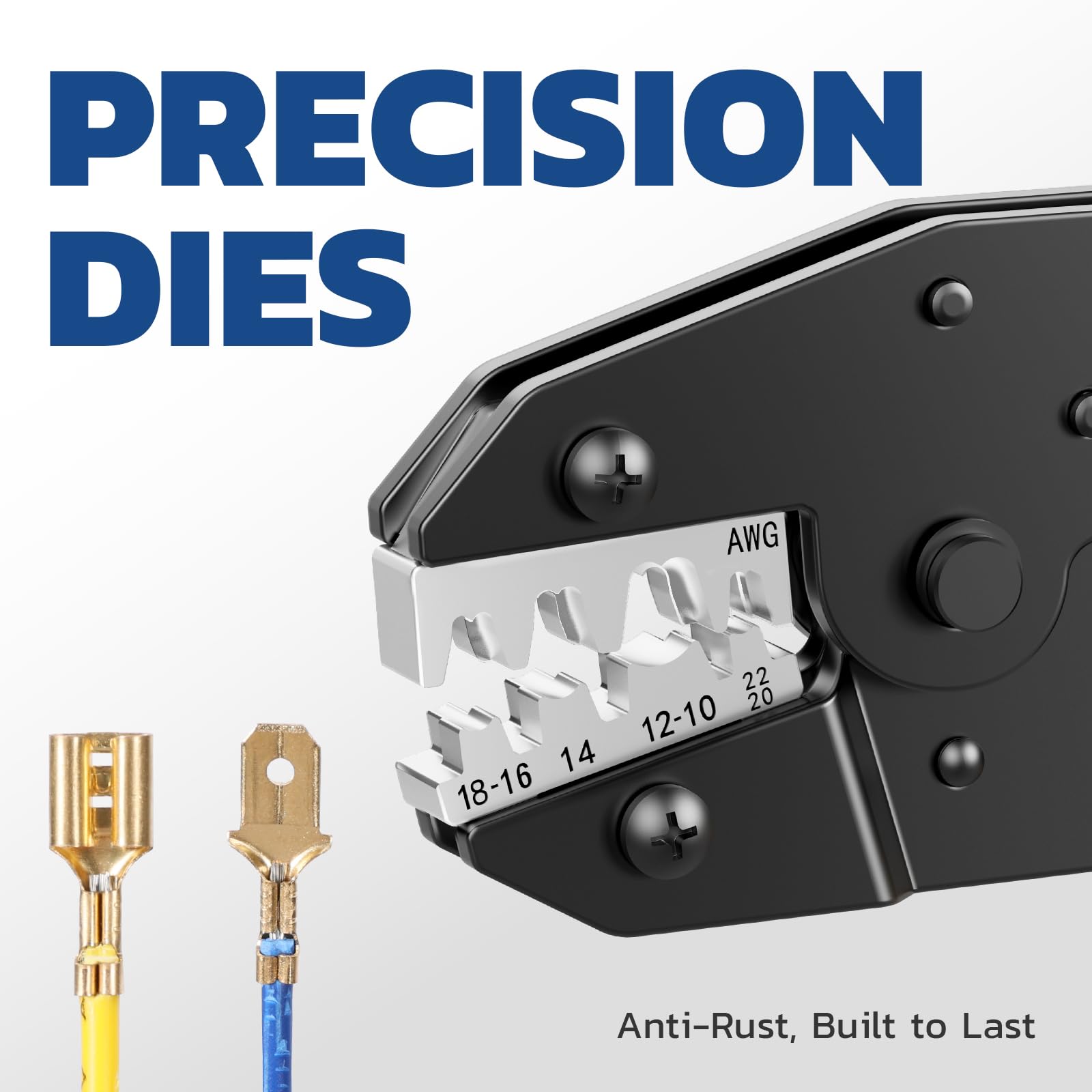

| D — Non-insulated terminals | 20, 18–16, 14, 12–10 AWG | Marked D non-insulated-terminal profile | No built-in ratchet; uses HS-8327 tool | HX1579: 1 selected die + 2 fixing screws |

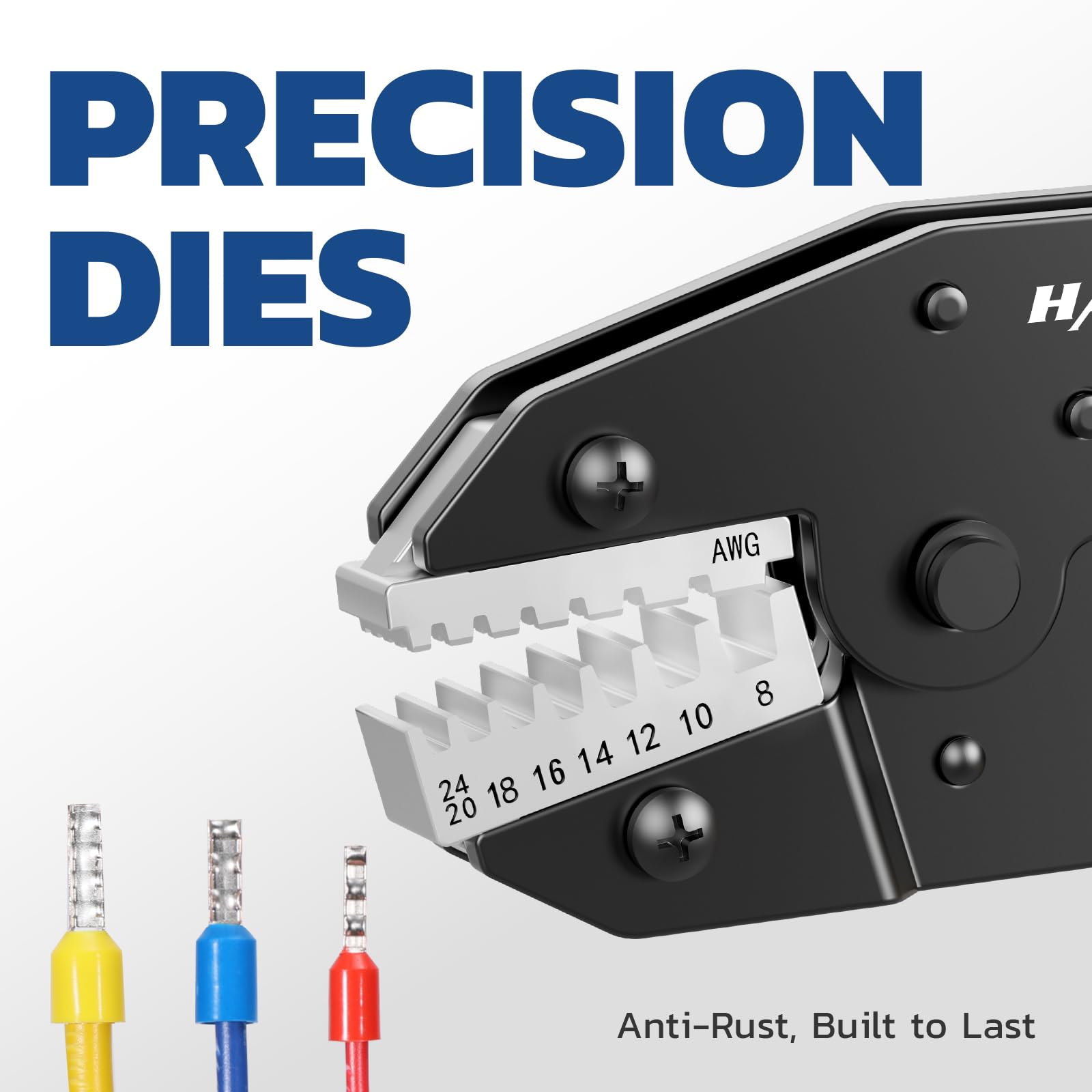

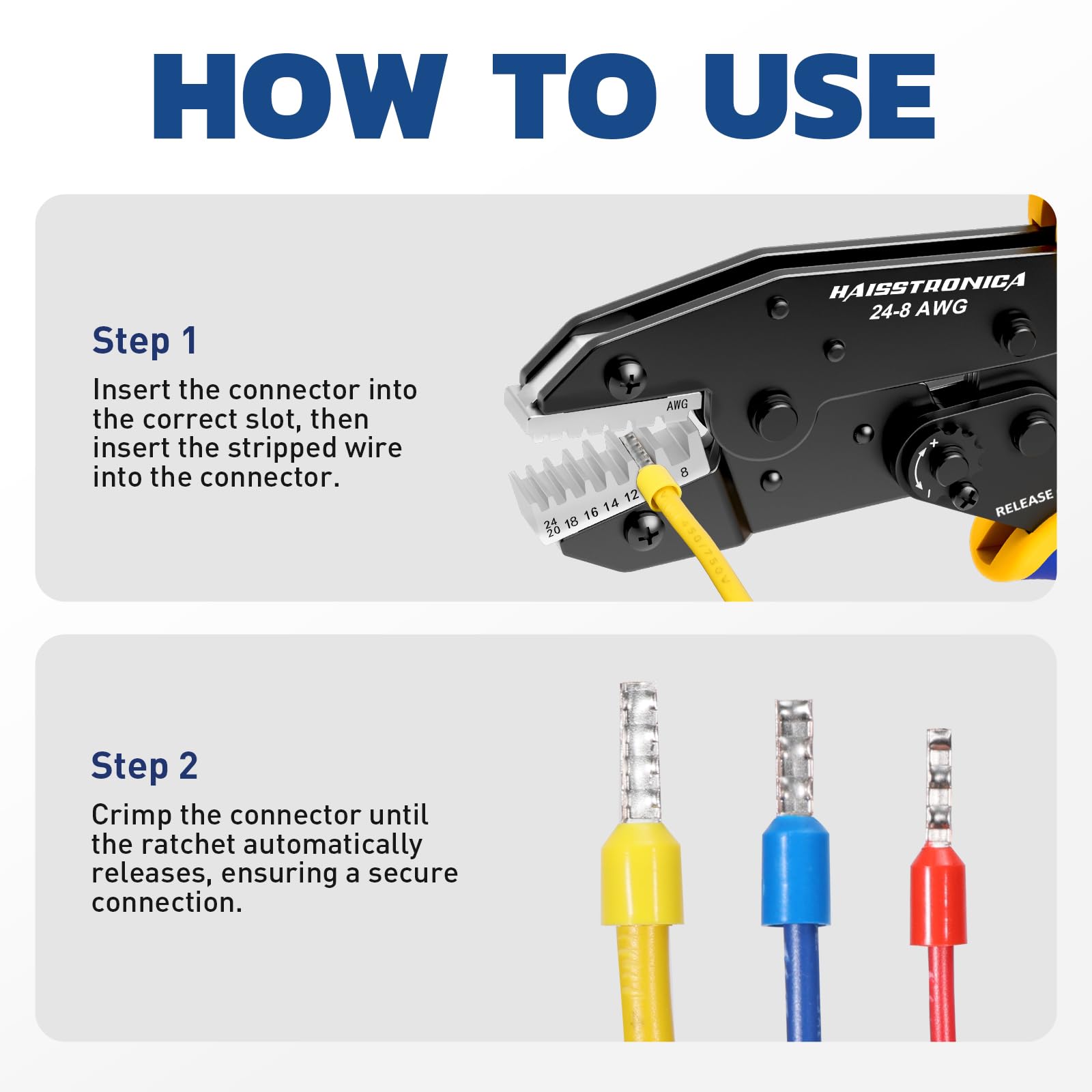

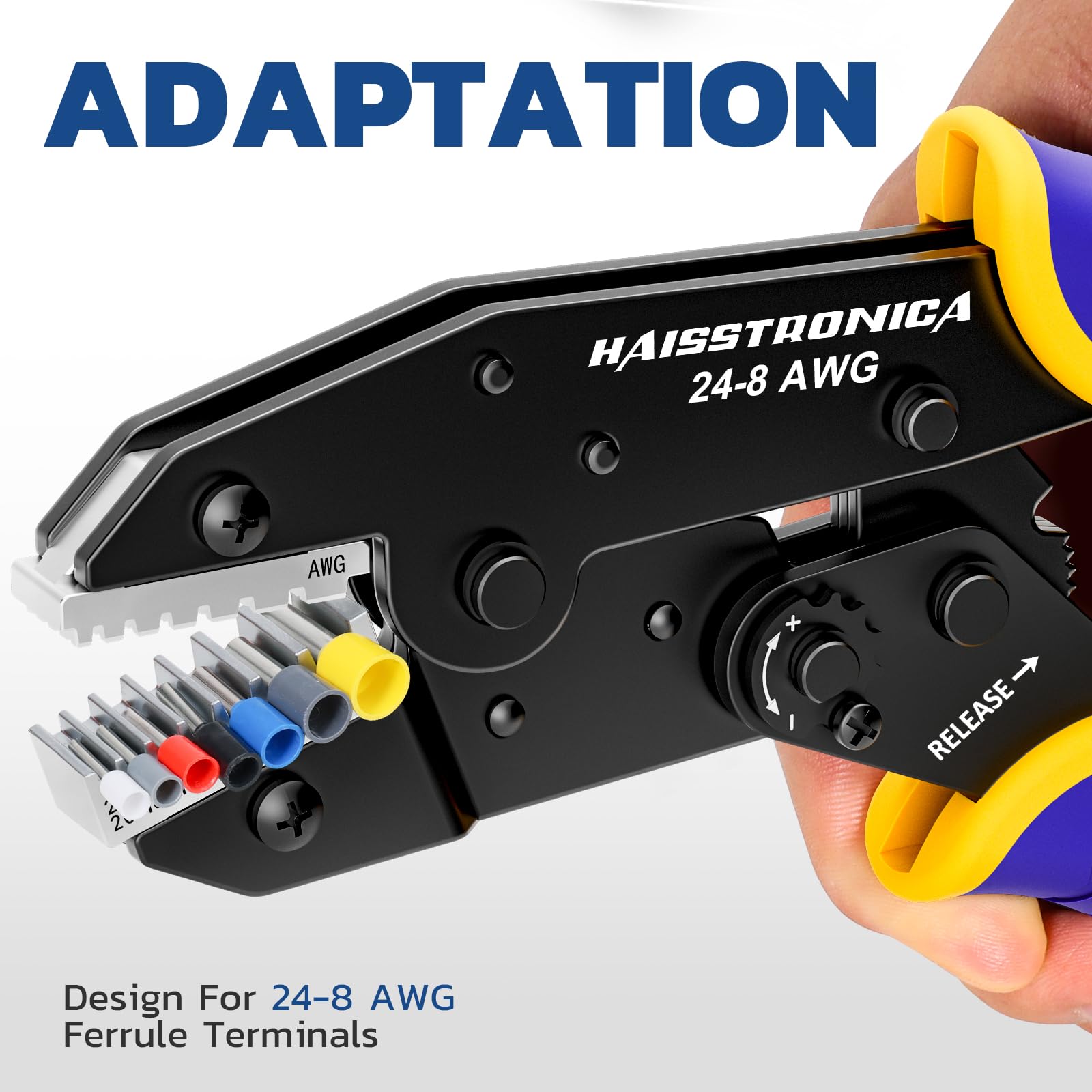

| E — Ferrule terminals and insulated cable end-sleeves | 24–8 AWG | Marked E ferrule / end-sleeve profile | No built-in ratchet; uses HS-8327 tool | HX1580: 1 selected die + 2 fixing screws |

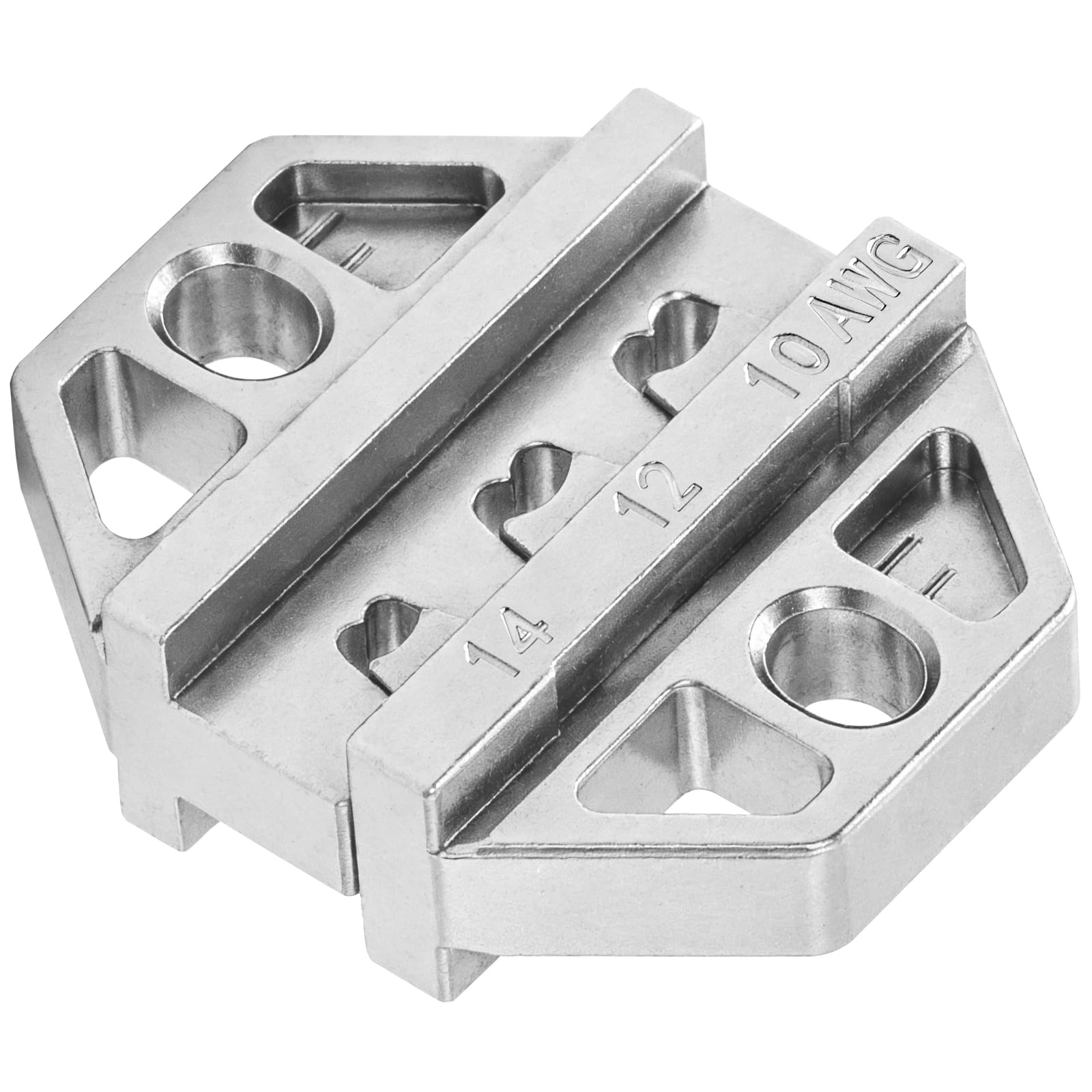

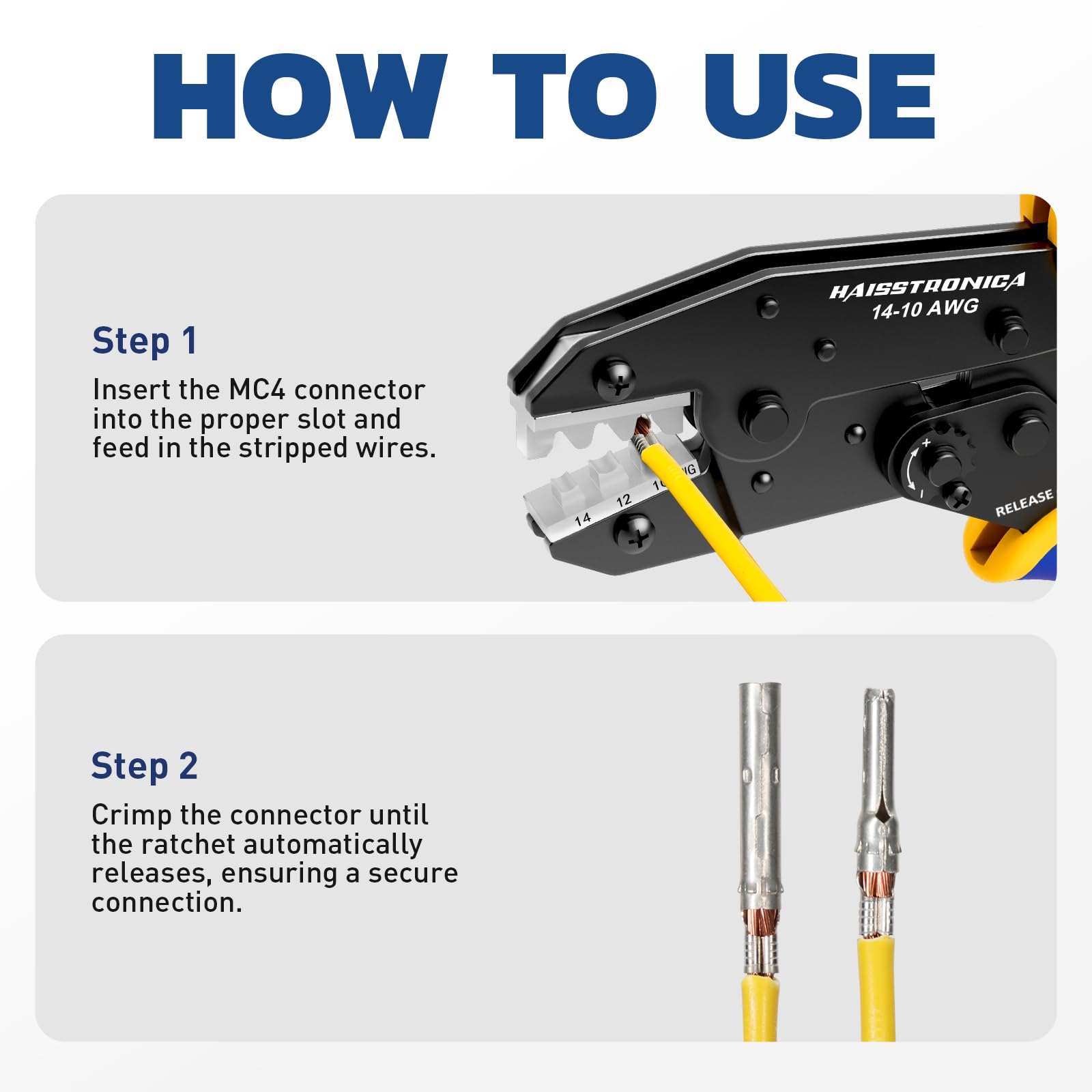

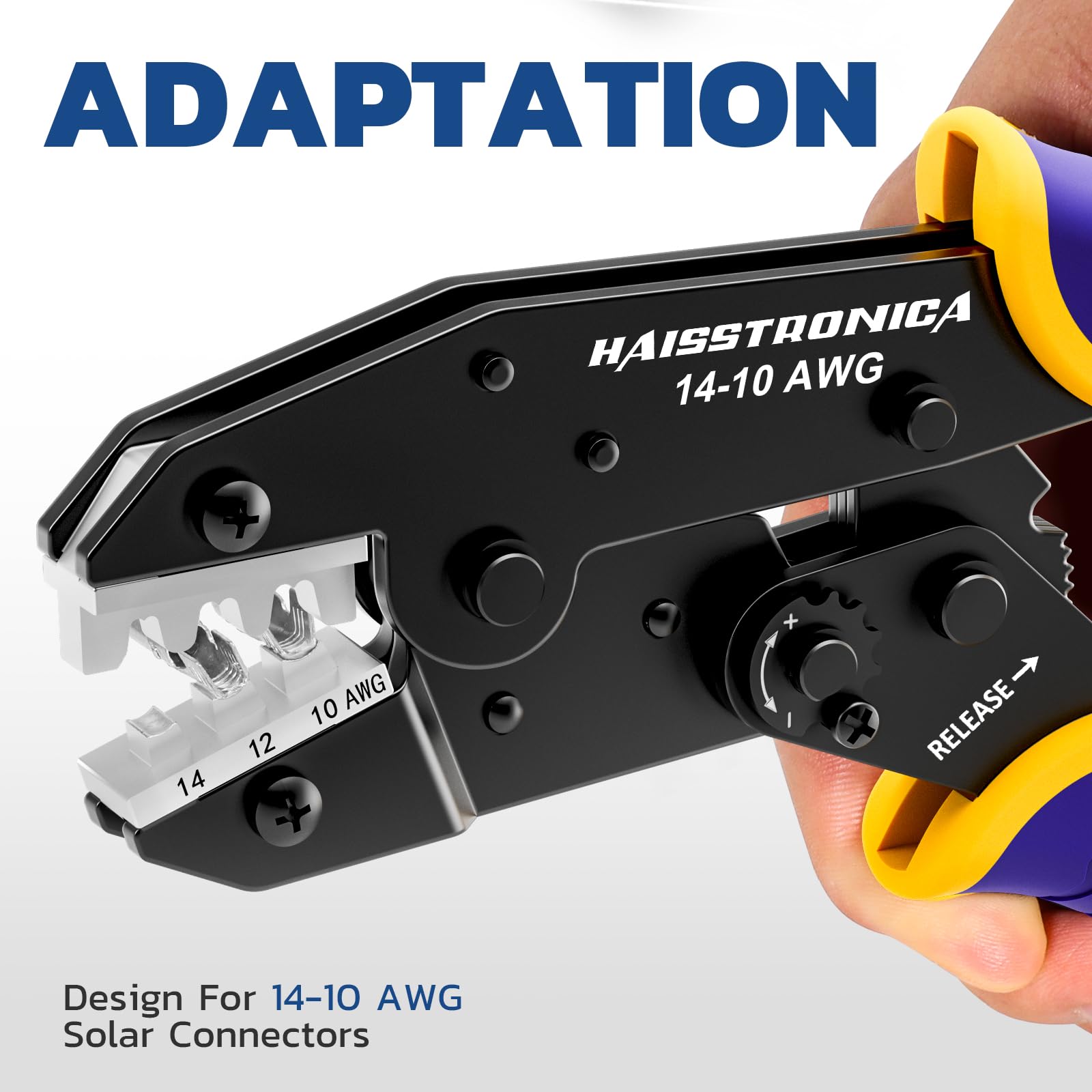

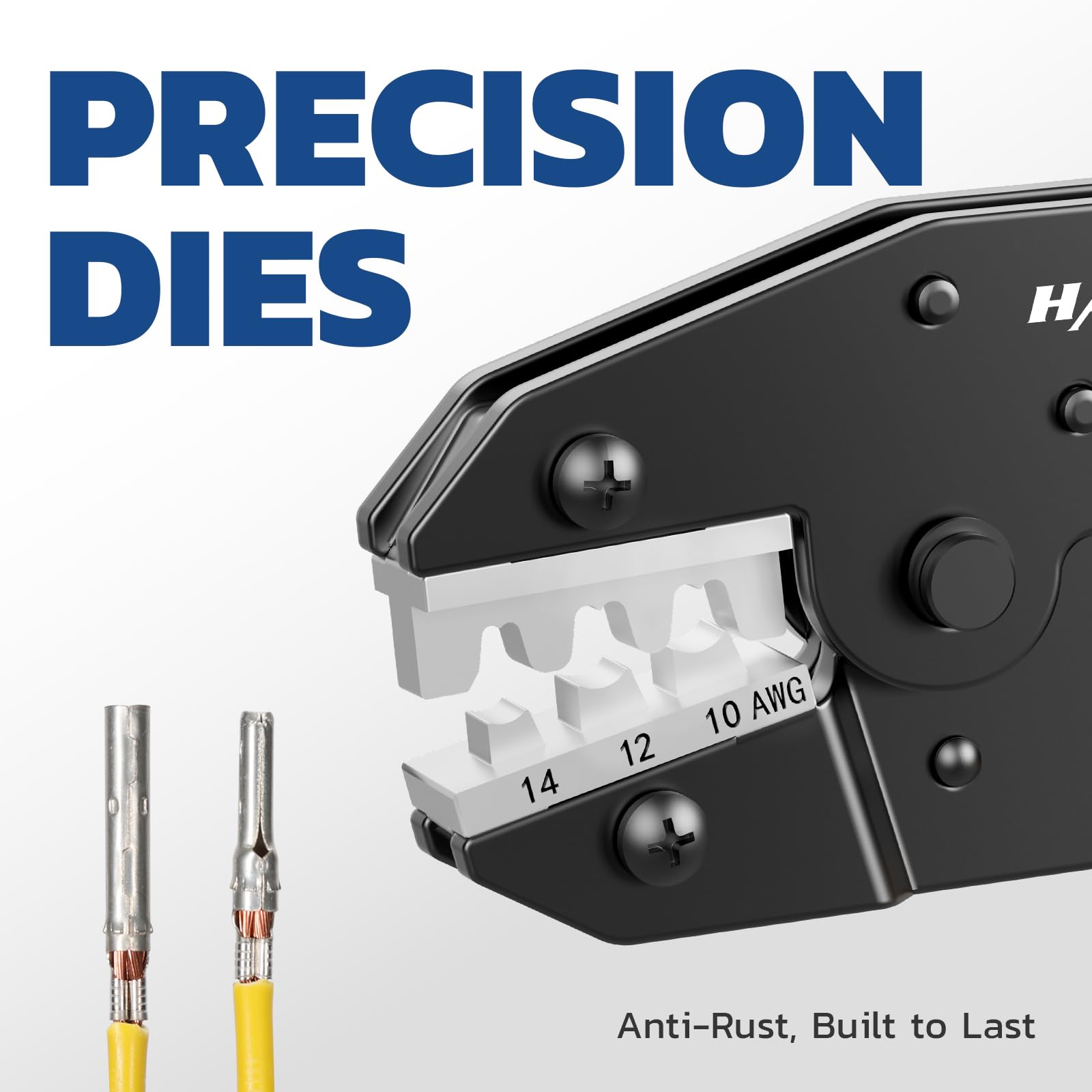

| F — Solar connector contacts | 14, 12, 10 AWG | Marked F solar-contact profile | No built-in ratchet; uses HS-8327 tool | HX1581: 1 selected die + 2 fixing screws |
Choose a die for automotive, solar, insulated, non-insulated, heat-shrink, or other compatible wire-terminal projects. Confirm the terminal manufacturer specification before crimping.
Do not select only by AWG. Match the terminal construction, conductor size, and required crimp shape to the exact A–F variant image and specification. A and B have the same wire ranges but different terminal profiles; C and D are also different profiles. Variant C is not suitable for copper lugs. Confirm compatibility with the terminal manufacturer before use.
Do the variants share one profile?
No. Variants A-F use different ranges or terminal profiles.
Which crimping tool fits these dies?
They are designed for the Haisstronica HS-8327 tool; verify compatibility before installation.
Are the fixing screws included?
Yes. The selected die includes two screws.
