Waterproof heat shrink tubing insulates, seals, and reinforces an existing wire splice, terminal, cable, or wire bundle. Choose a 3:1 kit for mixed repair sizes, a 4:1 adhesive-lined kit when more recovery is needed, or a tubing roll when the starting diameter and required length are already known.
The specifications below use current product and variant data from this collection. Where wall thickness or temperature is not supplied in the product data, it is shown as not listed instead of being estimated.
| Before Diameter | Recovered Diameter | Shrink Ratio | Wall Thickness | Length | Temperature/Application |
|---|---|---|---|---|---|
| 1/4 in / 6.4mm roll | Approx. 2.1mm | 3:1 | Not listed; dual-wall, adhesive-lined construction | 65 ft continuous roll | Product temperature range not listed; medium wire splices, strain relief, and color coding |
| 1/8, 3/16, 1/4, 3/8, 1/2, 3/4, 1, or 2 in | Approx. one quarter of selected diameter | 4:1 | Not listed; adhesive-lined dual-wall construction | 10 ft total per selected size: 5 ft black + 5 ft red | Product temperature range not listed; automotive, marine, battery cable, and electrical repairs |
| Seven sizes from 3/32 to 3/4 in | Approx. one quarter of starting diameter | 4:1 | Not listed; adhesive-lined dual-wall construction | 550 or 600 pre-cut pieces; individual piece lengths not listed | Product temperature range not listed; automotive, marine, and general electrical wiring |
| Starting diameters not listed in current product data | One third of starting diameter | 3:1 | Not listed; self-adhesive construction | 220 or 420 pre-cut pieces; individual piece lengths not listed | Product temperature range not listed; automotive, marine, and DIY wiring protection |
Use adhesive-lined tubing over completed automotive, marine, trailer, equipment, and household wiring repairs to add insulation, moisture resistance, abrasion protection, strain relief, bundling, or color identification. Tubing does not create the electrical connection by itself.
Use limits: Do not use tubing as a substitute for a crimp, solder joint, or terminal. Avoid open flames, and do not use a product where its listed temperature, chemical, voltage, or environmental rating does not match the application. If the repair still needs an electrical connection, compare heat shrink wire connectors, solder seal wire connectors, or butt connectors.
Select a supplied diameter that clears the largest component, then confirm its recovered diameter will fit tightly around the smallest section.
Use 3:1 for common wire and splice repairs. Choose 4:1 when the tubing must pass over a larger connector and still recover tightly around a smaller cable.
No. Complete the crimp, solder joint, splice, or terminal connection first; the tubing provides insulation, sealing, and protection.
Haisstronica Heat Shrink Tubing
Haisstronica heat shrink tubing is protective insulation for wiring repairs, terminals, solder joints, and crimped connections. It helps cover exposed conductors, add strain relief, organize wires, and protect finished repairs from abrasion and moisture.
Tubing vs Connector: Keep the Difference Clear
Heat shrink tubing does not create the electrical connection by itself. It protects an existing crimp, solder joint, terminal, or splice. If you need the connector and insulation in one part, choose heat shrink connectors. If you already made the connection and need coverage, choose tubing.
How to Choose Heat Shrink Tubing
Choose tubing by diameter, shrink ratio, length, color, and repair environment. For wire splices and terminals, the tubing should slide over the connection before heating and shrink tightly without damaging the wire insulation.
Best Applications

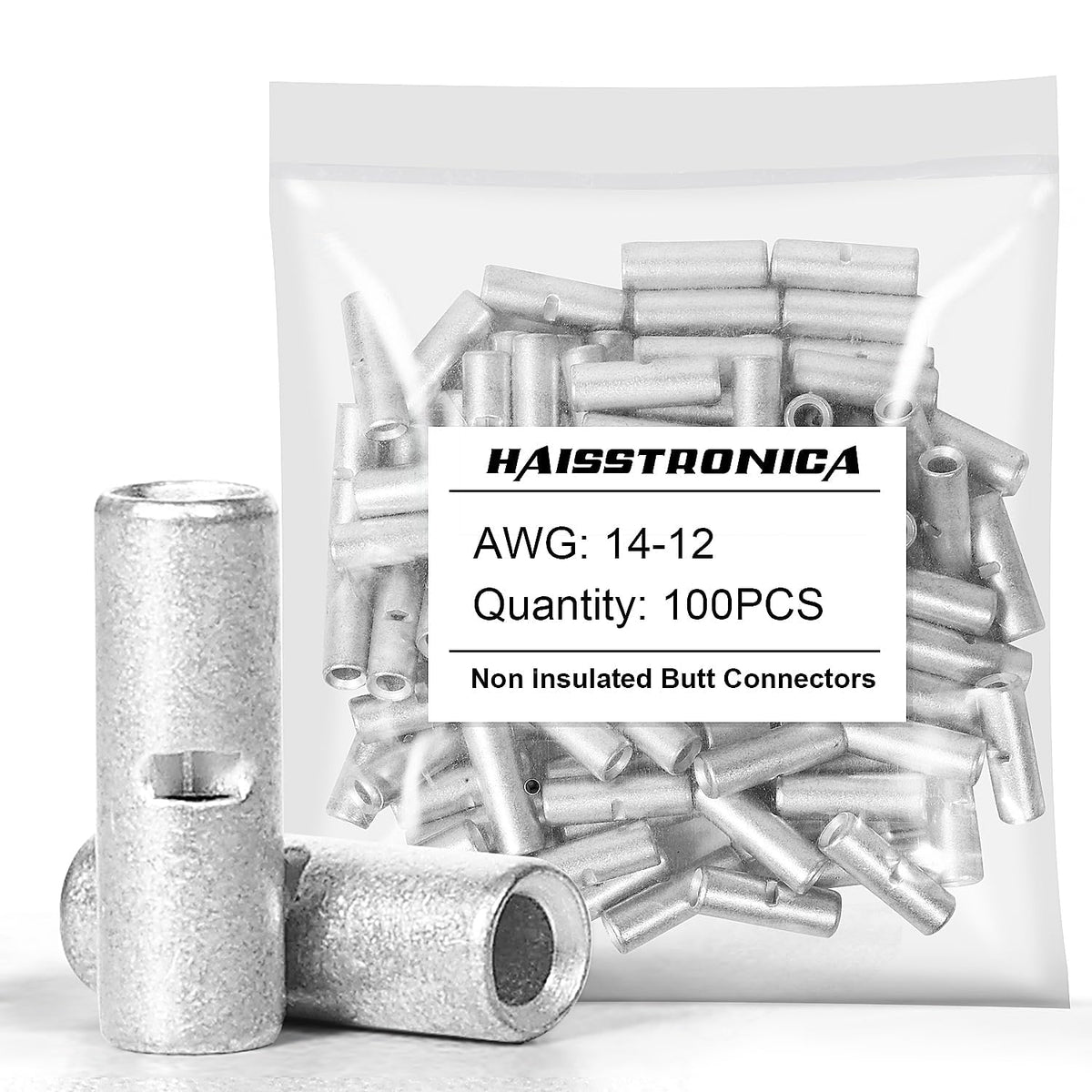

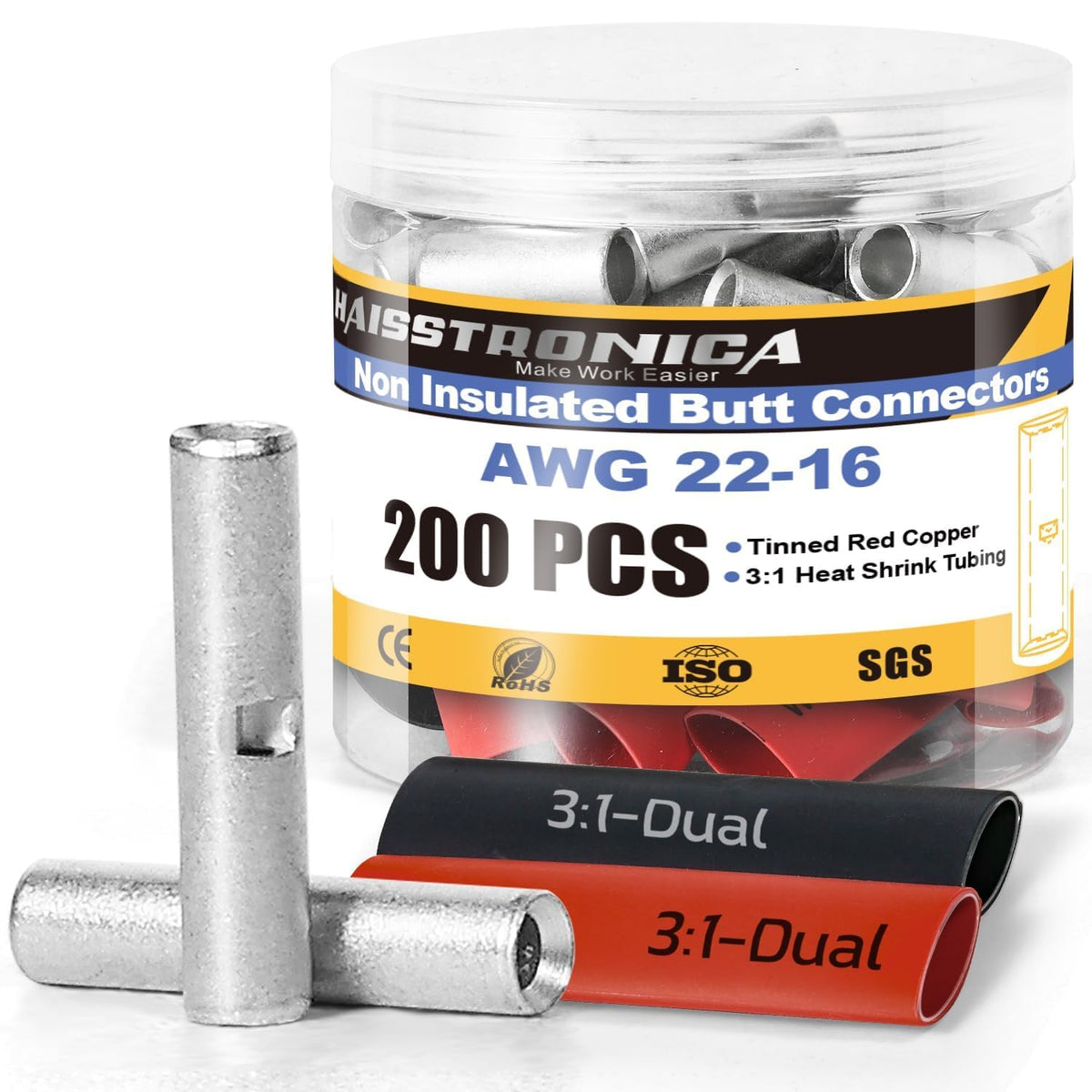

Use heat shrink tubing for automotive wiring, marine wiring, RC projects, audio wiring, tool repairs, terminal protection, cable organization, and added protection around butt connectors, ring terminal kit repairs, solder joints, or non-insulated connectors.
