Haisstronica terminal rings use tinned high-purity copper and thick 3:1 heat-shrink insulation with hot-melt sealant, giving every connectors ring and terminals ring a low-resistance, waterproof connection that stays secure in automotive, marine and home wiring projects.
Heat Shrink Ring Terminals AWG 22-10 - Bagged provide secure stud and grounding connections for automotive, marine, trailer, and compatible electrical wiring. Choose the terminal by wire gauge, ring opening (#8, #10, 1/4 in, 5/16 in, or 3/8 in), and bag quantity (50, 100, or 200 pieces depending on the selected variant).
| Color | AWG | Stud / Screw Size | Bag Quantity | Material / Sealing | Recommended Application |
|---|---|---|---|---|---|

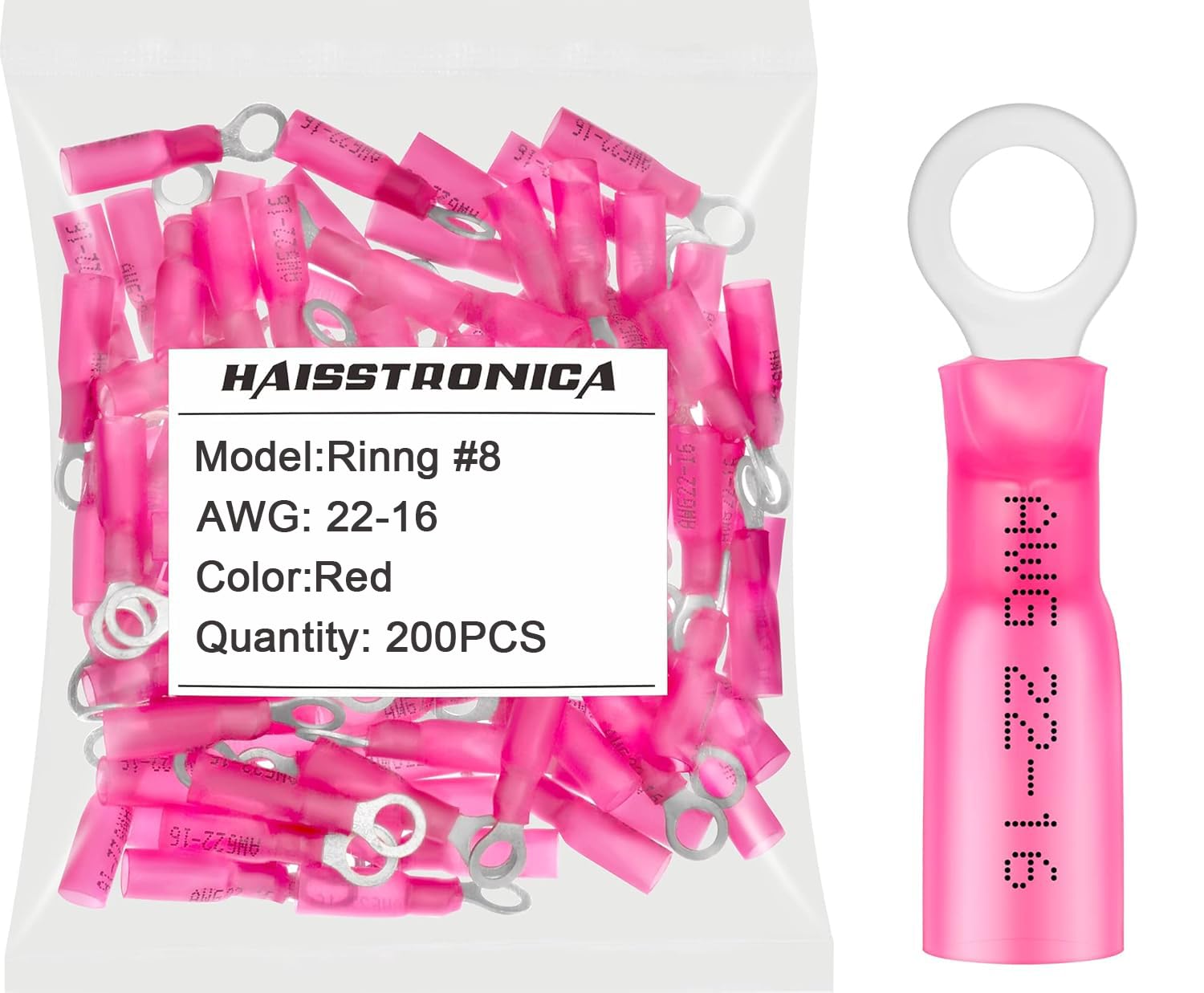

| Red | AWG 22-16 | #8, #10, 1/4 in, 5/16 in, 3/8 in | 100 or 200 PCS | Tinned-copper barrel; brazed seam; 3:1 adhesive-lined heat shrink | Controls, lighting, and small accessory grounds |
| Blue | AWG 16-14 | #8, #10, 1/4 in, 5/16 in, 3/8 in | 100 or 200 PCS | Tinned-copper barrel; brazed seam; 3:1 adhesive-lined heat shrink | Automotive, marine, and trailer circuits |

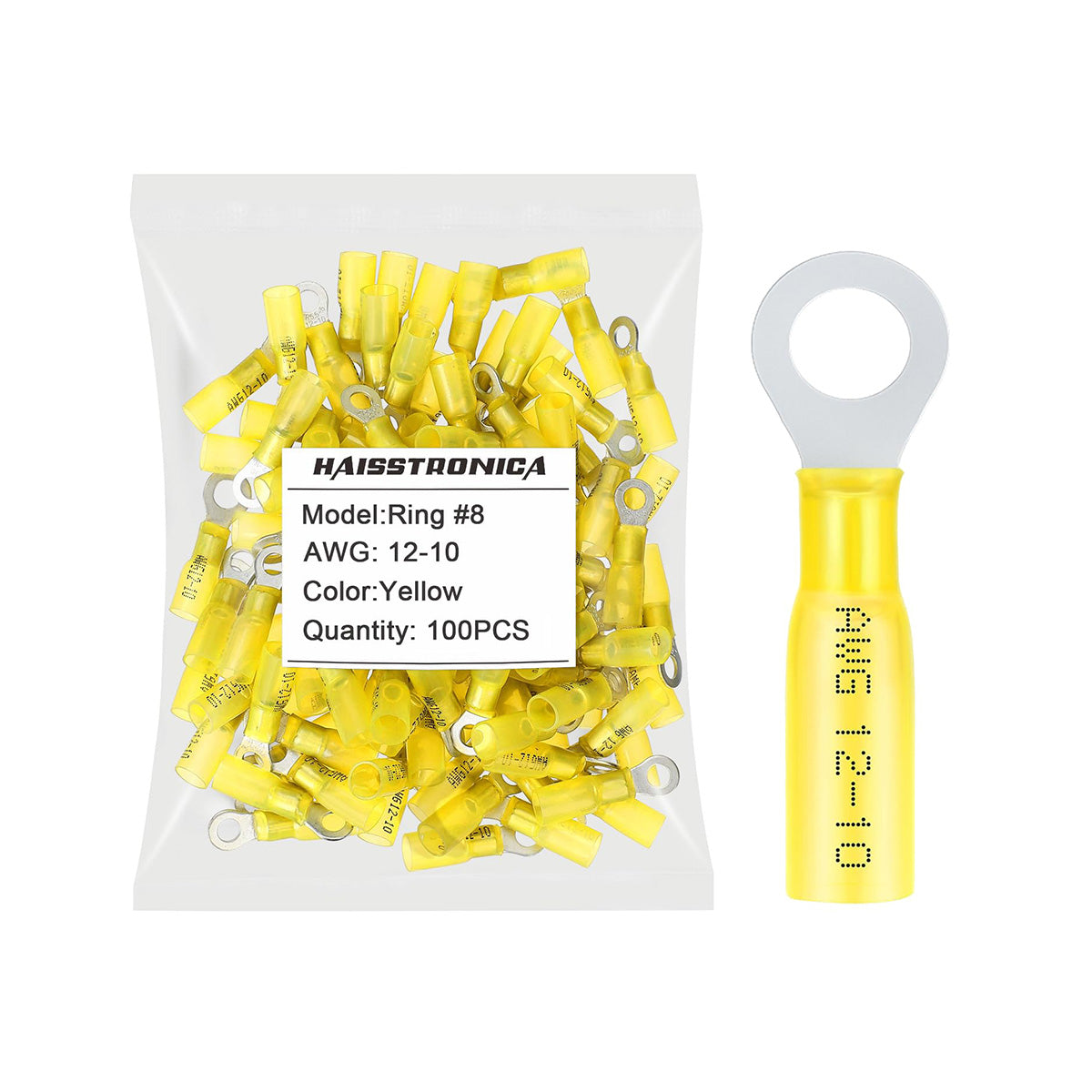

| Yellow | AWG 12-10 | #8, #10, 1/4 in, 5/16 in, 3/8 in | 50 or 100 PCS | Tinned-copper barrel; brazed seam; 3:1 adhesive-lined heat shrink | Higher-current accessories and grounding leads |
Minimum shrink temperature: 176°F / 80°C. Full recovery temperature: 266°F / 130°C. Operating range: -67°F to 257°F / -55°C to 125°C.
Use these bagged heat shrink ring terminals for battery-adjacent wiring, chassis grounds, bus bars, fuse blocks, terminal studs, marine panels, trailers, vehicles, and workshop repairs. The tinned-copper barrel helps resist oxidation, while the adhesive-lined sleeve seals the wire entry after heating. Do not use a terminal whose AWG range or ring opening does not match the conductor and stud.
Match the ring opening to the actual stud or screw. Available options include #8, #10, 1/4 in, 5/16 in, and 3/8 in.
Use red for AWG 22-16, blue for AWG 16-14, and yellow for AWG 12-10. Confirm the conductor gauge before installation.
Yes, when the selected AWG and stud size match the application. The tinned-copper barrel and adhesive-lined 3:1 sleeve are intended for sealed connections exposed to moisture and vibration.
Yes. Crimp the barrel first, perform a pull test, then apply controlled heat until the sleeve recovers and seals.
Compare more ring terminal connectors, view the bottle-packed ring terminal version, use an AWG 22-10 ratchet crimping tool, or finish the seal with the digital heat gun for heat shrink.
Quick Secure Connections
Perfect for outdoor projects, it keeps your connections safe from moisture and corrosion.
Guaranteed Weatherproof
Its innovative design ensures a secure bond every time, making your projects smooth and efficient.
Easy To Use & Saves Time
Save time and effort with connectors that simplify your tasks without compromising quality.
Enhanced Safety
Reduce burn & hazard risks to ensure a safer working environment, while being 100% safe for electronics.
Fits All Projects
From automotive repairs to home improvements, it’s the go-to solution for any wiring challenge.
Lasting Reliability
With high-quality materials and construction, it delivers reliable connections that stand the test of time.
Subscribe for Extra 5% OFF Your First order
Haisstronica’s heat-shrink terminal rings are designed so the smallest part of your system never holds you back. Each heat shrink ring terminal uses a high-purity, tinned-copper core that resists oxidation, keeps contact surfaces clean, and lowers resistance across the ring electrical connector. Whether you’re landing a wire ring connector on a bus bar, battery post, or chassis stud, these ring wire terminals move current the way it was meant to flow.
Around that copper core, a thick 3:1 polyolefin sleeve turns every crimp into a sealed joint. After your ring terminal crimpers bite down, the tubing shrinks tight and the hot-melt adhesive floods the barrel ends, locking the wire ring terminal in place. The result is a neat, factory-style heat shrink ring connectors finish that grips better than bare crimps or open ring connectors electrical—ideal for marine ring terminals, under-hood wiring, and other high-moisture, high-vibration zones.
Inside each barrel, an expertly brazed seam keeps the lug round and strong while you crimp. That craftsmanship means the conductor strands stay captured even when the ring terminal wire is pulled, flexed, or exposed to heat cycles. From small red ring terminals sizes on sensors to heavy-duty yellow wire ring terminal connectors on starters, you get the same rock-solid mechanical bite and consistent contact on every terminal ring connector.
And because reliability is more than a spec sheet, Haisstronica backs every ring electrical connectors kit with attentive support and a risk-free guarantee. If your wire connector ring or terminal ring ever fails to meet expectations, our team is ready to help with sizing, crimping advice, or replacement—so your projects stay powered, sealed, and confident for the long term.
