Haisstronica terminal rings use tinned high-purity copper and thick 3:1 heat-shrink insulation with hot-melt sealant, giving every connectors ring and terminals ring a low-resistance, waterproof connection that stays secure in automotive, marine and home wiring projects.
Heat Shrink Ring Terminals AWG 22-10 - Bottle provide sealed grounding, battery and equipment connections in a portable rigid container. Choose red AWG 22-16, blue AWG 16-14 or yellow AWG 12-10 terminals, then match the #8, #10, 1/4-inch, 5/16-inch or 3/8-inch ring to the equipment stud. Live Bottle packs contain 80, 100, 150 or 200 pieces depending on the selected specification.
| Color | Wire Size | Ring / Stud Size | Pack Quantity | SKU | Material / Sealing |
|---|---|---|---|---|---|
| Red | AWG 22-16 | 3/8 in | 150PCS | HX1139 | Tinned copper; 3:1 adhesive-lined sleeve |
| Red | AWG 22-16 | #10 | 200PCS | HX1136 | Tinned copper; 3:1 adhesive-lined sleeve |
| Red | AWG 22-16 | 1/4 in | 200PCS | HX1137 | Tinned copper; 3:1 adhesive-lined sleeve |
| Red | AWG 22-16 | 5/16 in | 200PCS | HX1138 | Tinned copper; 3:1 adhesive-lined sleeve |
| Red | AWG 22-16 | #8 | 200PCS | HX2119 | Tinned copper; 3:1 adhesive-lined sleeve |
| Blue | AWG 16-14 | 3/8 in | 150PCS | HX1145 | Tinned copper; 3:1 adhesive-lined sleeve |
| Blue | AWG 16-14 | #10 | 200PCS | HX1142 | Tinned copper; 3:1 adhesive-lined sleeve |
| Blue | AWG 16-14 | 1/4 in | 200PCS | HX1143 | Tinned copper; 3:1 adhesive-lined sleeve |
| Blue | AWG 16-14 | 5/16 in | 200PCS | HX1144 | Tinned copper; 3:1 adhesive-lined sleeve |

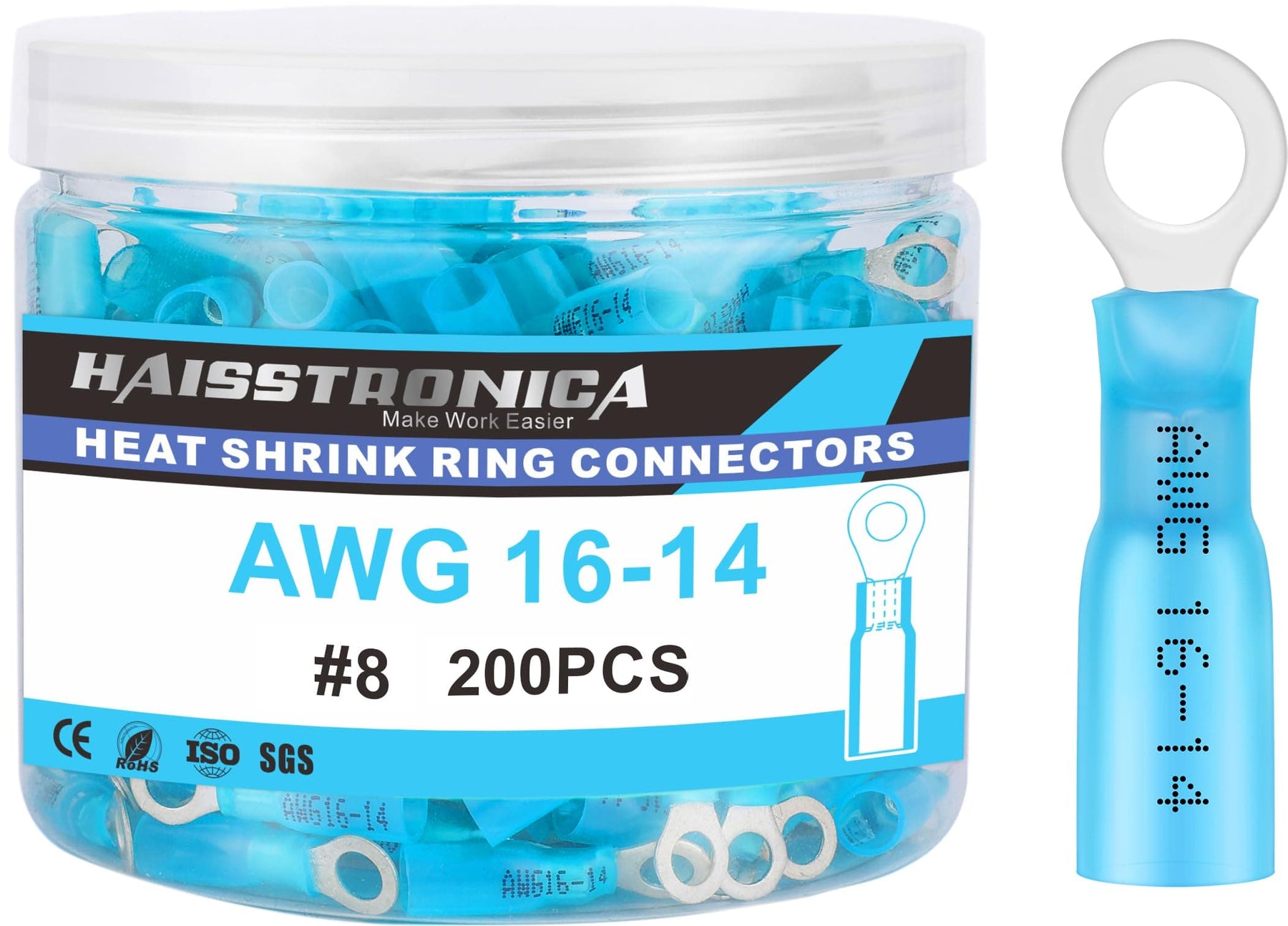

| Blue | AWG 16-14 | #8 | 200PCS | HX2120 | Tinned copper; 3:1 adhesive-lined sleeve |
| Yellow | AWG 12-10 | 3/8 in | 80PCS | HX1150 | Tinned copper; 3:1 adhesive-lined sleeve |
| Yellow | AWG 12-10 | #10 | 100PCS | HX1147 | Tinned copper; 3:1 adhesive-lined sleeve |
| Yellow | AWG 12-10 | 1/4 in | 100PCS | HX1148 | Tinned copper; 3:1 adhesive-lined sleeve |
| Yellow | AWG 12-10 | 5/16 in | 80PCS | HX1149 | Tinned copper; 3:1 adhesive-lined sleeve |

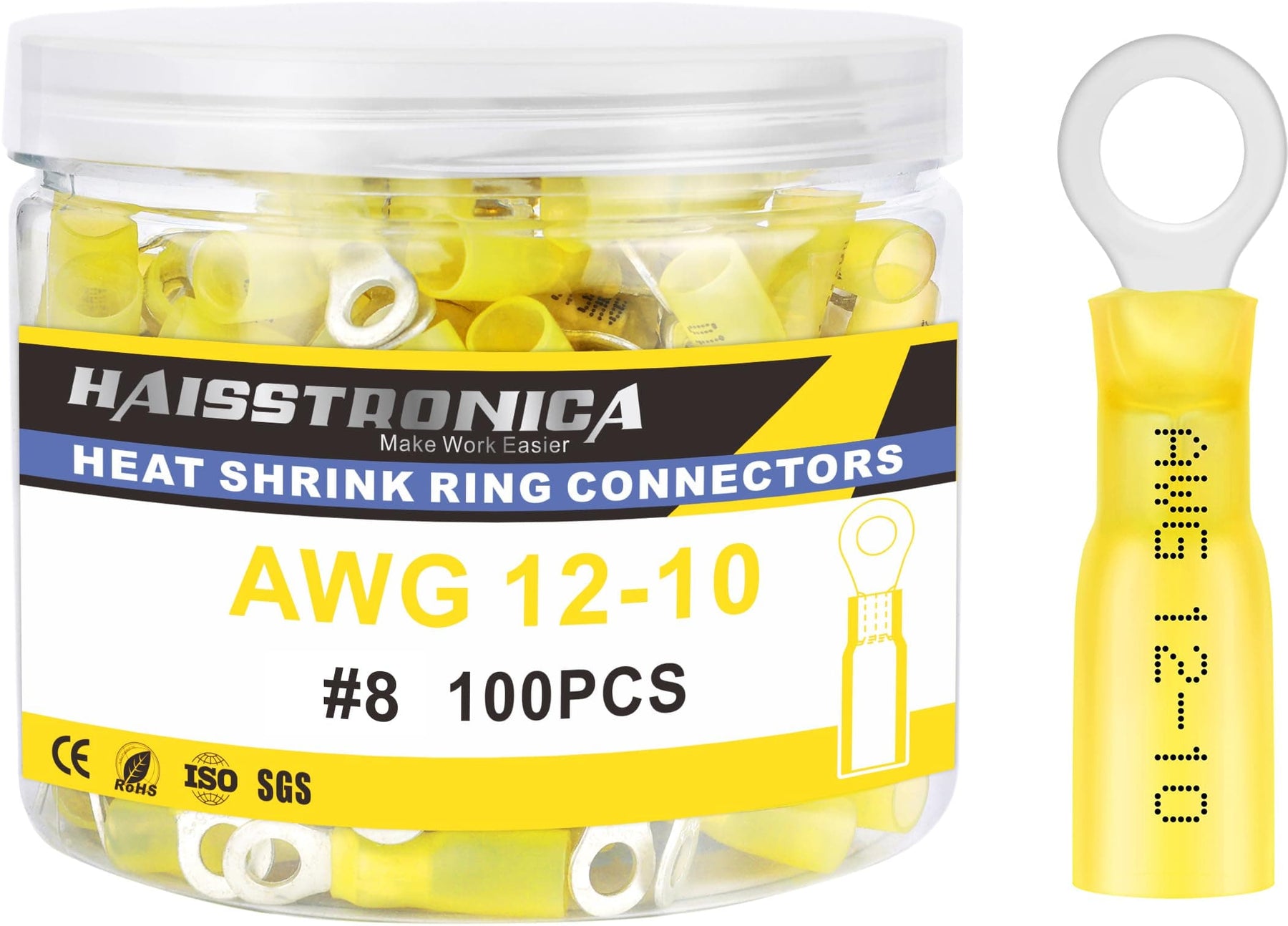

| Yellow | AWG 12-10 | #8 | 100PCS | HX2121 | Tinned copper; 3:1 adhesive-lined sleeve |
Pack quantity changes with the selected color and ring size. Confirm all three variant fields before ordering.

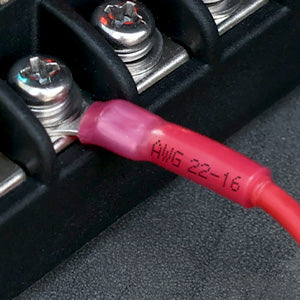

Use these tinned-copper, brazed-seam ring terminals for compatible battery studs, chassis grounds, bus bars, fuse blocks, marine wiring, trailers and automotive accessories. The 3:1 polyolefin sleeve contains hot-melt adhesive that seals around compatible wire insulation after the mechanical crimp passes inspection.
Do not use a ring terminal outside its listed conductor range or on an incompatible stud. Follow the equipment manufacturer’s terminal, current, torque and environmental requirements.
Do not use an open flame or continue heating after full recovery.
Use red for AWG 22-16, blue for AWG 16-14 and yellow for AWG 12-10. Confirm conductor gauge before selecting the terminal.
Match the ring opening to the equipment stud or screw. Bottle variants include #8, #10, 1/4 inch, 5/16 inch and 3/8 inch.

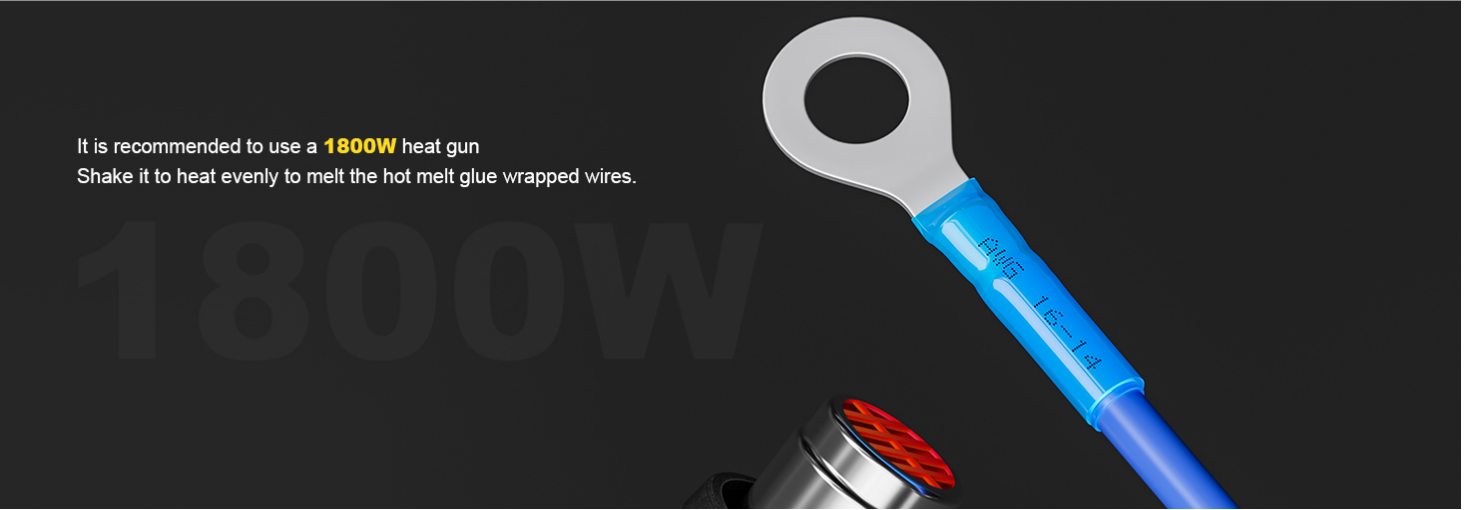

After crimping and pull testing, apply controlled heat from the center outward while rotating the connection. Stop when the sleeve has recovered and adhesive forms an even seal.
The Bottle version uses portable rigid storage for one selected specification. Compare the Bagged version when bag packaging better suits your storage or refill workflow.

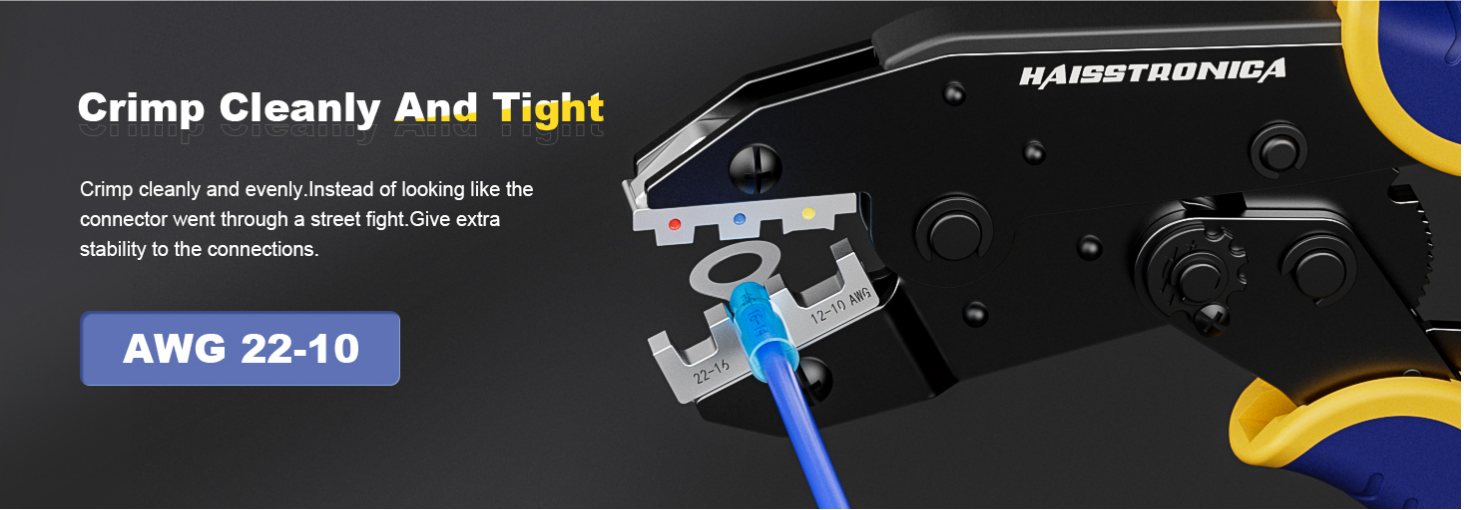

Browse the Ring Terminals Collection, follow the Heat Shrink Connector Installation Guide, compare the Bagged Heat Shrink Ring Terminals, or pair this product with an AWG 22-10 Ratchet Crimping Tool and Mini Heat Gun 350W.
Quick Secure Connections
Perfect for outdoor projects, it keeps your connections safe from moisture and corrosion.
Guaranteed Weatherproof
Its innovative design ensures a secure bond every time, making your projects smooth and efficient.
Easy To Use & Saves Time
Save time and effort with connectors that simplify your tasks without compromising quality.
Enhanced Safety
Reduce burn & hazard risks to ensure a safer working environment, while being 100% safe for electronics.
Fits All Projects
From automotive repairs to home improvements, it’s the go-to solution for any wiring challenge.
Lasting Reliability
With high-quality materials and construction, it delivers reliable connections that stand the test of time.
Subscribe for Extra 5% OFF Your First order

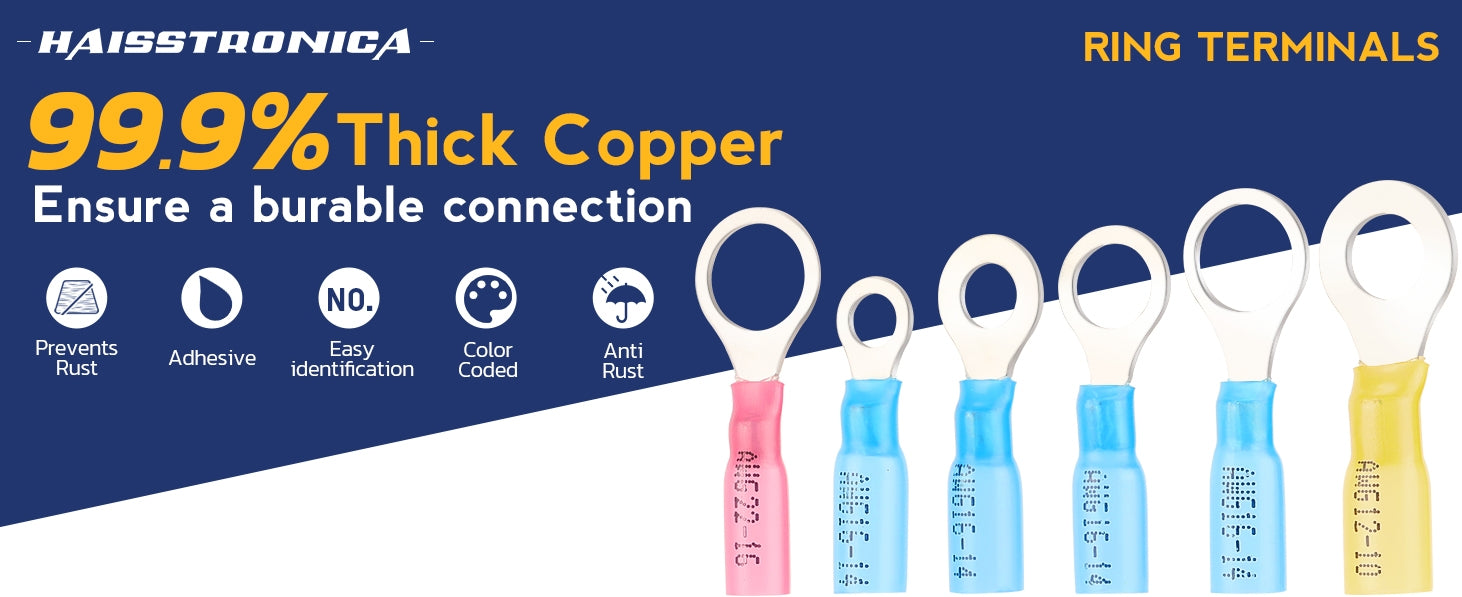

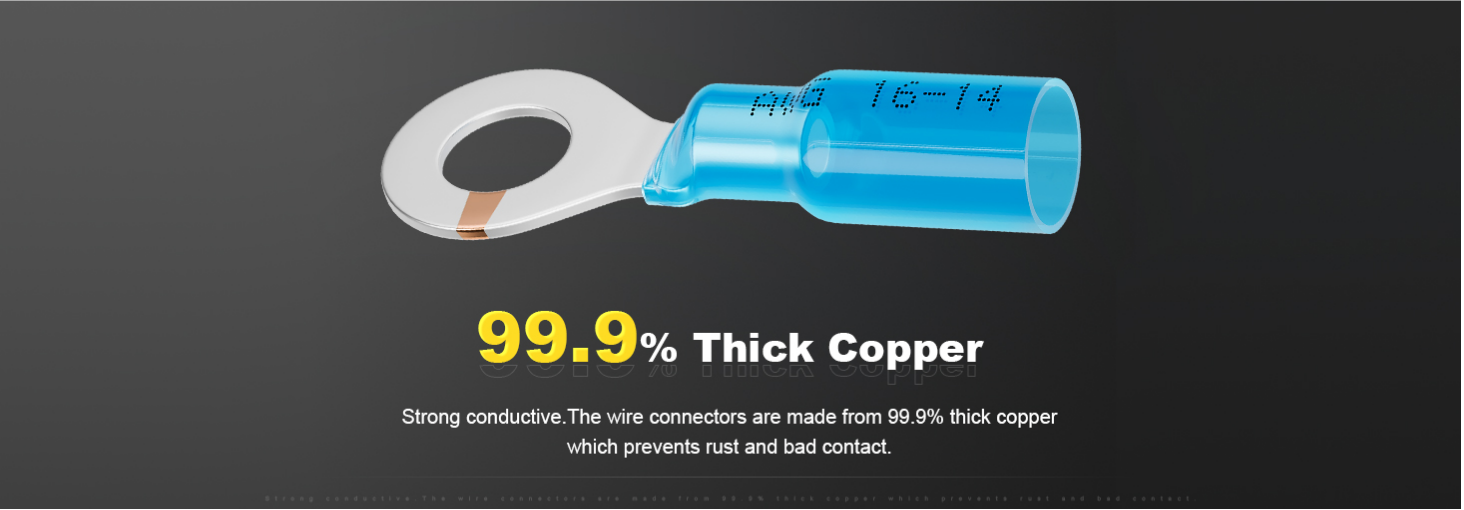

Haisstronica’s heat-shrink terminal rings are designed so the smallest part of your system never holds you back. Each heat shrink ring terminal uses a high-purity, tinned-copper core that resists oxidation, keeps contact surfaces clean, and lowers resistance across the ring electrical connector. Whether you’re landing a wire ring connector on a bus bar, battery post, or chassis stud, these ring wire terminals move current the way it was meant to flow.
Around that copper core, a thick 3:1 polyolefin sleeve turns every crimp into a sealed joint. After your ring terminal crimpers bite down, the tubing shrinks tight and the hot-melt adhesive floods the barrel ends, locking the wire ring terminal in place. The result is a neat, factory-style heat shrink ring connectors finish that grips better than bare crimps or open ring connectors electrical—ideal for marine ring terminals, under-hood wiring, and other high-moisture, high-vibration zones.
Inside each barrel, an expertly brazed seam keeps the lug round and strong while you crimp. That craftsmanship means the conductor strands stay captured even when the ring terminal wire is pulled, flexed, or exposed to heat cycles. From small red ring terminals sizes on sensors to heavy-duty yellow wire ring terminal connectors on starters, you get the same rock-solid mechanical bite and consistent contact on every terminal ring connector.
And because reliability is more than a spec sheet, Haisstronica backs every ring electrical connectors kit with attentive support and a risk-free guarantee. If your wire connector ring or terminal ring ever fails to meet expectations, our team is ready to help with sizing, crimping advice, or replacement—so your projects stay powered, sealed, and confident for the long term.
