Heat Shrink Wire Connectors Kit options cover multiple terminal types across AWG 22-10 for centralized wiring repairs and inventory replenishment. Choose the red 880PCS AWG 22-16 kit, blue 680PCS AWG 16-14 kit or yellow 480PCS AWG 12-10 kit. Each organized assortment includes ring, solder-seal, spade, bullet, fork and butt connectors in gauge-matched colors.
| Kit Size | Color | Wire Range | SKU | Connector Mix |
|---|---|---|---|---|

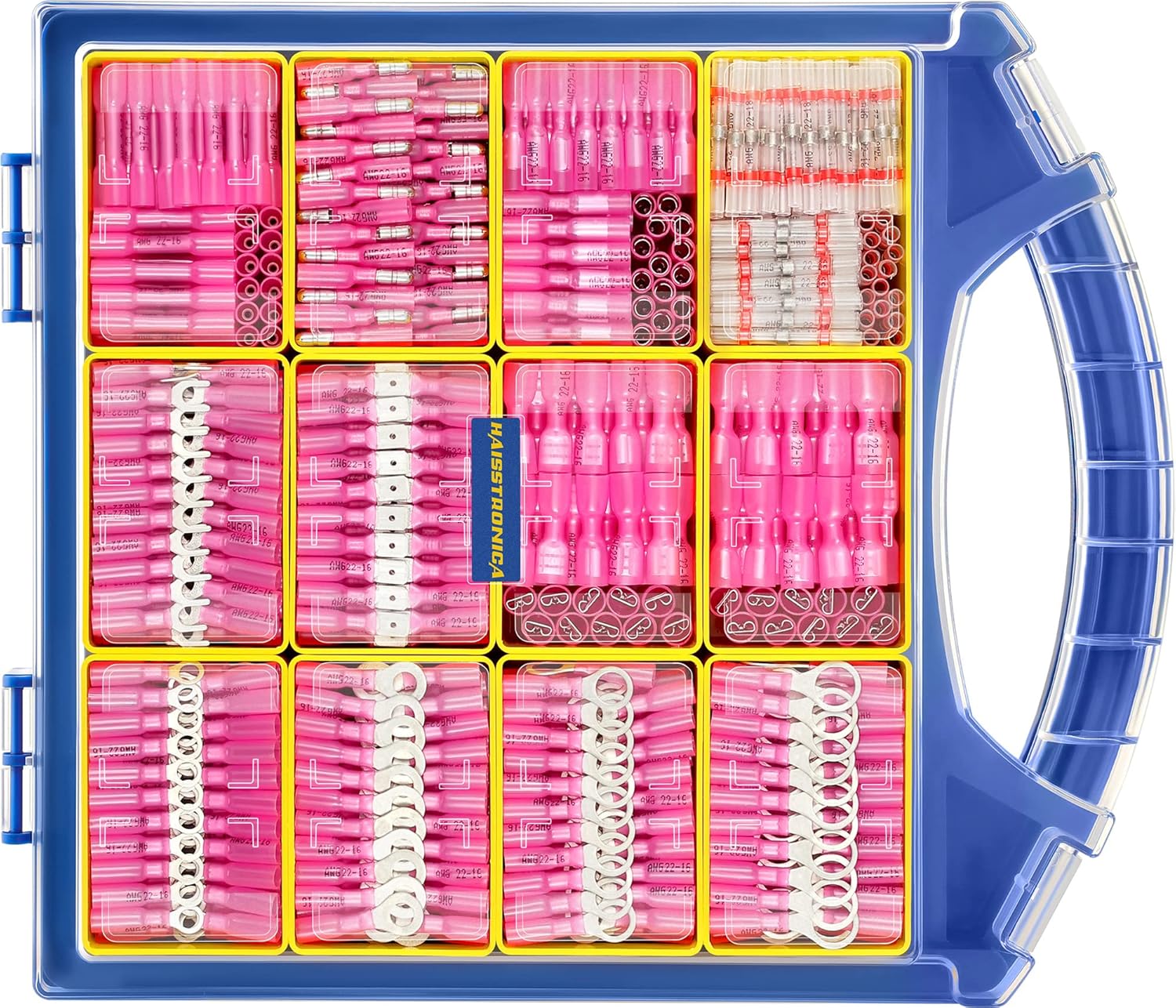

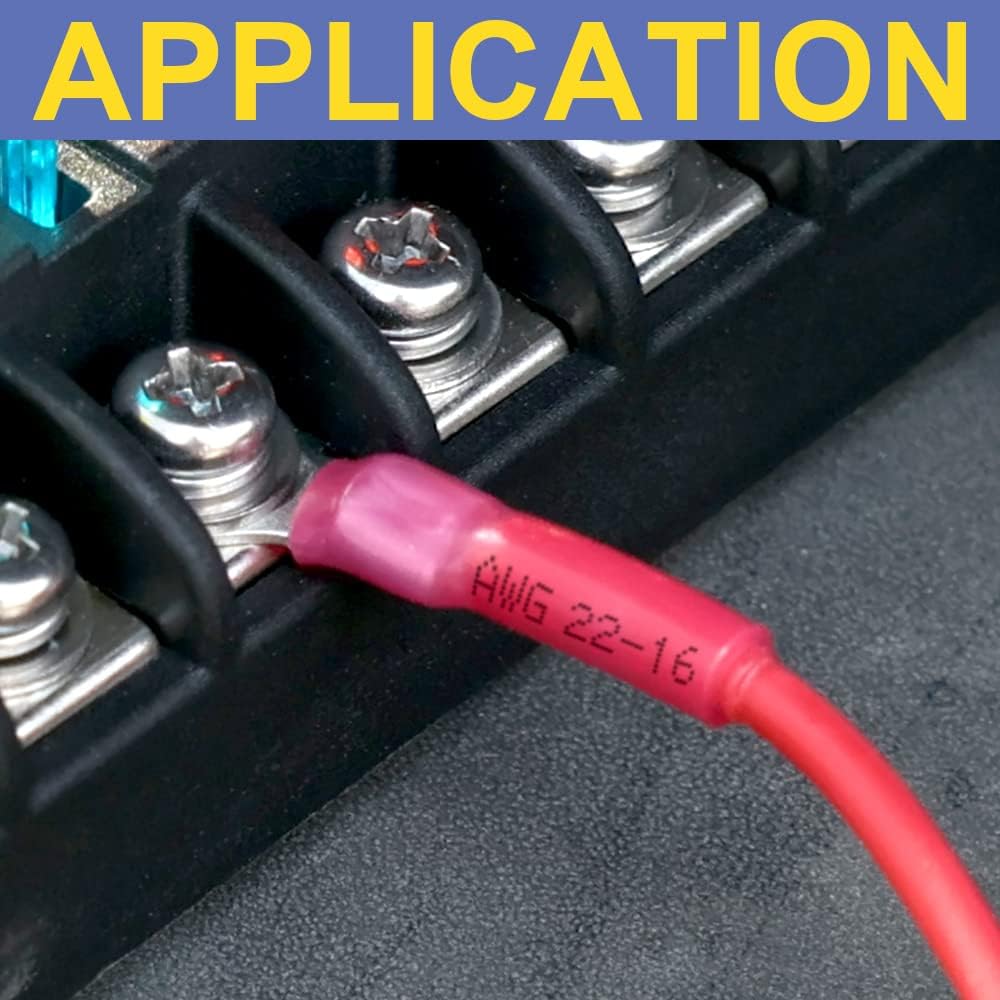

| 880PCS | Red | AWG 22-16 | HX1462 | Mixed ring, solder-seal, spade, bullet, fork and butt terminals |

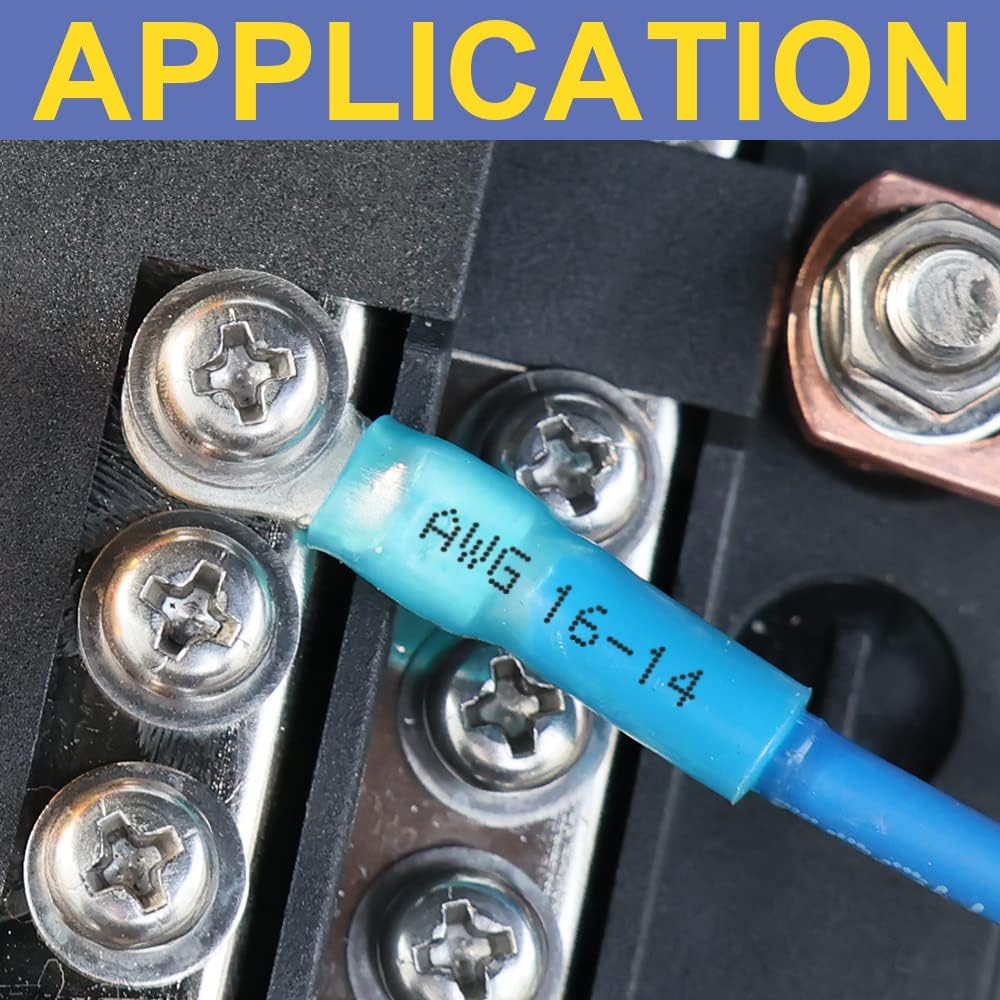

| 680PCS | Blue | AWG 16-14 | HX1460 | Mixed ring, solder-seal, spade, bullet, fork and butt terminals |
| 480PCS | Yellow | AWG 12-10 | HX1461 | Mixed ring, solder-seal, spade, bullet, fork and butt terminals |
| Connector Type | 880PCS Red AWG 22-16 | 680PCS Blue AWG 16-14 | 480PCS Yellow AWG 12-10 | Application | Construction / Sealing |
|---|---|---|---|---|---|

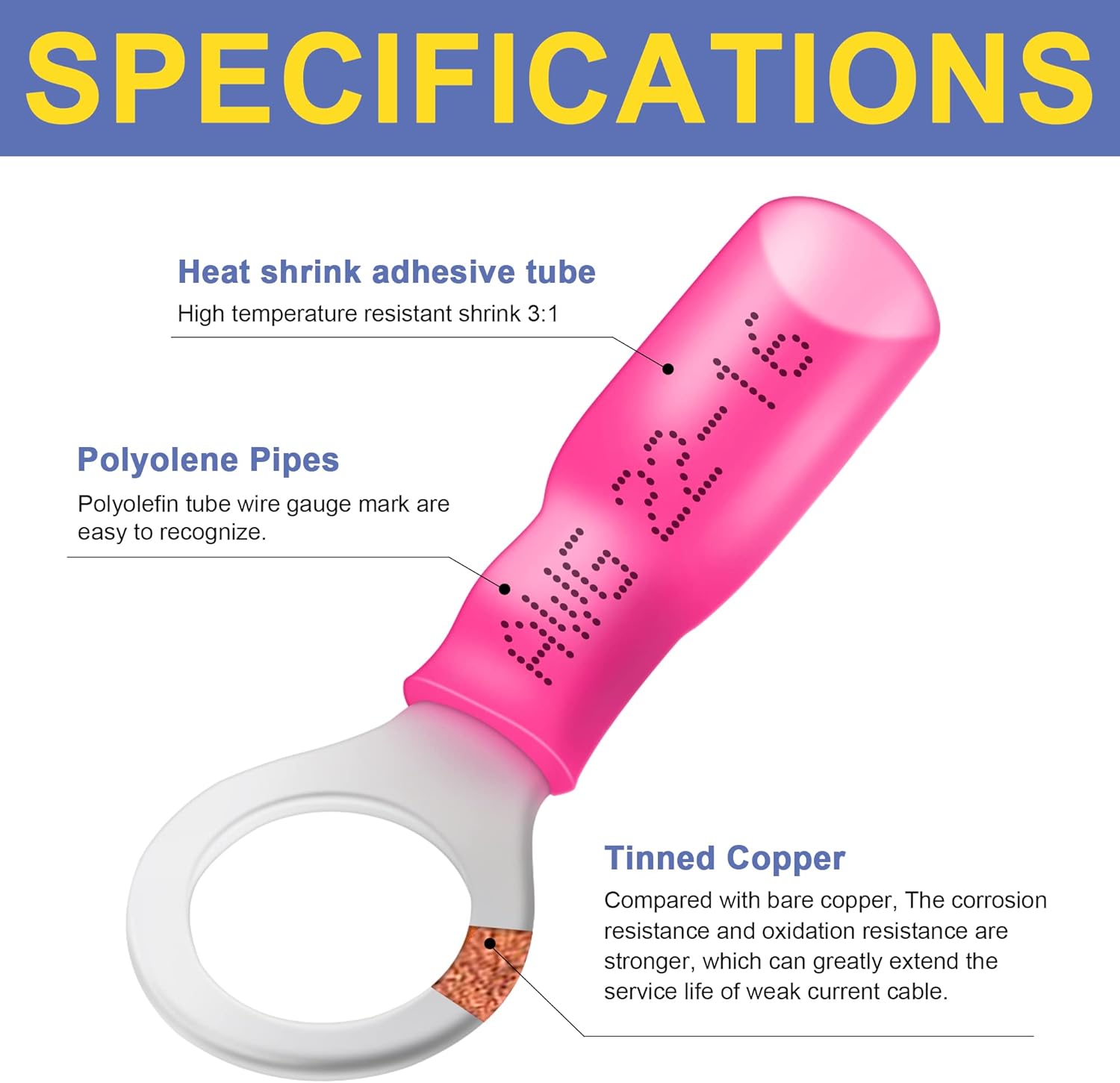

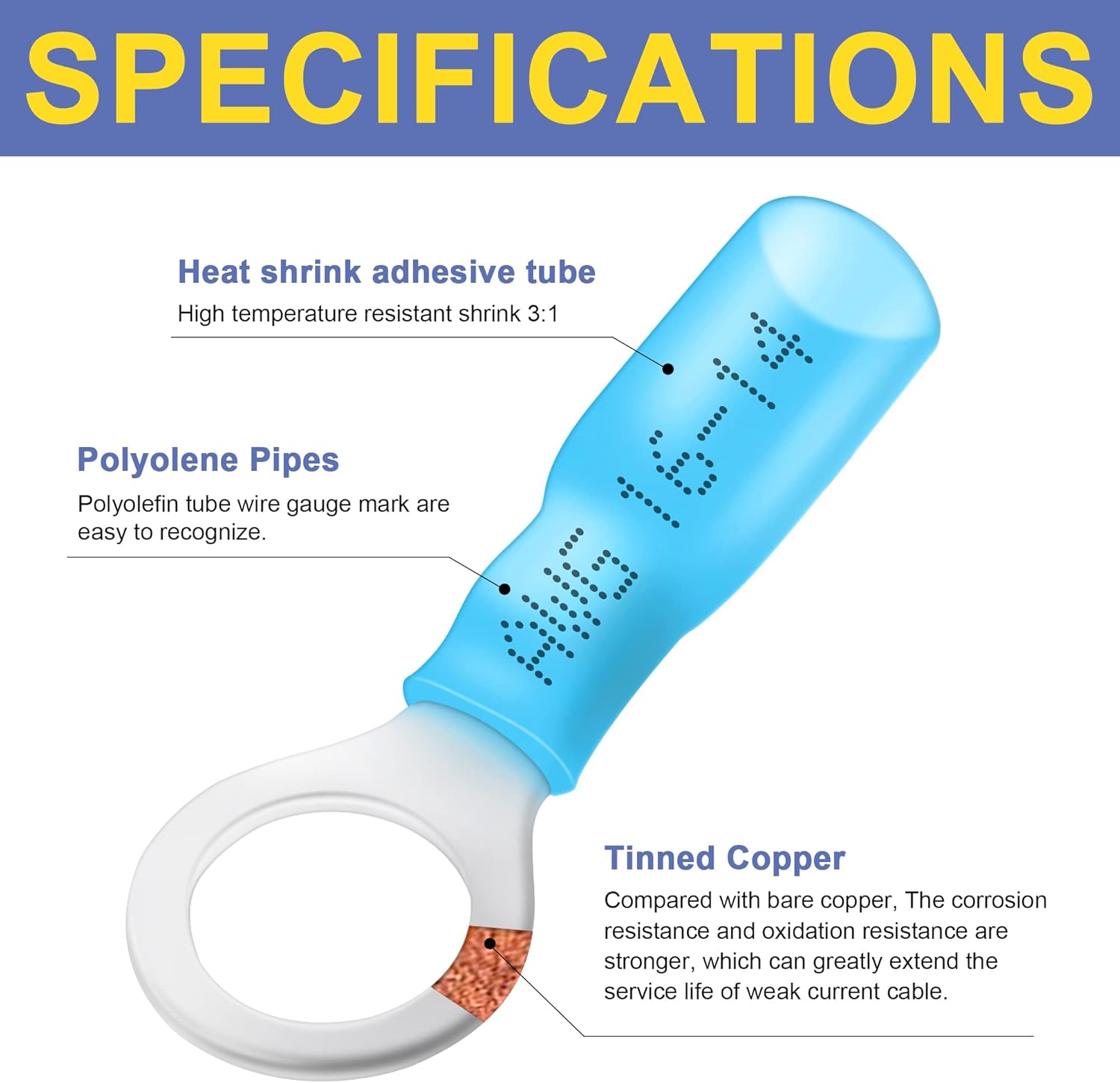

| Ring #10 | 90 | 75 | 50 | Stud connection | 3:1 adhesive-lined heat shrink; solder-seal item uses heat-activated solder and sealing rings |
| Ring 1/4 in | 80 | 60 | 50 | Battery, bus bar or grounding stud | 3:1 adhesive-lined heat shrink; solder-seal item uses heat-activated solder and sealing rings |
| Ring 5/16 in | 80 | 60 | 40 | Battery, bus bar or grounding stud | 3:1 adhesive-lined heat shrink; solder-seal item uses heat-activated solder and sealing rings |
| Ring 3/8 in | 70 | 50 | 40 | Battery, bus bar or grounding stud | 3:1 adhesive-lined heat shrink; solder-seal item uses heat-activated solder and sealing rings |

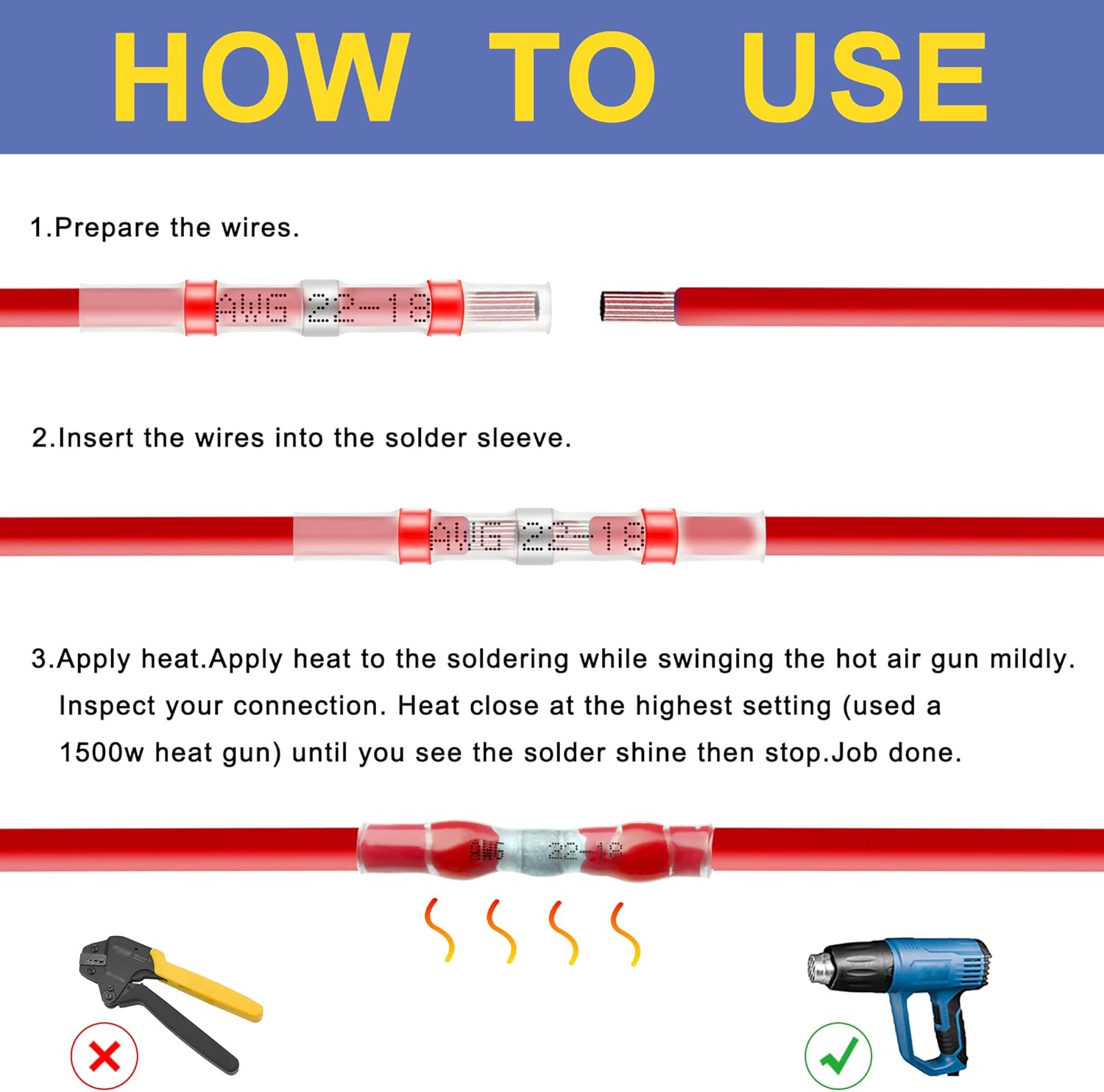

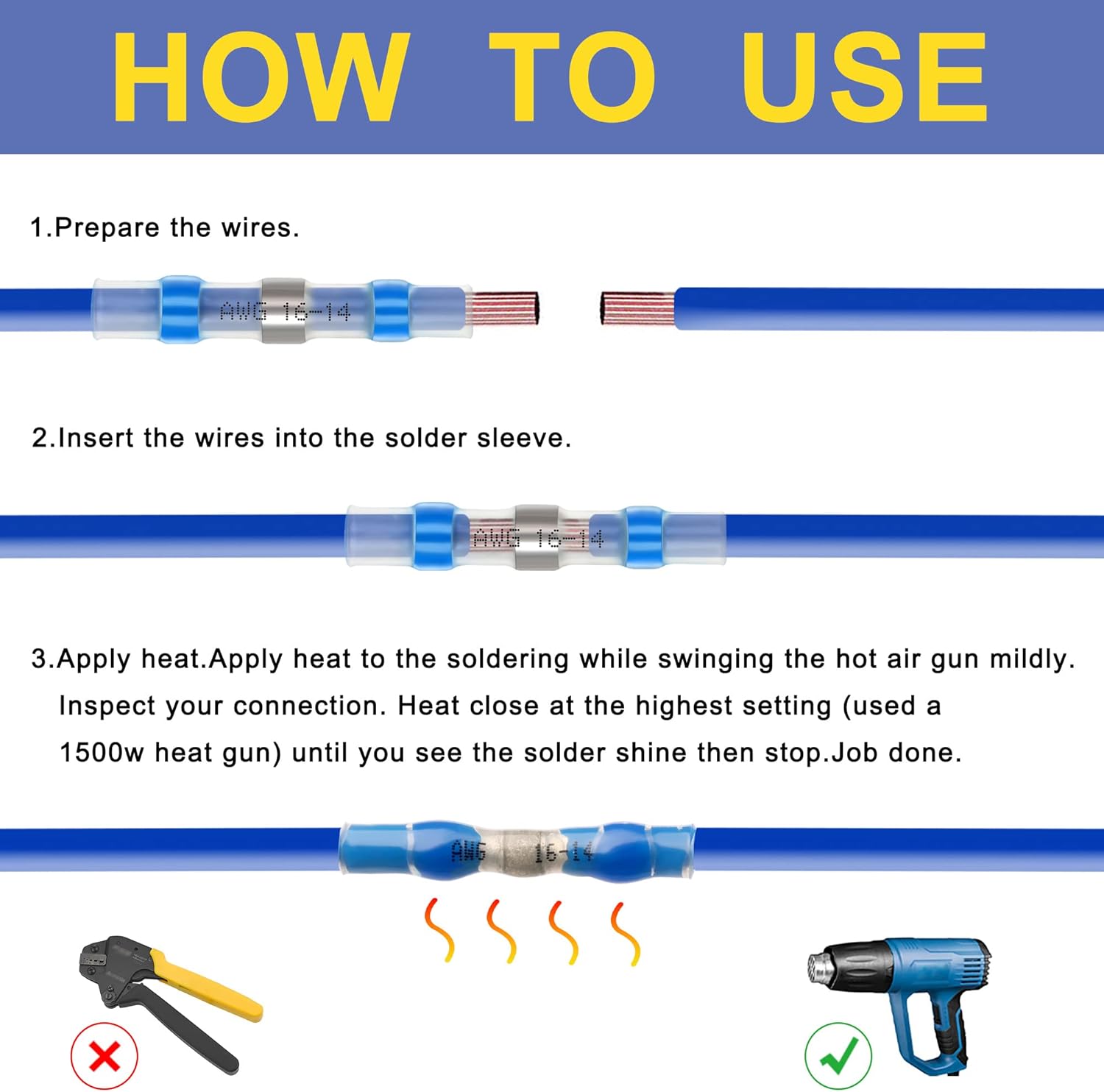

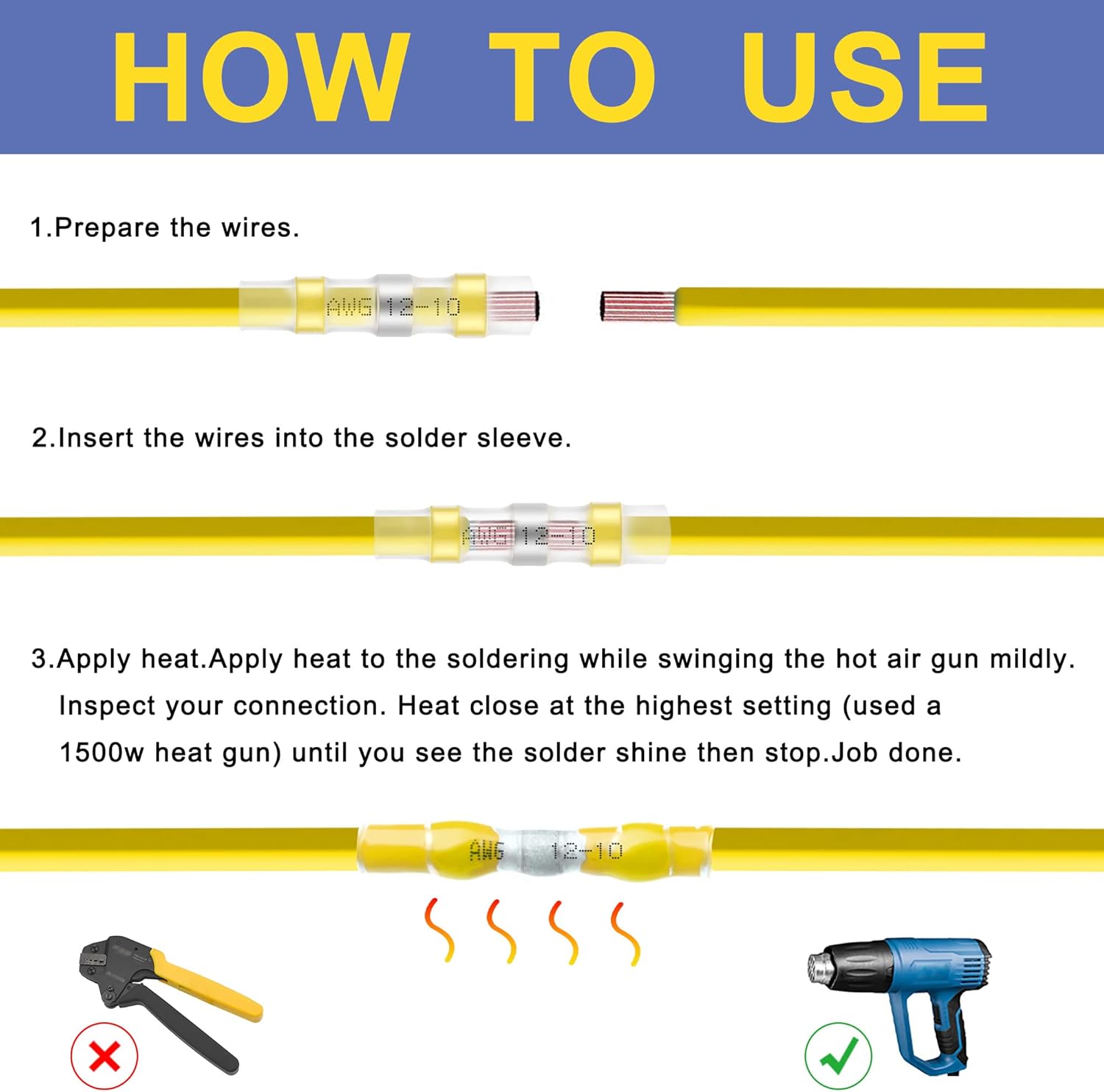

| Solder-seal butt connector | 90 | 50 | 40 | Heat-activated inline splice | 3:1 adhesive-lined heat shrink; solder-seal item uses heat-activated solder and sealing rings |
| Male spade quick-disconnect | 90 | 80 | 60 | Detachable tab connection | 3:1 adhesive-lined heat shrink; solder-seal item uses heat-activated solder and sealing rings |
| Female spade quick-disconnect | 90 | 80 | 60 | Detachable tab connection | 3:1 adhesive-lined heat shrink; solder-seal item uses heat-activated solder and sealing rings |
| Male bullet terminal | 70 | 50 | 30 | Detachable inline connection | 3:1 adhesive-lined heat shrink; solder-seal item uses heat-activated solder and sealing rings |
| Female bullet terminal | 70 | 50 | 30 | Detachable inline connection | 3:1 adhesive-lined heat shrink; solder-seal item uses heat-activated solder and sealing rings |
| Fork terminal | 90 | 75 | 50 | Screw-terminal connection | 3:1 adhesive-lined heat shrink; solder-seal item uses heat-activated solder and sealing rings |
| Heat-shrink butt connector | 60 | 50 | 30 | Crimped inline splice | 3:1 adhesive-lined heat shrink; solder-seal item uses heat-activated solder and sealing rings |
Counts total 880, 680 and 480 pieces respectively. Select the kit by conductor gauge, then choose the connector style required by the equipment.
