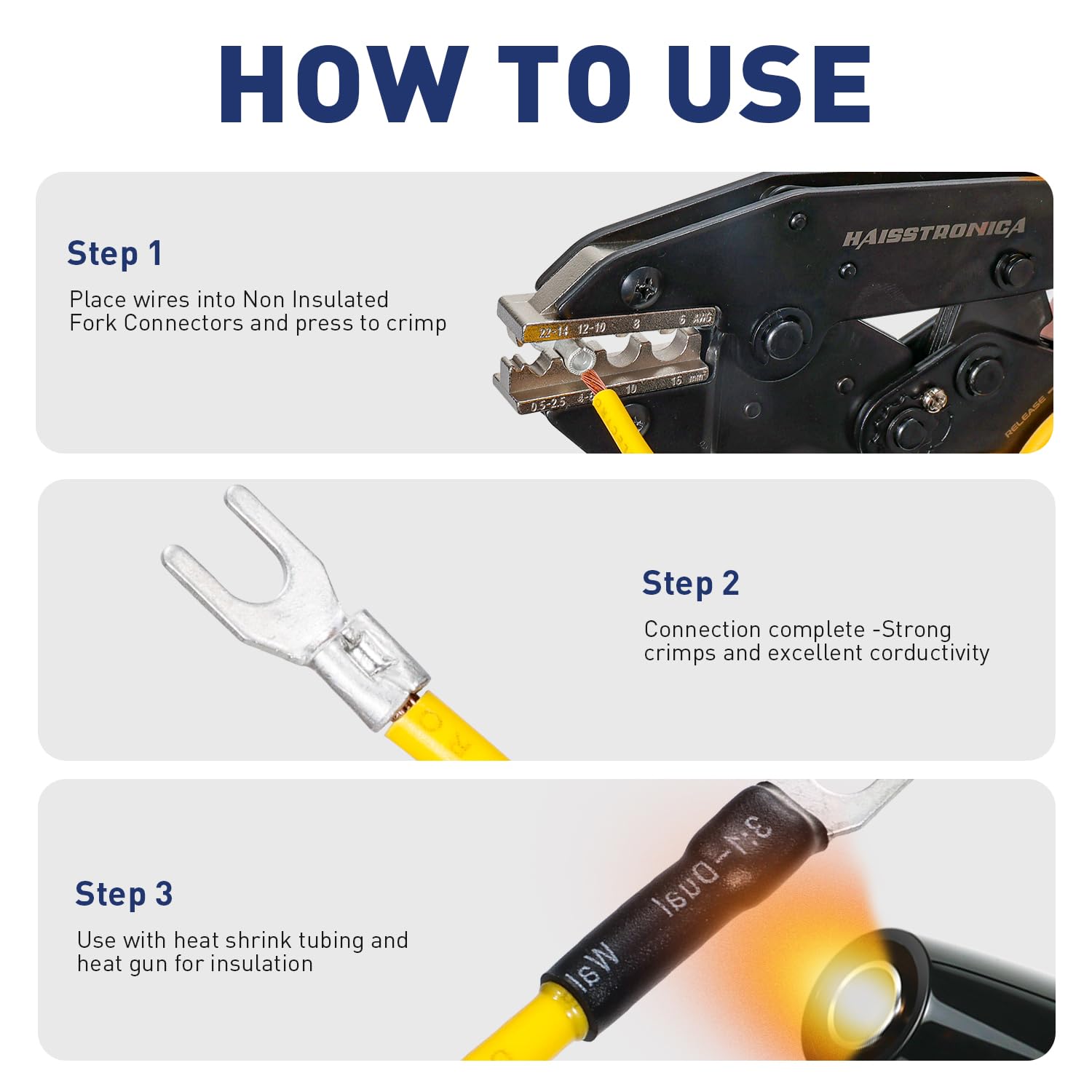

step graphic of uninsulated terminal kit, crimpers non-insulate workflow from wire insertion to shrunk waterproof joint
diagram of haisstronica uninsulated butt connector and heat shrink kit, showing size labels for heavy duty cables

Non-Insulated Fork Terminals with 3:1 Heat Shrink Tubing Kit

$12.99 USD
SKU: HX2015

Easy screw access. A crimp you can inspect.

Prepare compatible screw connections with Haisstronica non-insulated fork terminals and separate heat shrink tubing.

• Open-fork format — slide under a matching loosened screw without fully removing it.
• Insulate after inspection — the included adhesive-lined 3:1 heat shrink tubing covers the properly crimped barrel.
• Match the fork opening — choose the listed wire gauge and #8 or #10 screw size.

Coupon strip showing 5 percent and 10 percent discounts by order value
Size:AWG 16-14
Style:Fork #8
Quantity:
Free Returns Within 30 Days
Free Shipping on All Orders
Warranty up to 24 Months
Visa Mastercard PayPalAmerican Express DiscoverDiners Club

Non-Insulated Fork Terminals with 3:1 Heat Shrink Tubing Kit pairs tin-plated red-copper fork terminals with correctly sized red and black dual-wall heat-shrink tubing. It creates fast, serviceable screw-terminal connections while adding insulation, strain relief, and protection around the crimp.

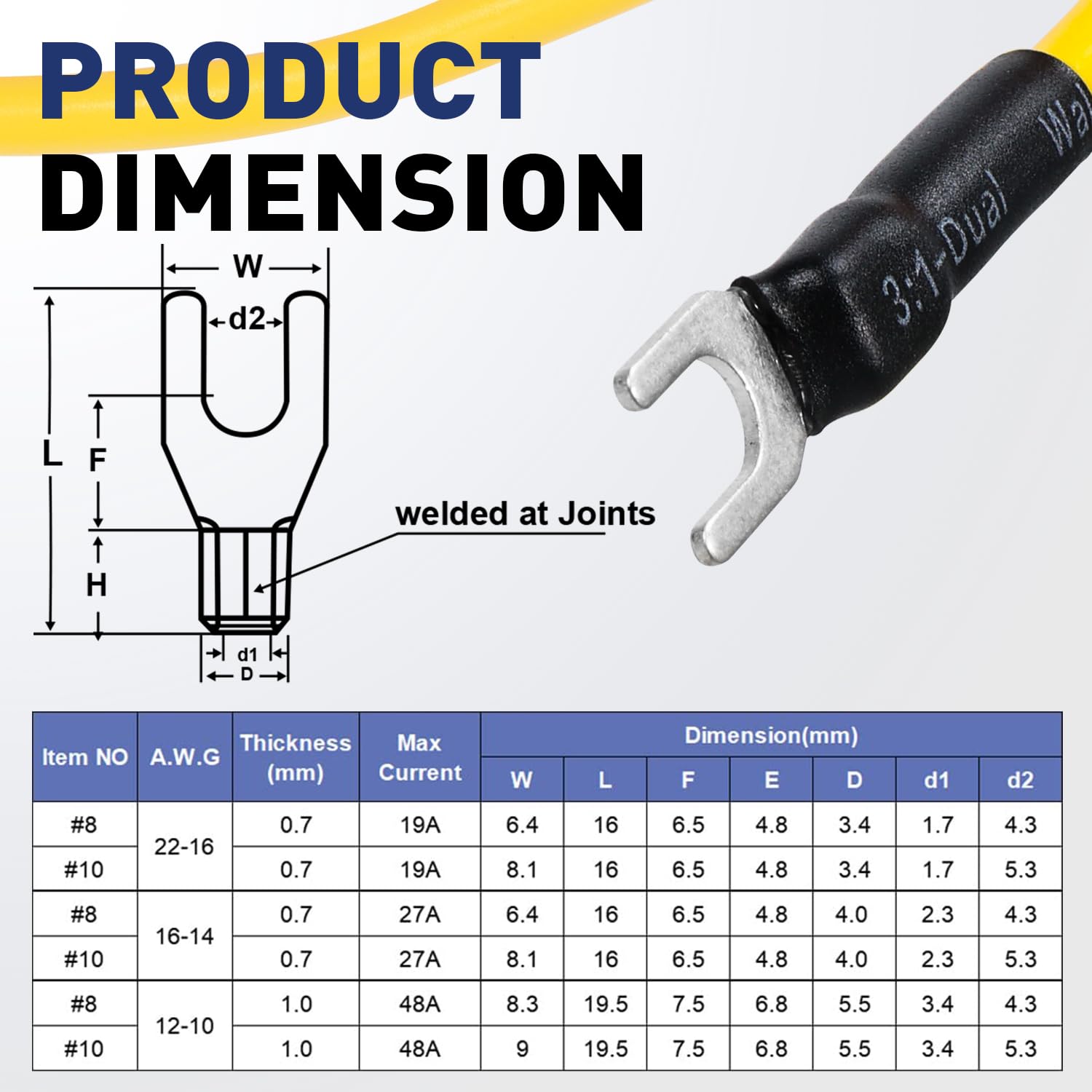

Terminal & Tubing Selection Guide

AWG Fork / Stud Size Kit Contents Tubing Size & Length Material / Sealing Rated Current

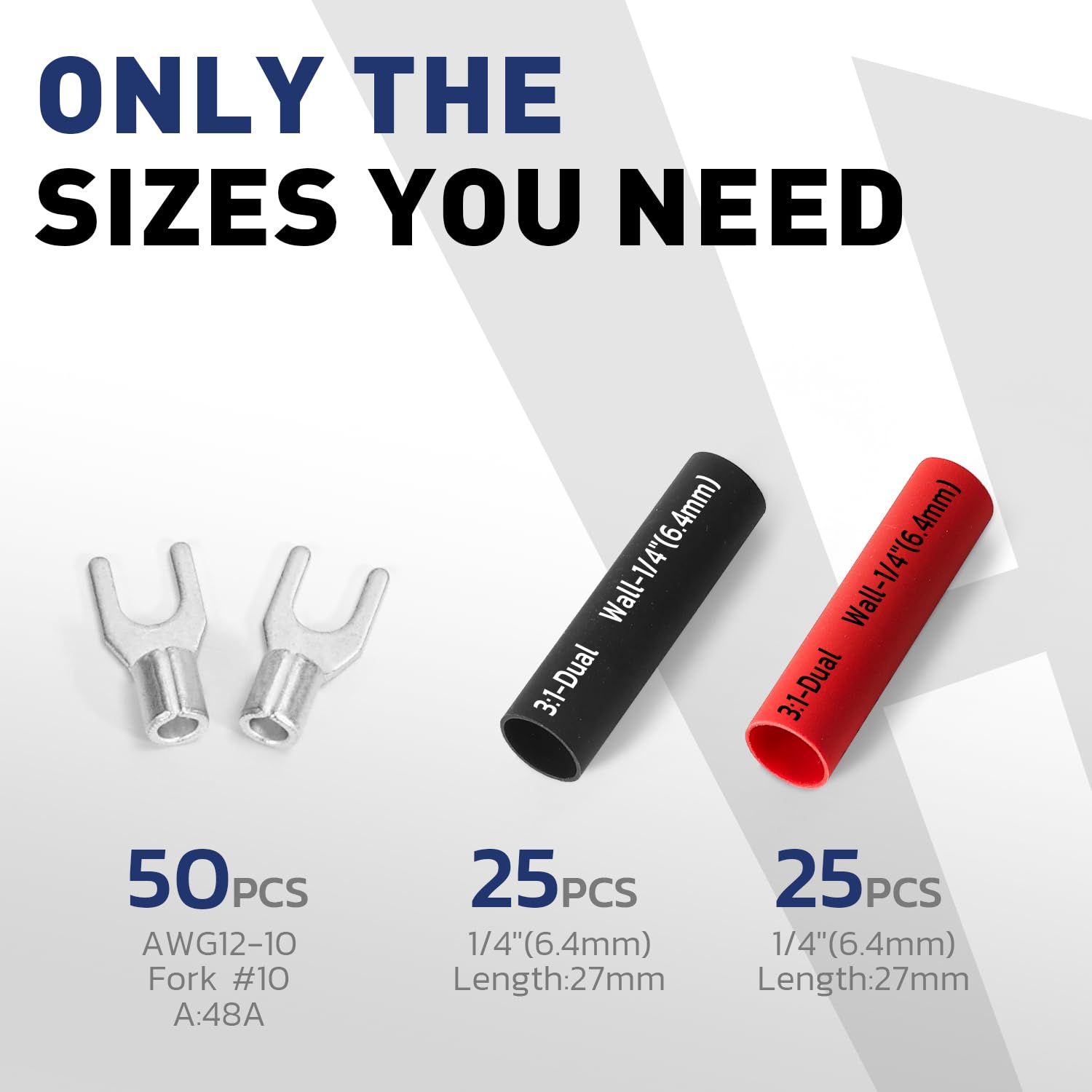

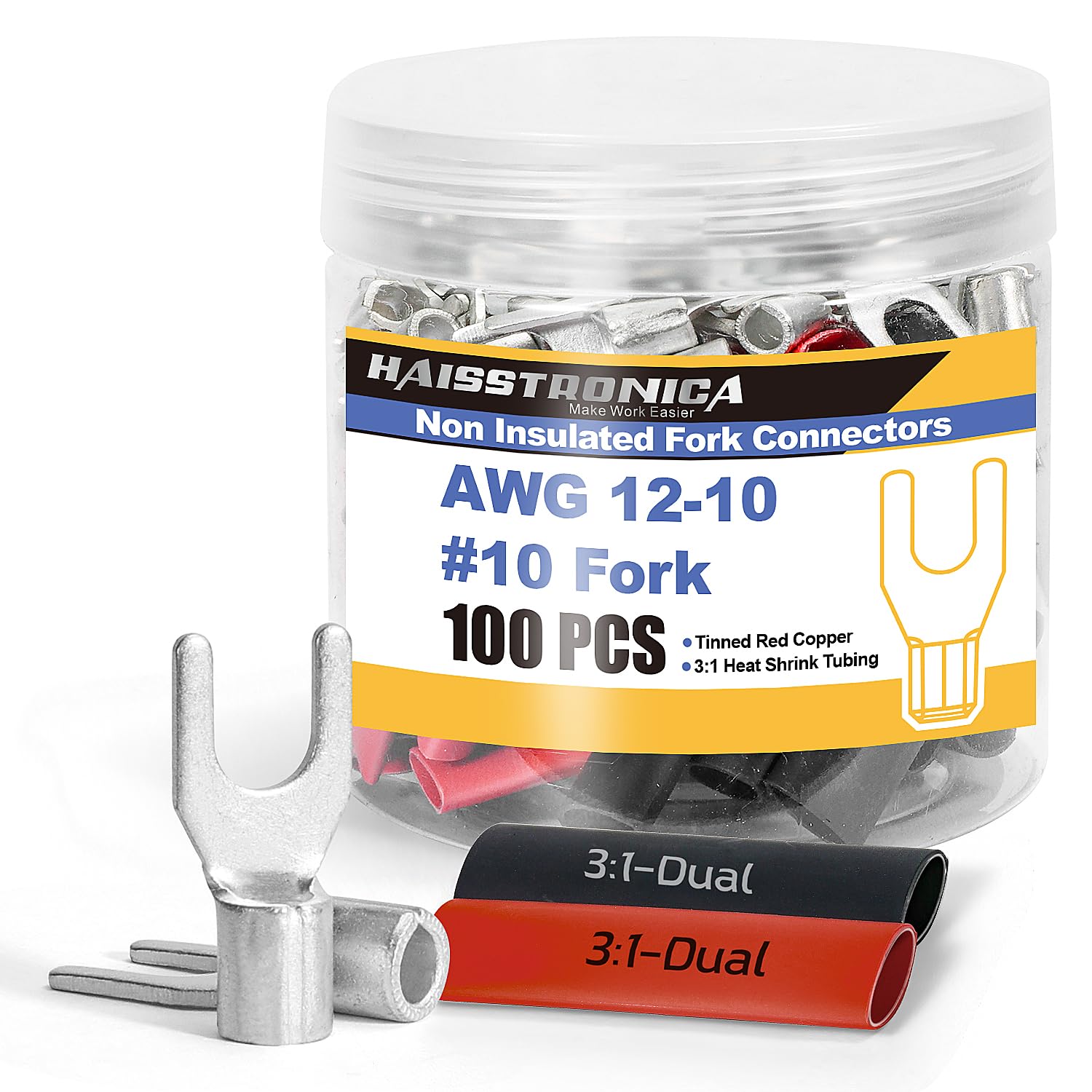

AWG 12-10 Fork #8 50 terminals + 25 red / 25 black tubes 1/4 in (6.4 mm) × 27 mm Tin-plated red copper + 3:1 dual-wall tubing 48 A
AWG 16-14 Fork #8 100 terminals + 50 red / 50 black tubes 3/16 in (4.8 mm) × 25 mm Tin-plated red copper + 3:1 dual-wall tubing 27 A

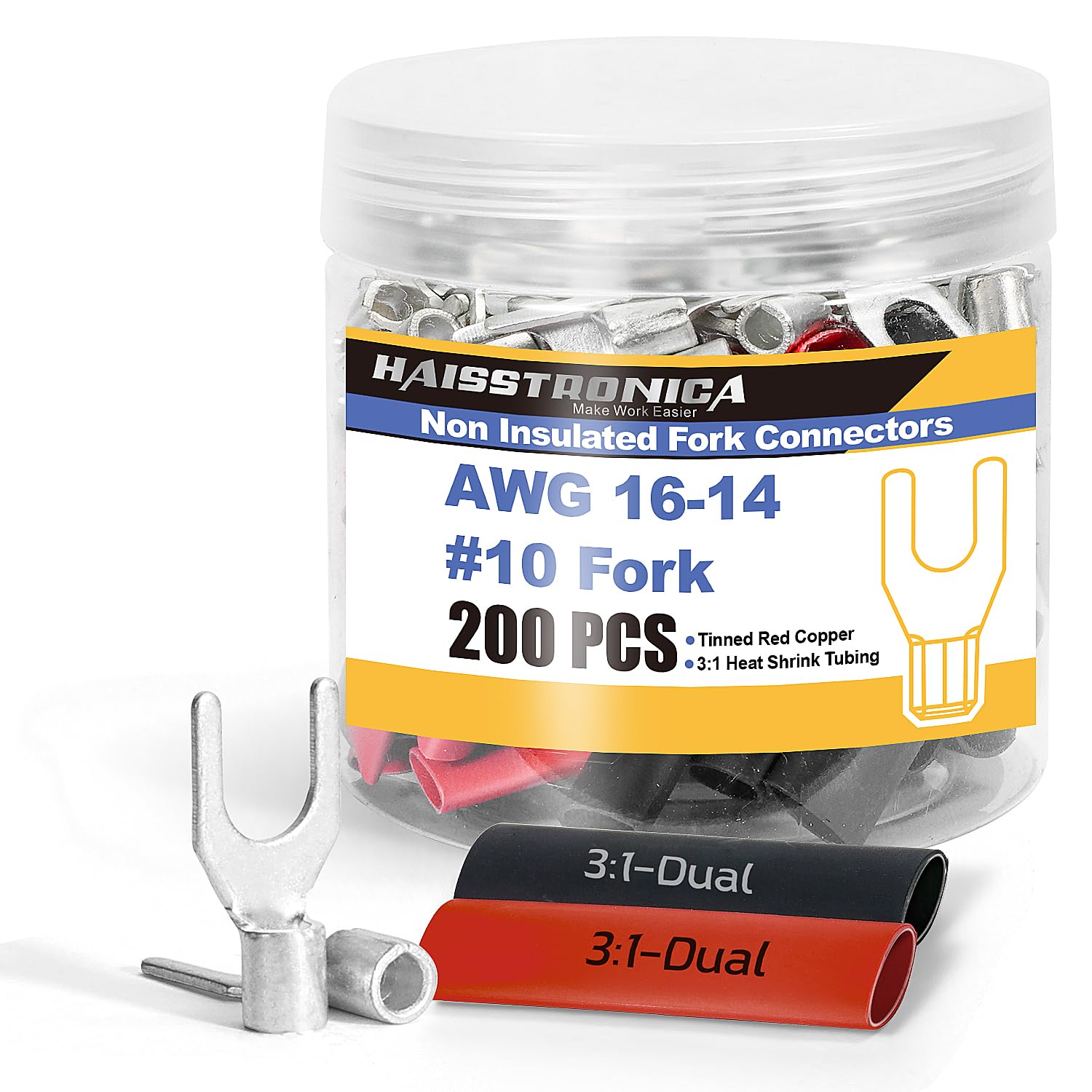

AWG 16-14 Fork #10 100 terminals + 50 red / 50 black tubes 3/16 in (4.8 mm) × 25 mm Tin-plated red copper + 3:1 dual-wall tubing 27 A

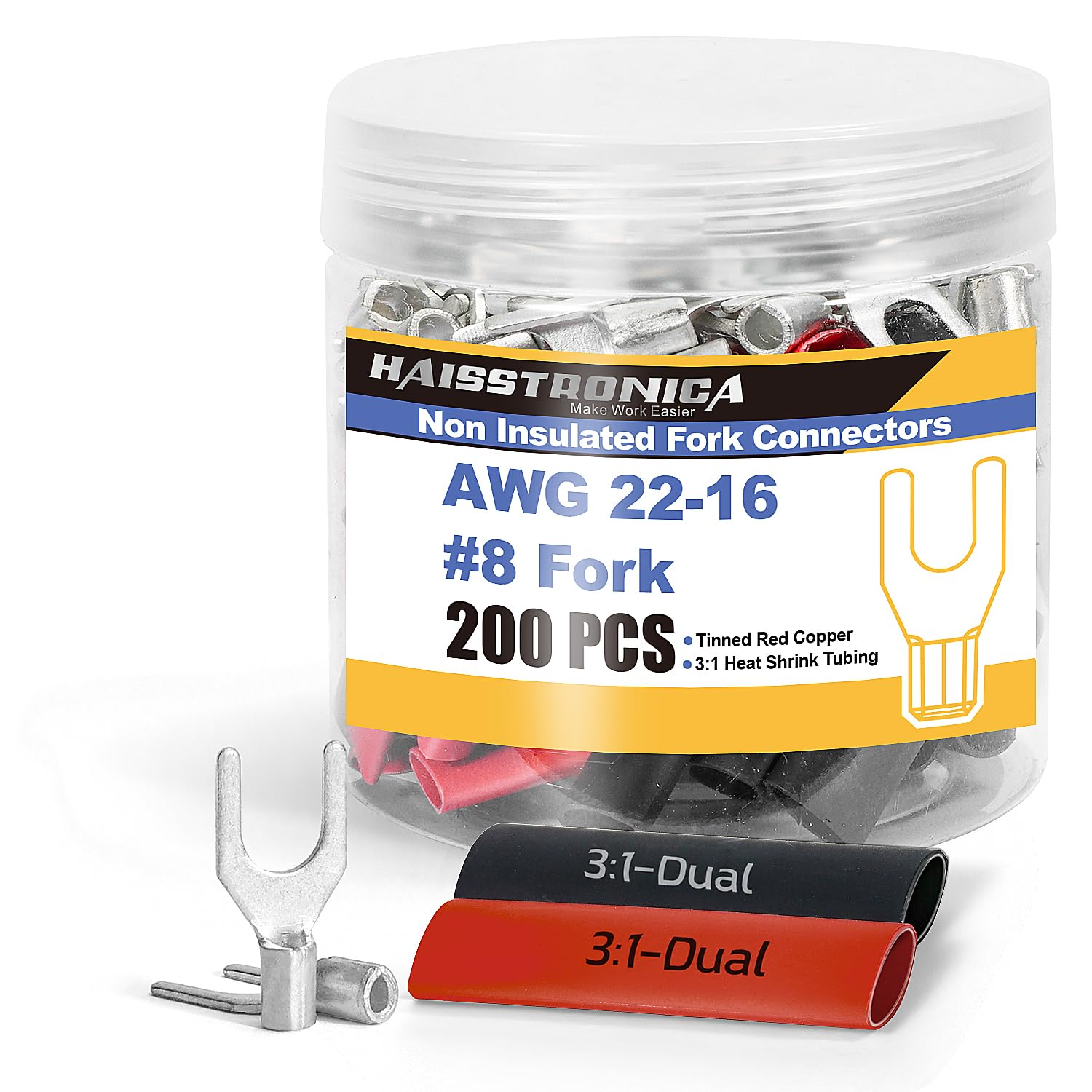

AWG 22-16 Fork #8 100 terminals + 50 red / 50 black tubes 3/16 in (4.8 mm) × 25 mm Tin-plated red copper + 3:1 dual-wall tubing 19 A

Choose the variant by both conductor gauge and screw size. The listed kit quantity includes the fork terminals plus the matching red and black tubing pieces.

Compare more non-insulated connectors, choose a compatible wire crimping tool, or use a 350W mini heat gun for controlled tubing recovery.

❓Does this kit include insulated fork terminals?

No. The fork terminals are non-insulated tin-plated copper terminals. Separate red and black 3:1 heat-shrink tubes are included to insulate and protect each completed crimp.

❓How do I choose between Fork #8 and Fork #10?

Match the fork opening to the equipment screw or stud. Then choose the barrel by conductor AWG. Both measurements must match the connection.

❓Can I crimp these terminals with ordinary pliers?

Use a crimping tool and die intended for non-insulated terminals. Ordinary pliers do not form a controlled barrel crimp and can produce an unreliable connection.

❓How should I shrink the tubing?

Use a controlled heat gun, keep the airflow moving, and rotate the joint until the tubing has recovered uniformly. Stop heating once the tube is fully formed around the barrel and wire insulation.

❓How to Choose

  1. Match the terminal barrel to the conductor: AWG 22-16, 16-14, or 12-10.
  2. Match Fork #8 or Fork #10 to the screw or stud size; do not select the fork opening by wire gauge alone.
  3. Use the supplied 3:1 tube assigned to that variant so it recovers tightly over the crimped barrel.

❓How to Crimp and Heat Shrink

  1. Disconnect power, cut the conductor cleanly, and slide the correct heat-shrink tube onto the wire.
  2. Strip only enough insulation for the conductor to fill the terminal barrel.
  3. Insert the wire fully and crimp the barrel with a die made for non-insulated terminals.
  4. Pull-test the crimp, position the fork under the correct screw, and tighten to the equipment manufacturer's specification.
  5. Center the tubing over the barrel and insulation edge. Heat evenly with a heat gun until it has fully recovered, then allow it to cool before use.

Do not use an open flame, and do not use these terminals where a closed ring, sealed connector, or manufacturer-specified termination is required.
  • Enjoy free shipping on all orders.
  • Delivery Time: 1-2 business days to The US and Canada. Delivery times may vary depending on your location and carrier conditions.
  • Details
  • Tracking: After your order is shipped, you will receive an email with a tracking number to monitor the delivery status.
  • Need Help? Contact our support team for assistance with shipping or your order.
  • 30-Day Returns
    You may request a return within 30 calendar days of delivery. Items must be unused, in their original condition, and include all original packaging and accessories.
  • Damaged, Defective, or Incorrect Items
    Contact us with your order number and photos. If the issue is due to our error, we will cover reasonable return shipping costs or provide an appropriate replacement.
  • Refunds
    Approved refunds are issued to your original payment method within 5 business days after inspection. Your bank may require additional processing time.
  • To start a return, email support@haisstronica.com with your order number and reason for return. Please obtain approval before sending anything back.
  • View Full Return & Refund Policy

You may also like

Workbench scene using heat gun wire connectors; precise heating shrinks sleeves on cables for sealed connections.Dual-setting heat gun 350 watts, 110V; two temperatures 482°F and 752°F shown for craft, repair, and everyday work.
350W Mini Heat Gun
$23.99 USD
HAISSTRONICA AWG 22-6 Ratchet Wire Crimper - Black handle, textured grip, toothed design with ring/U-shaped metal terminals. Technical electrical toolComfortable non-slip handles provide excellent leverage when using this reliable manual wire crimper wire crimper
Crimping Tool for Non-Insulated Terminal AWG 22-6 Ratchet Wire Crimper
$30.99 USD

More Information About This Item

  • Your DIY Time-Saver: The non-insulated connectors kit are pre-matched with the appropriate length and size of heat shrink tubing, eliminating the cumbersome process of purchasing separate components
  • Unyielding Protection:Unlike cheap,low-quality connectors, these Good quality pure copper has excellent conductivity performance,the surface is tin-plated and corrosion-resistant to ensure the connection is safer

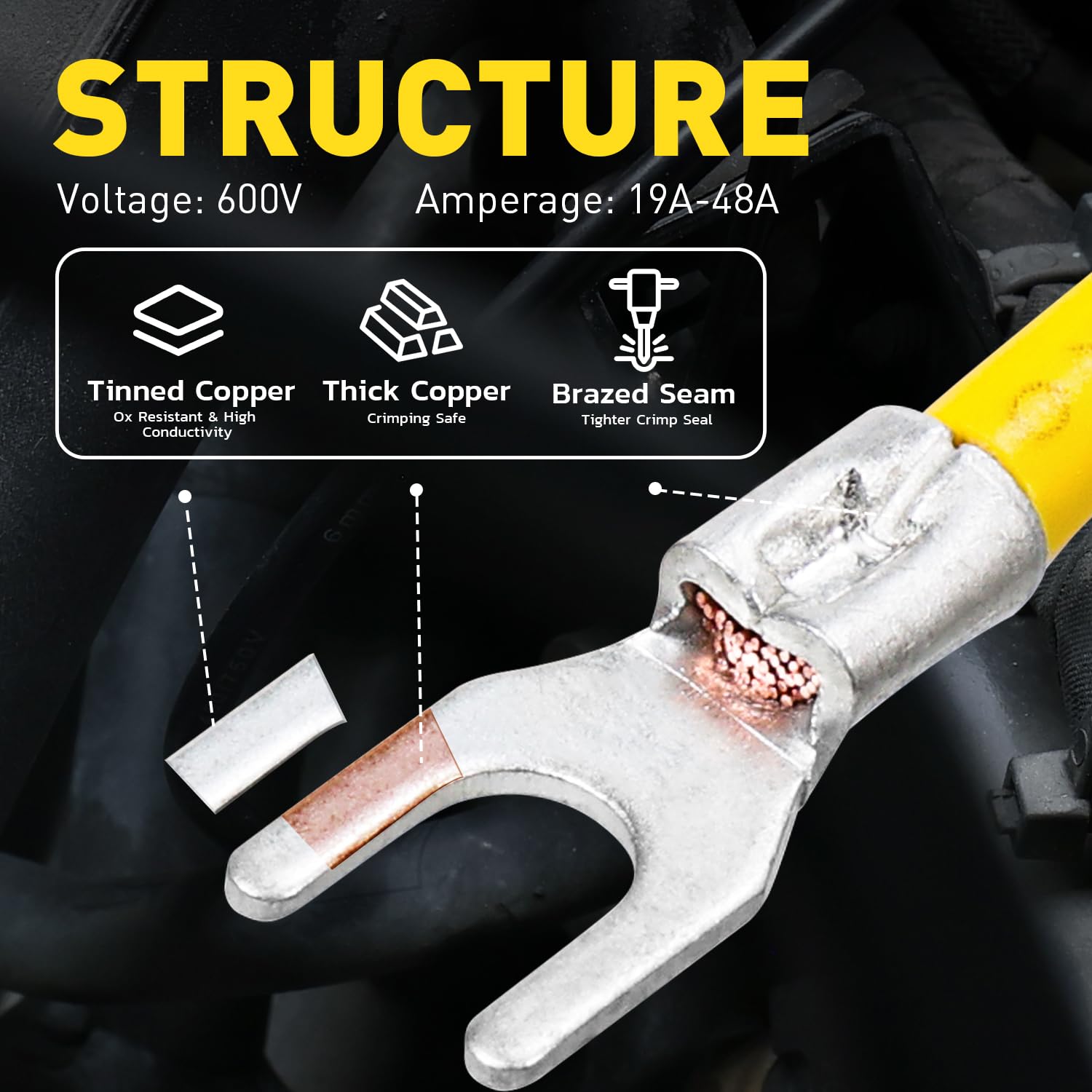

  • Long-Term Reliability:The brazed seam with exquisite craftsmanship ensures that the wire is not easy to fall off after crimping,forming a neat and rock-solid crimp.No worries in wire connection

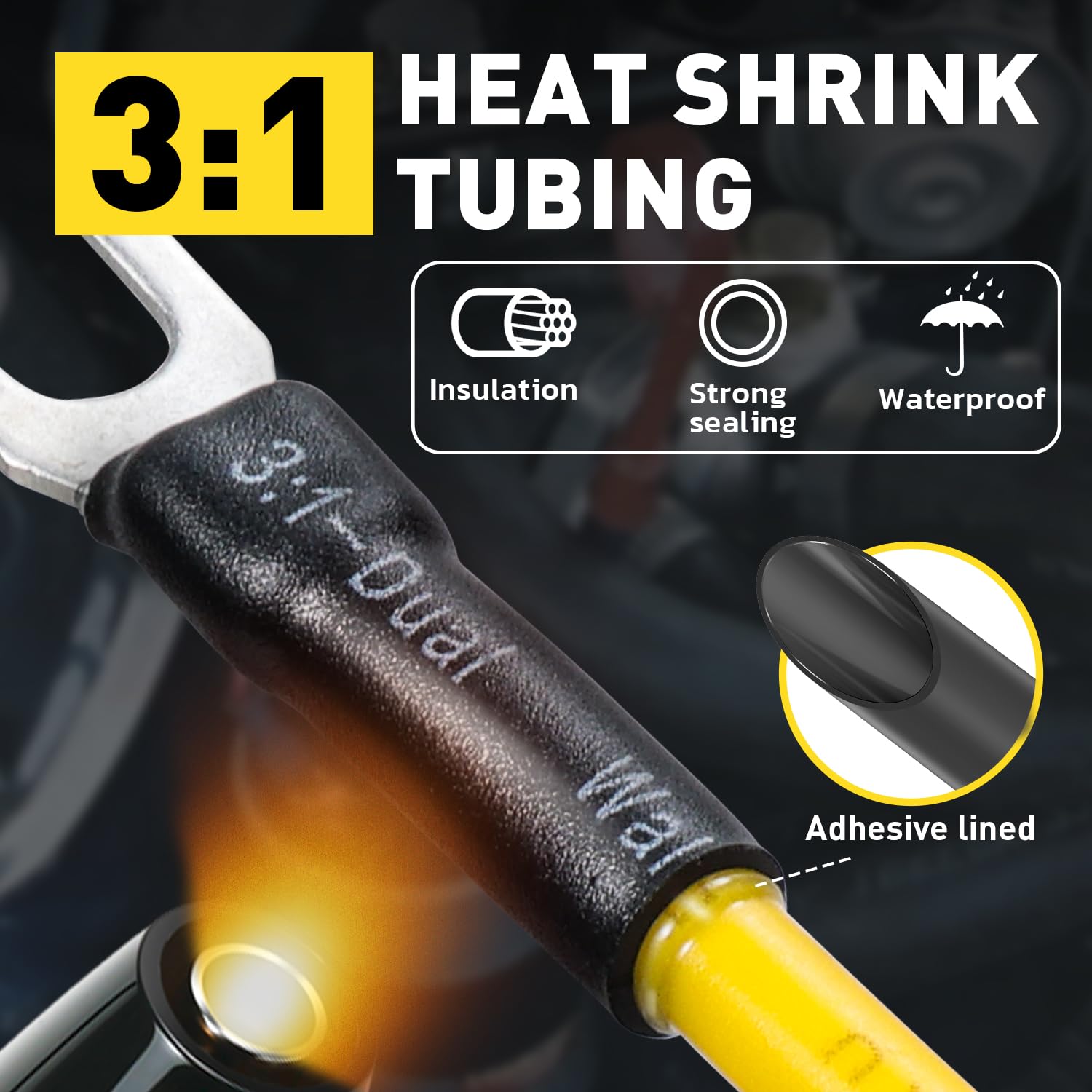

  • 3:1 Shrink Ratio: Effectively reducing diameter while providing superior insulation, shrink tubing provides a tight and secure seal for all your terminals and wire connections

Use these fork terminals where a removable screw connection is useful, including automotive accessory wiring, marine electrical panels, appliance repairs, control cabinets, and workshop wiring. A fork terminal can be installed without fully removing the screw. For high-vibration joints or connections where the fastener may loosen, a closed ring terminal is usually the safer choice.
