12-10 AWG Heat Shrink Ring Terminals
12-10 AWG Heat Shrink Ring Terminals

12-10 AWG Heat Shrink Ring Terminals

$40.99 USD

The right ring for the next bolted connection.
Keep common stud attachments organized instead of collecting loose terminals.
• Closed-ring geometry — fits over the matching stud for a bolted attachment.
• Insulate the crimp — adhesive-lined sleeves shrink around the barrel and wire.
• Select your assortment — check the included gauges and stud openings.

Coupon strip showing 5 percent and 10 percent discounts by order value
Item:160 PCS Mixed AWG
Quantity:
Free Returns Within 30 Days
Free Shipping on All Orders
Warranty up to 24 Months
Visa Mastercard PayPalAmerican Express DiscoverDiners Club
Haisstronica model automatic cable stripper for precision tasks.
Self-Adjusting Wire Stripper AWG 24-10 $23.99
Haisstronica ratchet crimper for AWG 22-10 non-insulated terminals & heat shrink connectors, ANSI-compliant design
AWG 22-10 Ratchet Crimping Tool $30.99
Workbench scene using heat gun wire connectors; precise heating shrinks sleeves on cables for sealed connections.
350W Mini Heat Gun $23.99

12-10 AWG Heat Shrink Ring Terminals provide a color-coded yellow option for larger-gauge electrical connections, including battery, grounding, marine and automotive wiring. This product page also offers red AWG 22-16, blue AWG 16-14 and mixed-AWG assortments, so choose the variant by conductor gauge, required stud-hole fit and pack quantity.

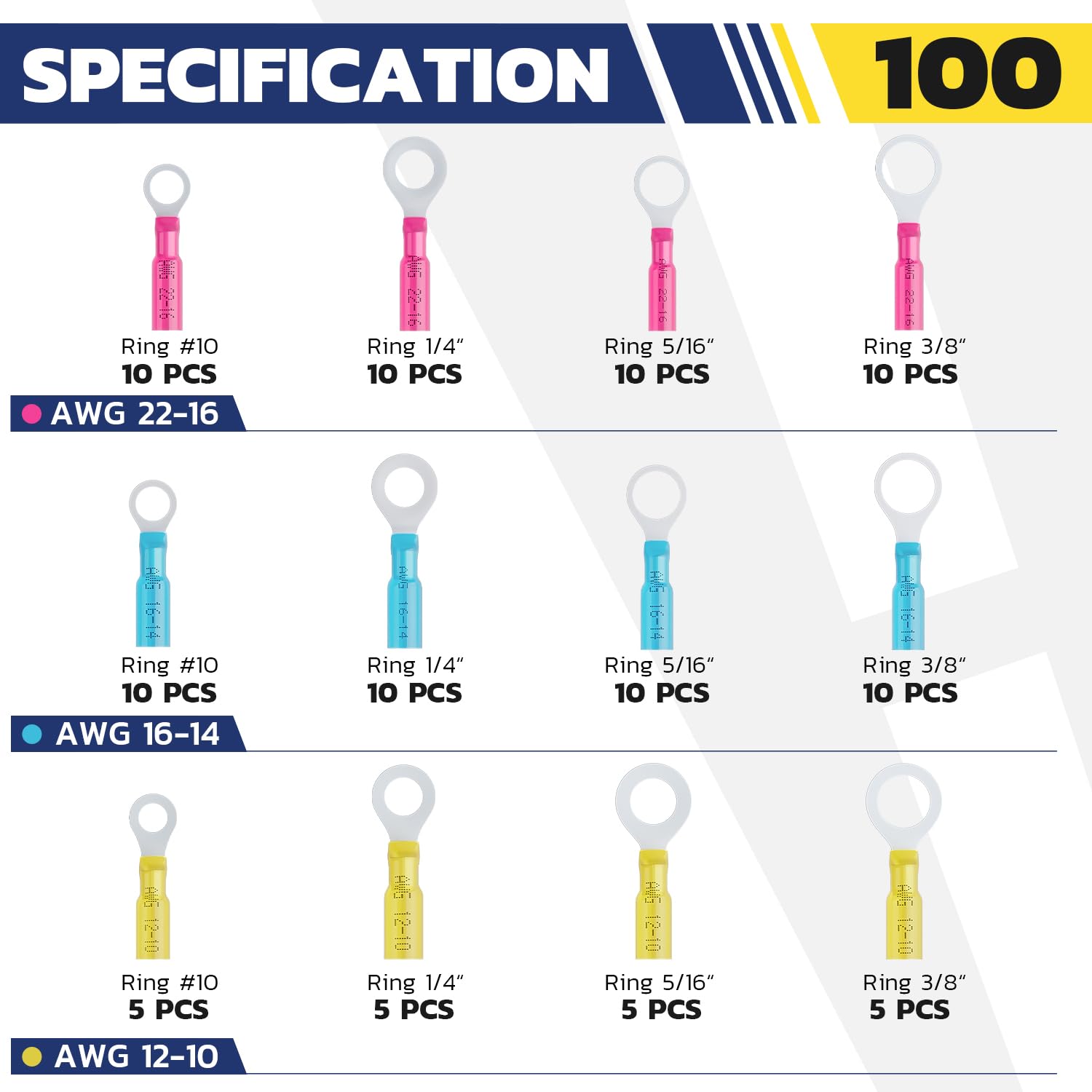

Pack, Wire Size & Stud Fit Guide
Pack Option Color AWG Pack Quantity Stud / Ring Size Material & Sealing Application
Yellow single-color assortment Yellow AWG 12-10 100PCS Multiple ring-hole sizes; match the selected terminal to the stud Copper terminal; 3:1 adhesive-lined heat-shrink sleeve Battery, ground and higher-current accessory wiring
Blue single-color assortment Blue AWG 16-14 200PCS Multiple ring-hole sizes; match the selected terminal to the stud Copper terminal; 3:1 adhesive-lined heat-shrink sleeve Automotive, marine and equipment wiring
Red single-color assortment Red AWG 22-16 200PCS Multiple ring-hole sizes; match the selected terminal to the stud Copper terminal; 3:1 adhesive-lined heat-shrink sleeve Control, lighting and small accessory circuits

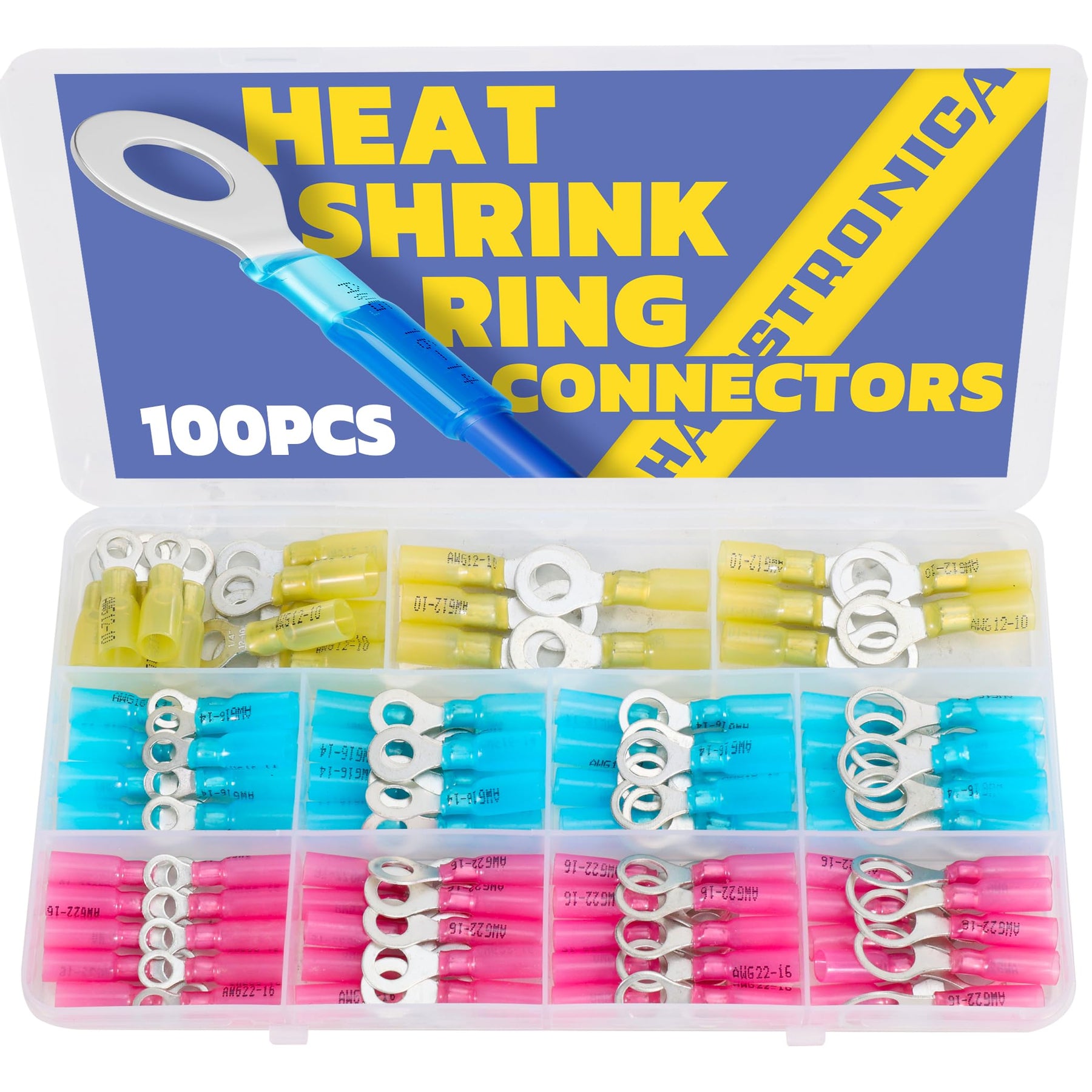

Mixed-AWG assortments Red / Blue / Yellow AWG 22-10 100 / 160 / 260 / 600PCS Assorted ring-hole sizes; verify the compartment and terminal marking Copper terminals; 3:1 adhesive-lined heat-shrink sleeves Multi-size repair, shop and field inventory

The manufacturer does not publish one universal stud size or shrink temperature for every assortment. Confirm the ring opening against the actual stud and follow the selected connector's packaging before installation.

Compare more heat shrink ring terminals. For preparation and installation, see the wire stripper and crimping tool kit, or review the adhesive-lined heat shrink tubing range.

❓What color ring terminal should I use for 12-10 AWG wire?

Use the yellow AWG 12-10 option after confirming the actual conductor gauge. Color is a quick reference, but the printed AWG marking and barrel fit are the final checks.

❓How do I choose the correct stud size?

Match the ring opening to the equipment stud so the terminal seats flat with minimal clearance. The assortments contain multiple ring-hole sizes, so verify the chosen terminal rather than assuming one hole size fits every connection.

❓Are these terminals waterproof?

When correctly crimped and evenly heated, the 3:1 adhesive-lined sleeve provides insulation and a moisture-resistant seal. The finished connection must still be inspected for complete recovery and adhesive sealing at both ends.

❓What crimping tool should I use?

Use a ratcheting crimper with an insulated-terminal profile sized for the selected red, blue or yellow terminal. Do not crimp the insulation section with a bare-lug hex die.

❓What heat temperature should I use?

A universal shrink temperature is not published on this page. Use controlled hot air and follow the selected connector's packaging or technical instructions; stop as soon as the sleeve has recovered and the adhesive has sealed.

❓How to Choose the Correct Terminal

  1. Identify the conductor gauge before selecting by color: yellow for AWG 12-10, blue for AWG 16-14 and red for AWG 22-16.
  2. Measure or confirm the equipment stud size, then choose a ring opening that fits without excessive clearance.
  3. Check that the conductor strands enter the metal barrel fully and that the sleeve overlaps intact cable insulation.
  4. Select the pack quantity and assortment that match the range of repairs; do not use color alone as the final size check.

❓How to Crimp and Heat Shrink

  1. Disconnect power, cut the cable square and strip only enough insulation for the conductor to fill the terminal barrel.
  2. Insert the conductor fully, place the metal barrel in the matching insulated-terminal crimp profile and complete a firm crimp.
  3. Perform a pull test. The terminal must not slip, rotate or expose loose strands.
  4. Apply controlled hot air while rotating the connection. Heat from the crimped barrel toward the sleeve ends until the tubing recovers evenly and the adhesive forms a visible seal.
  5. Stop heating when the sleeve has fully recovered, then allow the joint to cool before installing it on the stud or restoring power.
  • Enjoy free shipping on all orders.
  • Delivery Time: 1-2 business days to The US and Canada. Delivery times may vary depending on your location and carrier conditions.
  • Details
  • Tracking: After your order is shipped, you will receive an email with a tracking number to monitor the delivery status.
  • Need Help? Contact our support team for assistance with shipping or your order.
  • 30-Day Returns
    You may request a return within 30 calendar days of delivery. Items must be unused, in their original condition, and include all original packaging and accessories.
  • Damaged, Defective, or Incorrect Items
    Contact us with your order number and photos. If the issue is due to our error, we will cover reasonable return shipping costs or provide an appropriate replacement.
  • Refunds
    Approved refunds are issued to your original payment method within 5 business days after inspection. Your bank may require additional processing time.
  • To start a return, email support@haisstronica.com with your order number and reason for return. Please obtain approval before sending anything back.
  • View Full Return & Refund Policy
Close-up of insulated wire connectors joining red, blue, and yellow wires

WELCOME TO THE HAISSTRONICA CLUB!

Subscribe for Extra 10% OFF Your First order

Learn More About Porduct

  • Live Without Limits: Don't be held back by a humble looking wire connectors. Haisstronica heat shrink connectors are made of tinned copper. The tinning process is designed to effectively prevent copper from being oxidized and reduce resistance. While higher purity copper enhances electrical conductivity.
  • Unyielding Protection: Unlike cheap, low-quality connectors, these high-quality thick 3:1 heat shrink tubing of heat shrink connectors won't puncture and break when crimping. After heating, the end penetrates enough hot melt adhesive to form a firm seal. Helps retain the wire in the connector much better than just a standard crimp style.
  • Long Term Reliability: The brazed seam with exquisite craftsmanship ensures that the wire is not easy to fall off after crimping, forming a neat and rock-solid crimp. No worries in wire connection.
  • Buyer Confidence: We stand behind the quality of our products. If for any reason you are not satisfied with your purchase, please contact us. We provide customers with quality services and a guarantee for risk-free purchases.

Material, Sealing & Safety

The published product description identifies copper terminals, polyethylene heat-shrink sleeves and hot-melt adhesive sealing with a 3:1 shrink ratio. Use a regulated heat gun rather than an open flame, keep the heat source moving and avoid overheating the insulation. A sealed sleeve improves moisture and corrosion resistance, but installation quality, cable condition and equipment requirements still determine the final connection rating.

Use the yellow AWG 12-10 terminals for compatible larger-gauge conductors in battery accessories, ground points, distribution blocks, marine and RV systems, trailer wiring and equipment repairs. The ring must sit flat on the stud and the terminal barrel must match the conductor gauge. Do not use these terminals on live circuits, on cable outside the marked AWG range or where a different terminal material or certification is required.

Haisstronica’s heat-shrink terminal rings are designed so the smallest part of your system never holds you back. Each heat shrink ring terminal uses a high-purity, tinned-copper core that resists oxidation, keeps contact surfaces clean, and lowers resistance across the ring electrical connector. Whether you’re landing a wire ring connector on a bus bar, battery post, or chassis stud, these ring wire terminals move current the way it was meant to flow.

Around that copper core, a thick 3:1 polyolefin sleeve turns every crimp into a sealed joint. After your ring terminal crimpers bite down, the tubing shrinks tight and the hot-melt adhesive floods the barrel ends, locking the wire ring terminal in place. The result is a neat, factory-style heat shrink ring connectors finish that grips better than bare crimps or open ring connectors electrical—ideal for marine ring terminals, under-hood wiring, and other high-moisture, high-vibration zones.

Inside each barrel, an expertly brazed seam keeps the lug round and strong while you crimp. That craftsmanship means the conductor strands stay captured even when the ring terminal wire is pulled, flexed, or exposed to heat cycles. From small red ring terminals sizes on sensors to heavy-duty yellow wire ring terminal connectors on starters, you get the same rock-solid mechanical bite and consistent contact on every terminal ring connector.

And because reliability is more than a spec sheet, Haisstronica backs every ring electrical connectors kit with attentive support and a risk-free guarantee. If your wire connector ring or terminal ring ever fails to meet expectations, our team is ready to help with sizing, crimping advice, or replacement—so your projects stay powered, sealed, and confident for the long term.
