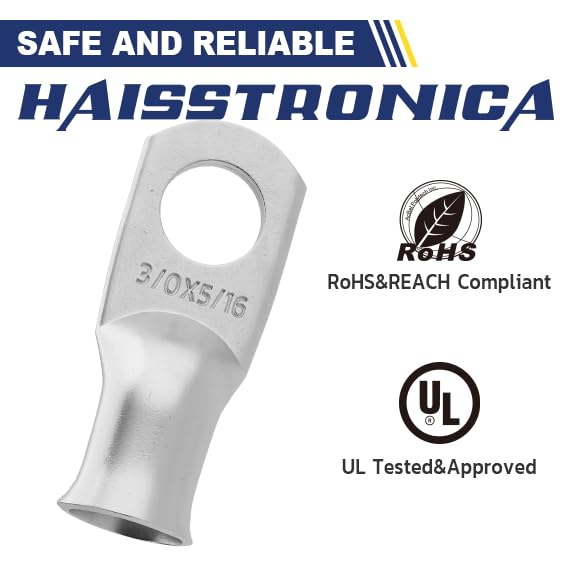

Tinned Battery Cable Lugs with 3:1 Adhesive Heat Shrink Tubing

❓What is included in one 20-piece bottle?

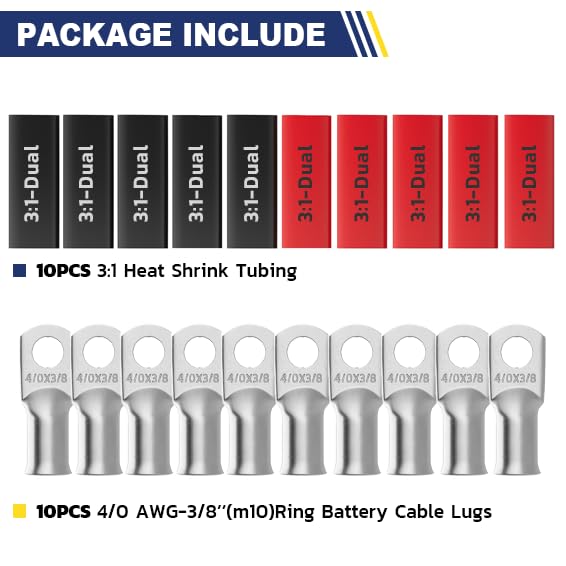

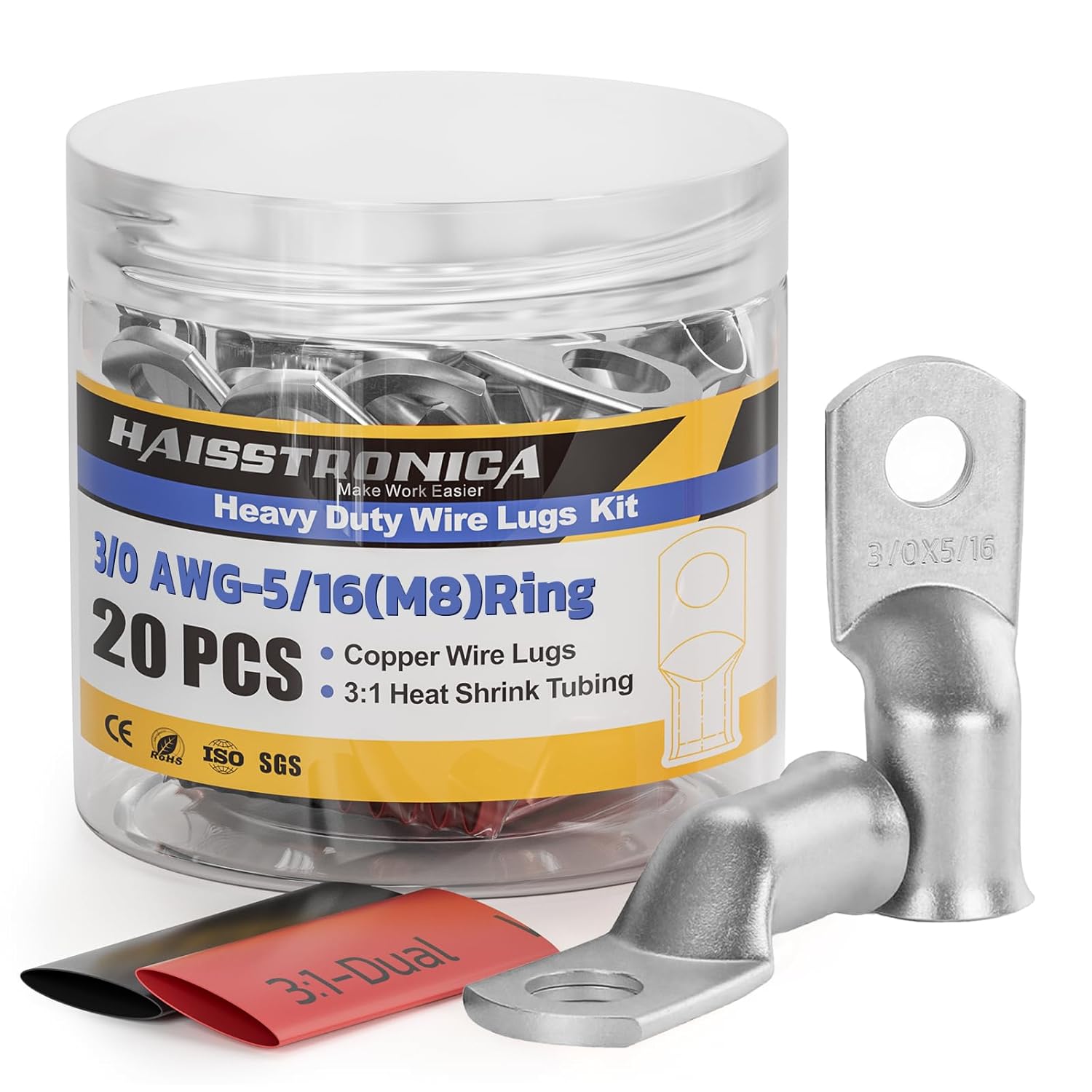

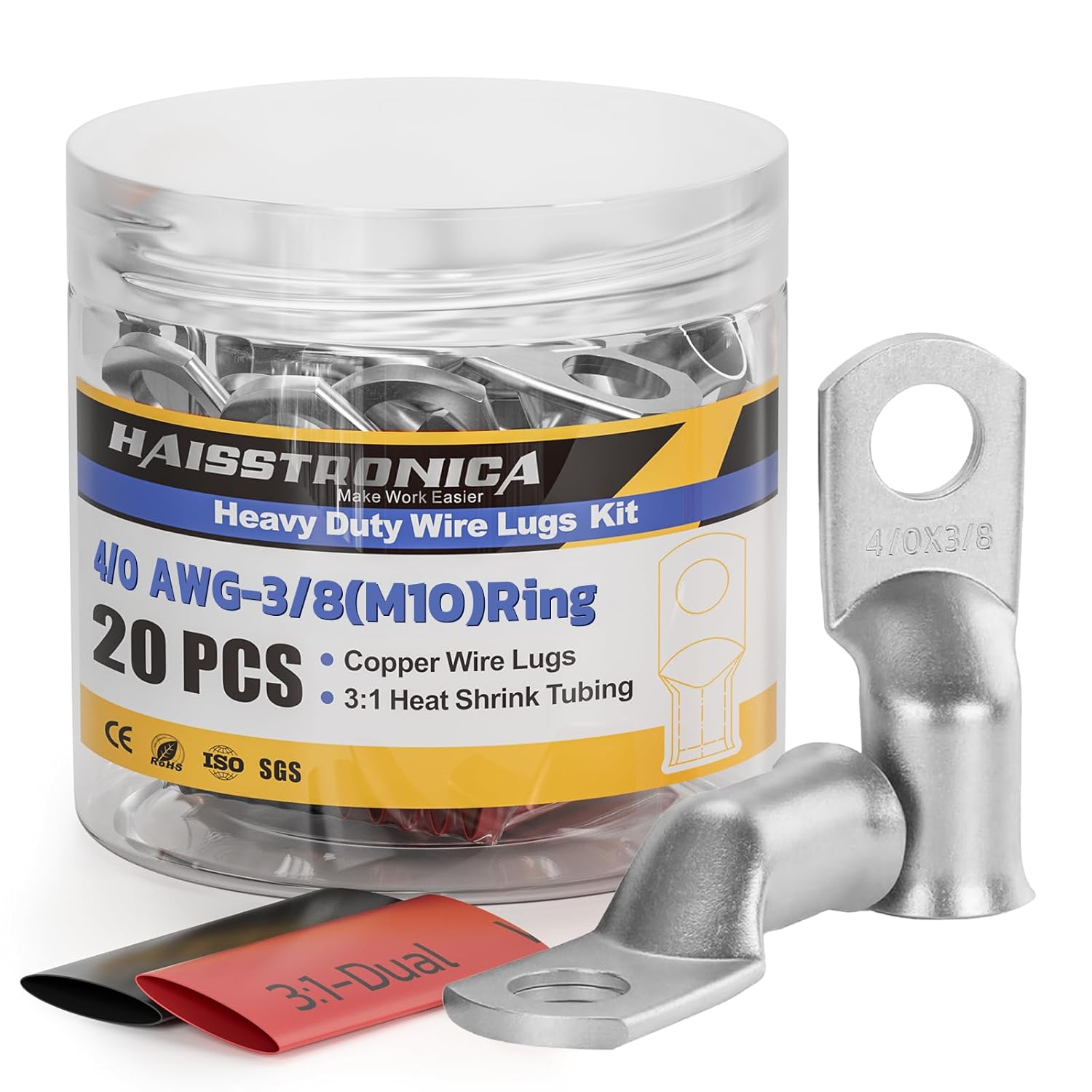

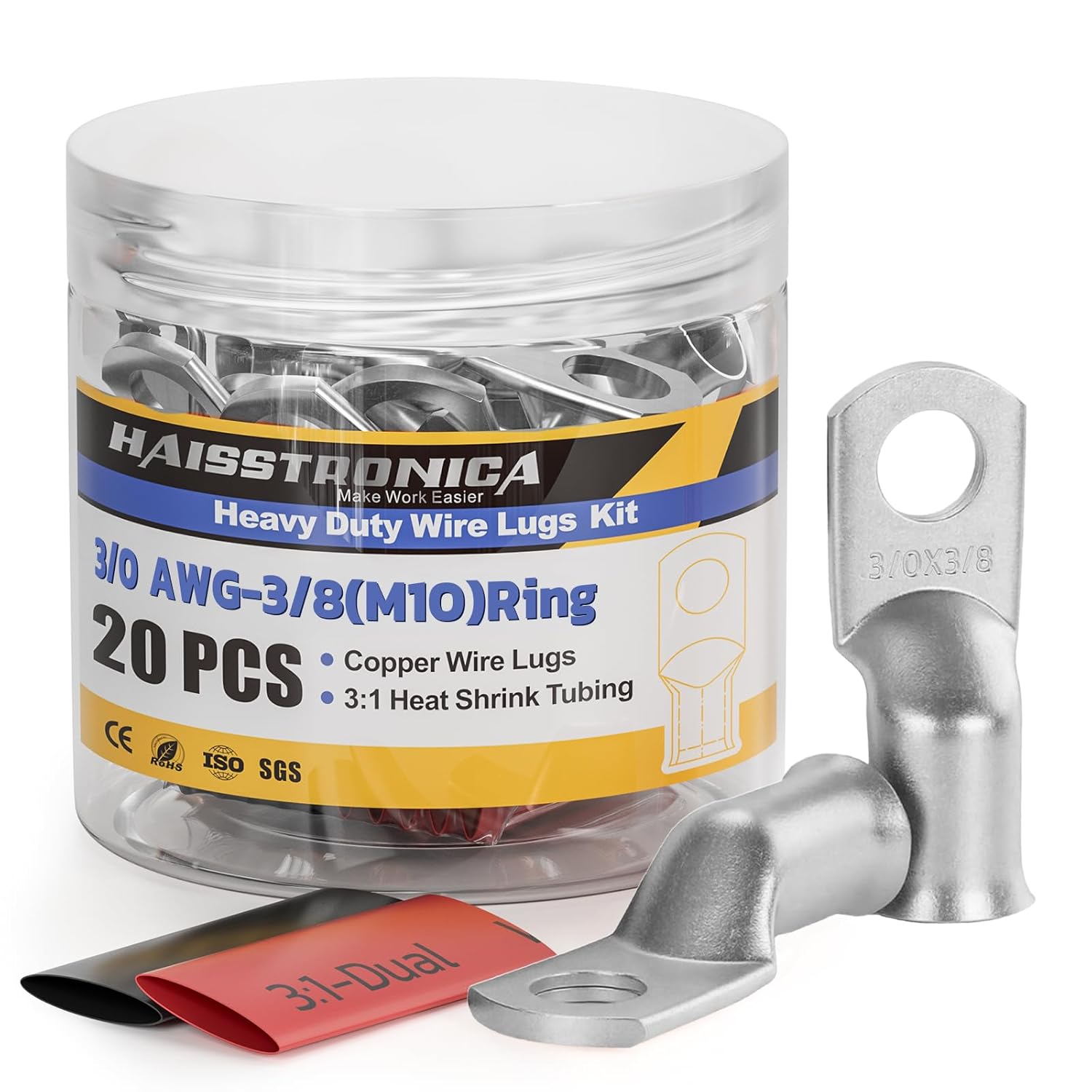

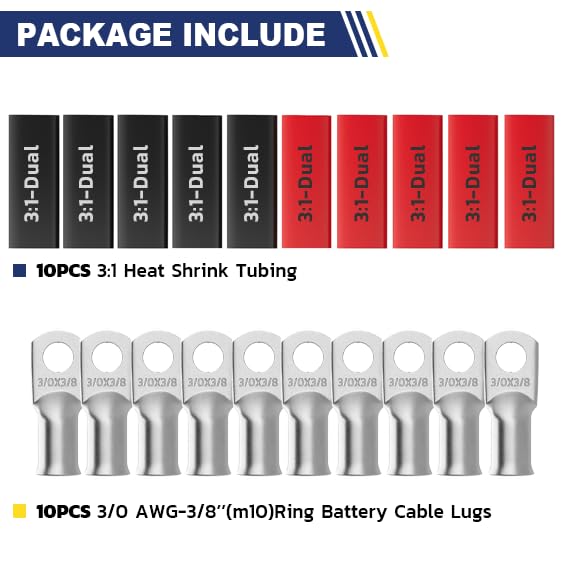

Each bottle contains 10 identical tinned battery cable lugs in the selected AWG and stud-hole size, plus 10 matched 3:1 adhesive-lined heat-shrink tubes: five red and five black.

❓How do I choose the correct AWG and stud size?

Match the lug barrel to the conductor gauge and the ring hole to the equipment stud. Both values must match; a correct AWG with an oversized or undersized stud hole is not a secure fit.

❓Why use tinned copper and adhesive-lined tubing in marine wiring?

Tin plating slows surface oxidation of the copper, and correctly recovered adhesive-lined tubing helps block moisture and contaminants at the crimp. The connection still needs proper installation and inspection for the operating environment.

❓Can these cable lugs be crimped with ordinary pliers?

No. Use a cable-lug crimper and a die matched to the selected AWG. Ordinary pliers cannot create the controlled compression needed for a reliable high-current termination.

❓How to Choose

1. Confirm the conductor gauge from the cable marking or a wire-size gauge; do not select by outer insulation diameter.

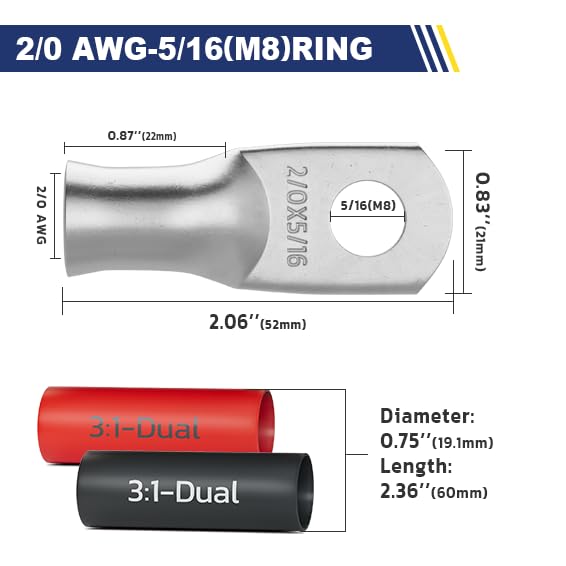

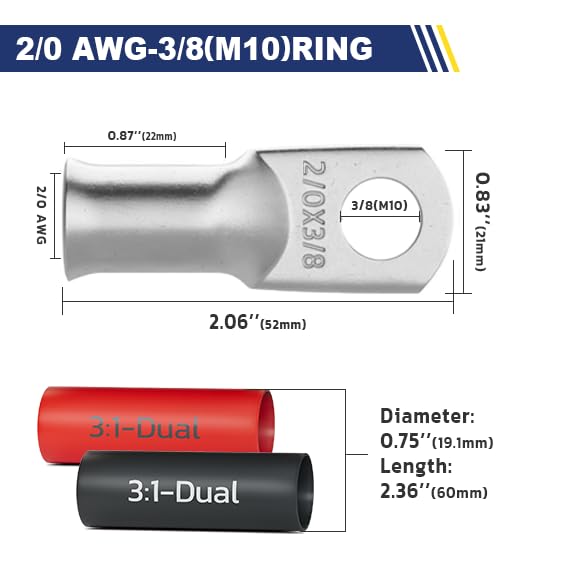

2. Measure the equipment bolt or stud and choose the matching #10, 1/4-, 5/16-, 3/8- or 1/2-inch hole offered for that AWG.
3. Confirm the crimper covers the selected gauge and that the included tubing can slide over the crimped barrel before heating.

❓How to Crimp and Seal

1. Disconnect power. Cut the cable square, slide the heat-shrink tube onto the cable and strip only enough insulation for the conductor to fill the lug barrel.
2. Insert the conductor fully and crimp with a cable-lug die matched to the AWG size. Perform a firm pull test.
3. Center the adhesive-lined tubing over the barrel and cable insulation. Heat evenly with a heat gun until the tubing fully recovers and adhesive appears at the edges; allow it to cool before reconnecting power.
