Waterproof connectors are critical for projects exposed to moisture, dust, or vibration (e.g., automotive wiring, marine electronics, or outdoor installations). A poorly crimped connector can lead to corrosion, short circuits, or equipment failure. Follow this step-by-step guide to achieve professional-grade seals every time.
Everything needed for one waterproof crimp
Before cutting wire, identify where the splice will operate and read the AWG printed on the insulation. Then match the connector, stripping tool, crimper, and controlled heat source.
Heat Shrink Butt Connector Kit
Adhesive-lined, color-coded connectors for AWG 26–10 inline splices.
Choose connector size →Ratchet Crimper
Completes a repeatable crimp cycle using the matched AWG position.
Shop ratchet crimper →
Mini Heat Gun
Applies controlled, even heat so the sleeve recovers and adhesive seals both ends.
Shop mini heat gun →
Self-Adjusting Wire Stripper
Helps produce a clean strip without nicking or cutting conductor strands.
Shop wire stripper →Tools & Materials Needed
- Waterproof Connectors: Choose the right size for your wire gauge (common types: butt splices, ring terminals).
- Crimping Tool: A ratcheting crimper with adjustable dies (e.g., HAISSTRONICA’s military-grade tool).
- Heat-Shrink Tubing: Select tubing with an adhesive liner for a waterproof seal.
- Wire Strippers: Precision stripping to avoid damaging wire strands.
- Soldering Iron (Optional): Adds extra strength for stranded wires.
- Multimeter: Test conductivity post-crimping.
👉 Trust Haisstronica Electrical Crimp Heat Shrink Butt Connectors AWG 22-10 when you need heat shrink electrical connectors done right.
Step-by-Step Crimping Process
1. Prepare the Wire
- Strip Insulation: Cut 1/4"–1/2" of insulation with a wire stripper, ensuring no nicks on the wire strands.
- Tin Stranded Wires (Optional): Apply a small amount of solder to the stripped end for better conductivity and strain relief.
2. Insert Wire into Connector
- Slide the wire into the connector until the stripped portion is fully seated.
- For heat-shrink connectors, ensure the tubing covers the entire connection point.
3. Crimp the Connector
- Position the Crimper: Align the connector’s crimp barrel with the ratchet crimper’s heat-shrink die (check manufacturer guidelines).
- Apply Pressure: Squeeze the crimper firmly in one smooth motion. Avoid over-crimping, which can damage the wire.
- Inspect the Crimp: The barrel should compress tightly around the wire without gaps.
4. Apply Heat-Shrink Tubing
- Slide the tubing over the crimped area.
- Use a Mini Heat Gun 350W to shrink the tubing evenly, ensuring full coverage of the connection.
5. Test the Connection
- Use a multimeter to verify continuity and resistance.
- Tug gently on the wire to confirm mechanical strength.
👉 For crimping butt connectors, pick Haisstronica Electrical Crimp Heat Shrink Butt Connectors AWG 22-10 and finish strong.
Common Mistakes to Avoid
- Wrong Connector Size: Causes poor contact or wire damage.
- Insufficient Heat Application: Leaves gaps in heat-shrink tubing.
- Skipping Wire Preparation: Dirt or frayed strands reduce conductivity.
Pro Tips for Success
- Use Color-Coded Connectors: Simplify troubleshooting (e.g., red for positive, black for negative).
- Label Connections: Prevent confusion in complex setups.
- Store Connectors Properly: Keep them in a dry, airtight container when not in use.

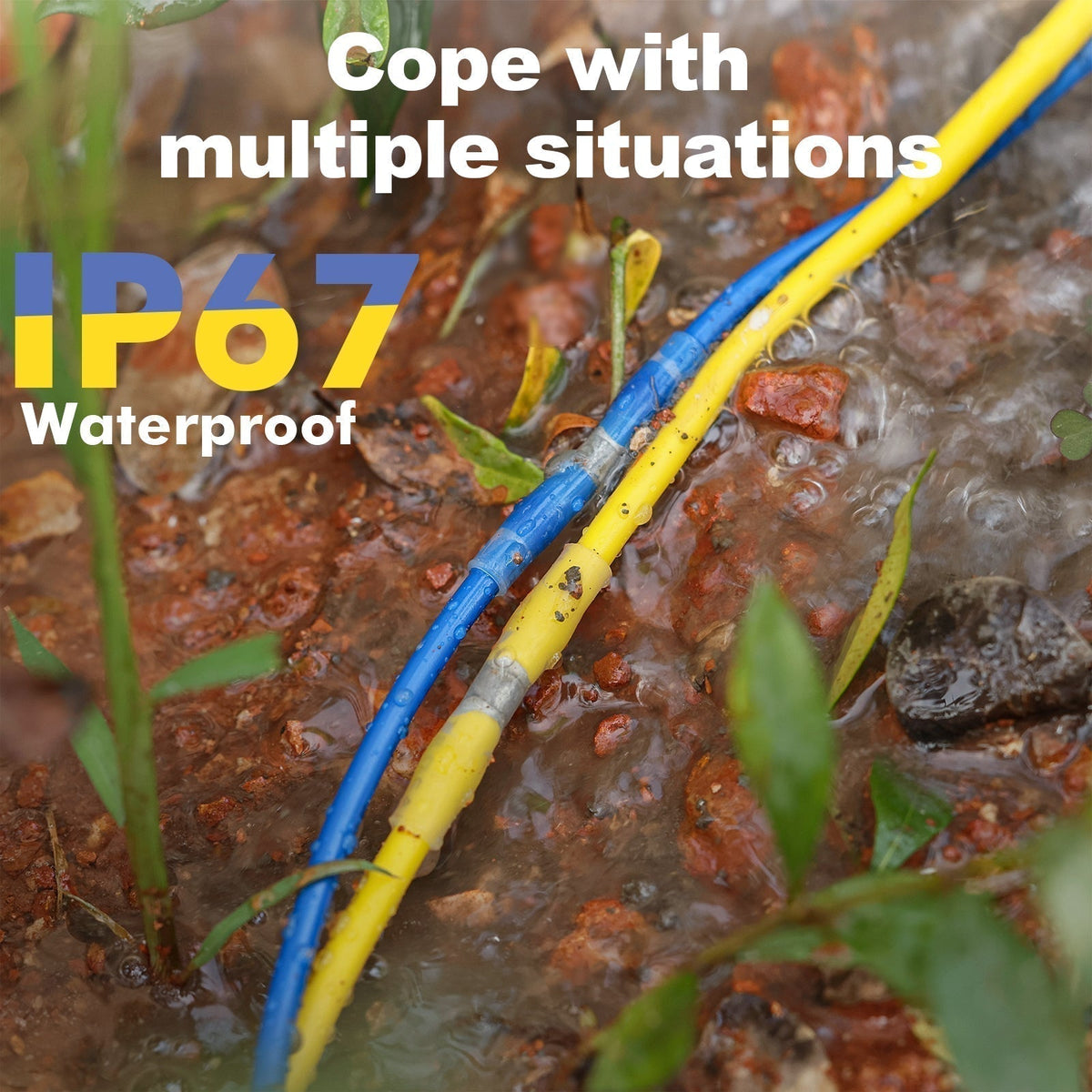

When to Use Waterproof Connectors
- Outdoor Projects: Exposed to rain, snow, or UV light.
- Marine Environments: Saltwater exposure requires corrosion-resistant seals.
- High-Vibration Areas: Vehicles, machinery, or robotics.
FAQs
Q: Can I reuse waterproof connectors?
A: No. Once crimped, the connector deforms permanently and loses its sealing integrity.
Q: Do I need a heat gun for heat-shrink tubing?
A: Yes. A hair dryer may not generate enough heat for a proper seal.
Q: What wire gauge works best with waterproof connectors?
A: Most kits support 10–22 AWG wires. Check product specifications for compatibility.
Conclusion
Waterproof connectors are a small investment that pays off in reliability and safety. By following this guide—and using high-quality tools like HAISSTRONICA’s Waterproof Crimping Kit—you’ll eliminate downtime and ensure long-lasting performance.
